Hubbell Dual-Lite N4X Series Installation Instructions

VOLTAGE DROP TABLE
Total
Watts 6 Volt System Wire Gauge
on Wire
Run #12 #10
Max. Length of Wire Run (Feet)
6 94 150
7 81 129
8 70 112
10 56 90
12 44 70
14 40 64
16 33 53
18 30 47
20 28 45
21 27 43
24 24 38
25 21 34
30 19 30
35 15 25
40 13 21
48 11 17
50 11 17
75 7 11
100 5 8
125 4 7
150 3 5
175 3 5
200 2 4
225 2 4
250 2 3
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
©
Total
Watts 12 Volt System Wire Gauge
on Wire
#8 #6 Run #12 #10 #8 #6
Max. Length of Wire Run (Feet)
238 379 6 378 600 955 1518
204 325 7 324 515 818 1301
179 284
8 283 450 716 1138
143 227 10 226 360 570 910
112 178 12 178 283 450 715
102 162 14 162 257 409 650
84 134 16 133 212 338 538
75 119 18 119 189 300 477
71 114 20 113 180 286 455
68 108 21 108 171 273 434
60 95 24 89 141 225 357
54 86
25 86 136 216 344
48 76 30 75 120 190 303
39 63
35 65 103 164 260
33 53 40 53 85 135 214
28 44 48 44 70 112 178
27 43 50 43 68 108 172
18 29 75 28 45 72 115
14 21 100 21 34 54 86
11 17 125 17 27 43 69
9 14
150 14 23 36 57
8 12 175 12 19 31 49
6 10
200 10 16 27 42
6 10 225 10 16 25 40
5 9 250 9 14 22 36
When using electrical equipment, basic safety precautions should always be followed including the
following.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
Do not use outdoors.
1.
Do not mount near heaters or hot surfaces.
2.
Equipment should be mounted in locations and at heights where it will not readily be subject to
3.
tampering by unauthorized personnel.
The use of accessory equipment not authorized by the manufacturer may cause an unsafe
4.
condition.
Caution: Halogen cycle lamps may be used in this equipment. Halogen cycle lamps operate at
high temperatures. Do not store or place flammable materials near lamp. To avoid shattering:
Do not operate lamp in excess of rated voltage. Protect lamp against abrasion and scratches
and against liquids when operating. Dispose of lamp with care.
Do not use this equipment for other than its intended purpose.
5.
6. Servicing of this equipment should be performed by qualified service personnel.
0603121 A 5/08

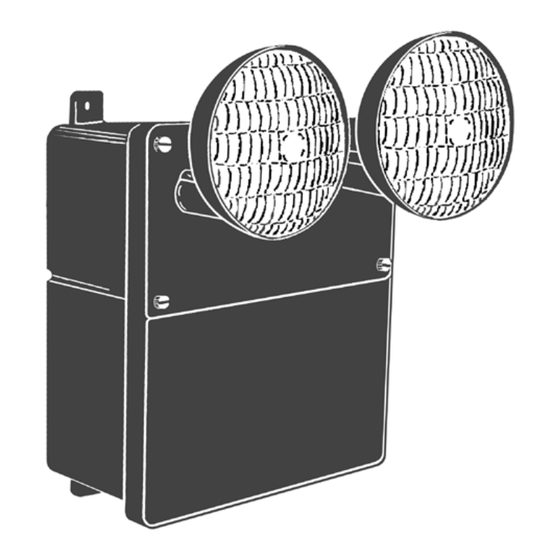

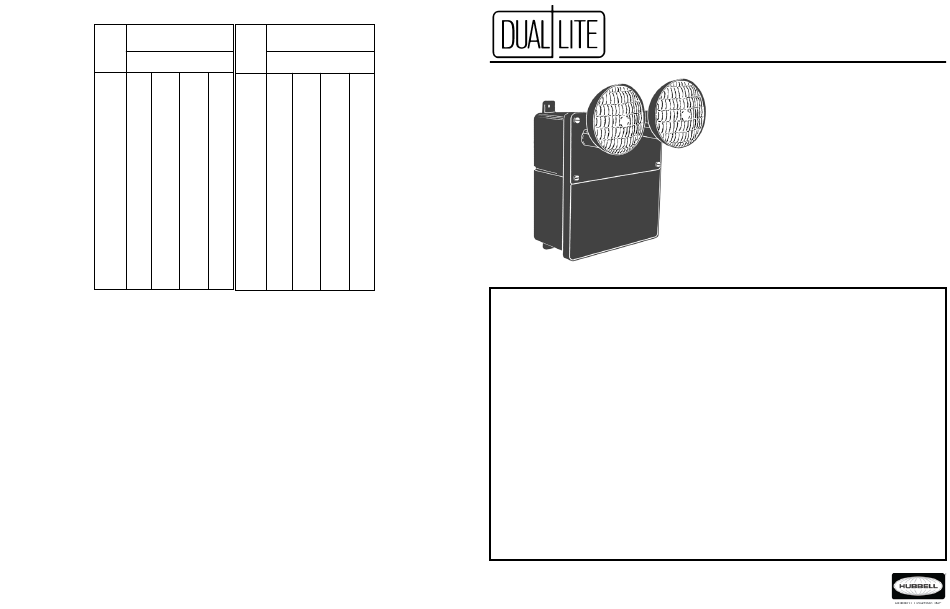

High-Capacity Emergency Lighting Units
For Harsh-Environment Application

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS
N4X Series
Installation Instructions
