Venstar ACC-FP1xx Installation Instructions

1
.

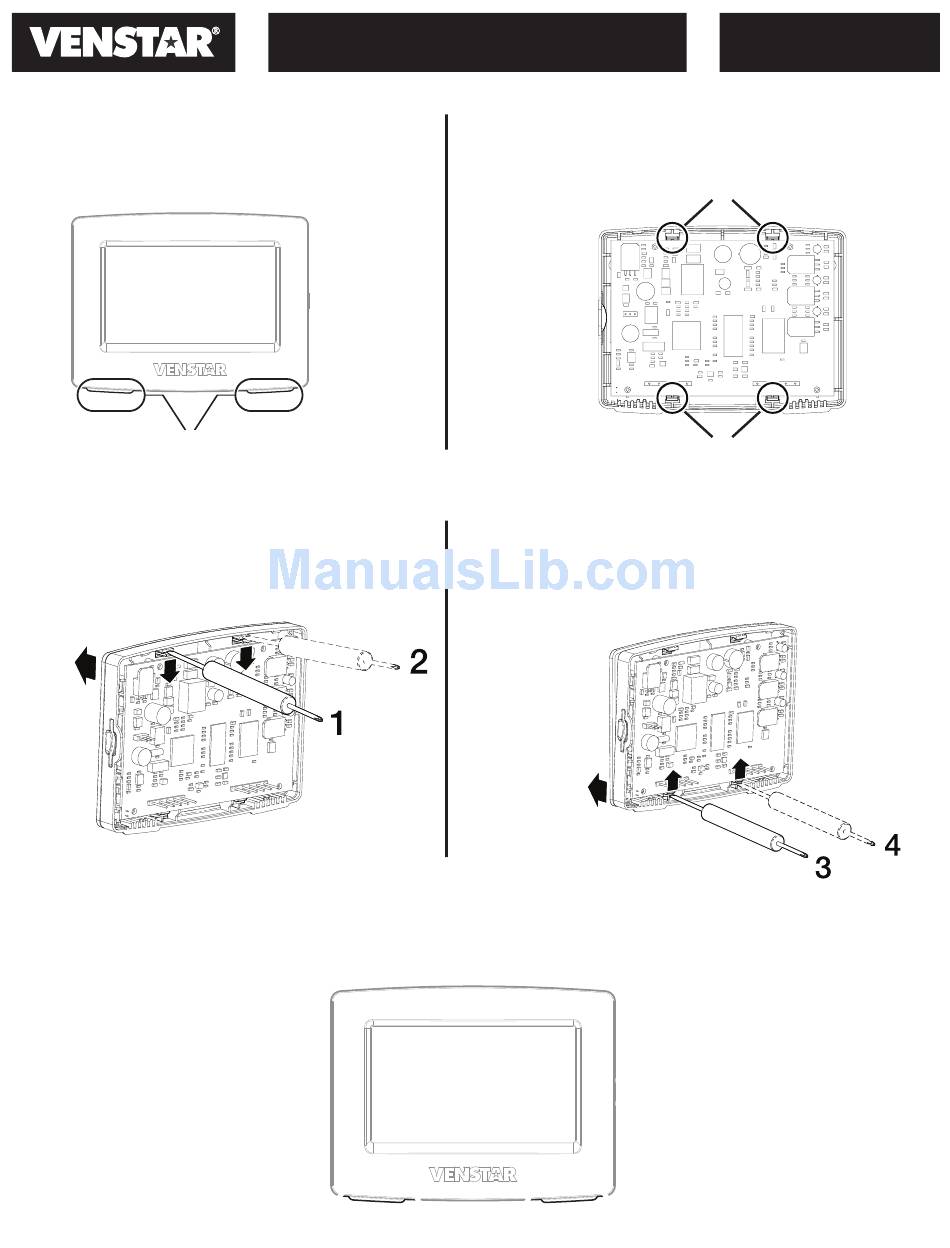

Remove the thermostat backplate.
Using the Finger Pull Areas, pull the
front housing away from the backplate.
Look for these tabs to locate the pull areas
3
. Using fingers or a screwdriver, pry
the top set of faceplate catches loose
and PUSH the faceplate forward slightly.
5
. PUSH the new faceplate onto the front of the thermostat housing until all 4 catches
are firmly in place. PUSH the thermostat housing back onto the thermostat backplate.
©Venstar Inc. 11/2010
ColorTouch Faceplate
Installation Instructions
2
.
Note the location of the 4 catches that
hold the faceplate in place.
4
. After the top set of catches are loose, pry
the bottom set of catches loose and PUSH
the faceplate forward to detatch it from the
front housing.
MODEL ACC-FP1xx
Top Faceplate Catches
Bottom Faceplate Catches
P/N 88-872 Rev. 1
