THE WIRELESS REMOTE SENSOR SYSTEM IS MADE UP OF ONE RECEIVER AND AT LEAST ONE
WIRELESS SENSOR.
Up to 8 Wireless Sensors may be used with 1 Receiver (Unit ID# 0 - 7).
The Receiver automatically averages the temperatures from up to 8
Wireless Sensors on the same House Code and reports the average to
the thermostat.
The Receiver will only 'listen' to Wireless Sensors with the same House
Code as the Receiver, and will 'ignore' sensors with different House
Codes than the Receiver.
If more than 1 Wireless Sensor is used with 1 Receiver, then all Sensors
and the Receiver must have the same House Code for proper operation.
If more than 1 Wireless Sensor is used with 1 Receiver, then each
Sensor must have a different Unit ID.
SUGGESTED USES FOR ONE WIRELESS REMOTE SENSOR:
To report the outdoor temperature when using a compatible residential
thermostat. It is recommended to attach the Wireless Sensor to a north-
facing wall where it will not be in direct sunlight or the spray of sprinklers.
To report the temperature of a room, such as that of a baby's room when
using a compatible residential thermostat.
To control to or read to the temperature at the return duct when using a
compatible commercial thermostat.
To control the temperature in a space that is different from where a
compatible commercial thermostat is located.
SUGGESTED USES FOR MULTIPLE WIRELESS REMOTE SENSORS:
To control to the average of multiple Wireless Sensors in a large open
space using a compatible Commercial thermostat. This type of
application would include large, open office areas.

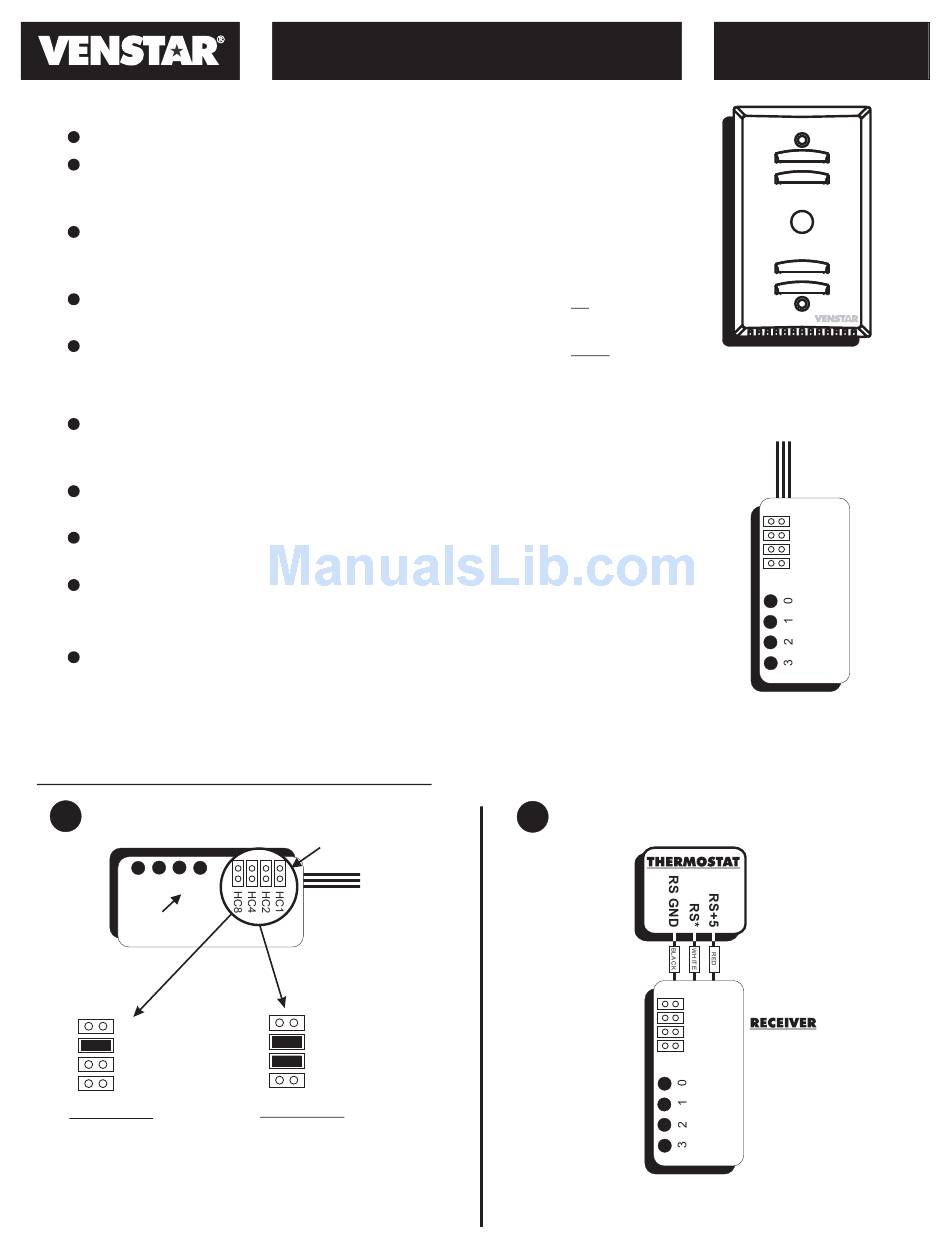

Receiver Setup & Installation
1
Set the House Code jumpers on the Receiver
3
2
1
0
LED's
A
HC1
HC2
HC4
HC8
Example A
House Code
ID = 2
©Venstar Inc. 3/08 - Patent Pending
WIRELESS REMOTE SENSOR
Jumper
Location
B
HC1
HC2
HC4
HC8
Example B
House Code
ID = 6
(2 + 4 = 6)
2
Connect the Receiver to the thermostat
The Receiver is
put inside the
wall behind the
thermostat.
MODEL
ACC0414REC
WIRELESS REMOTE SENSOR
with Override button
MODEL ACC0414RF
HC1
HC2
HC4
HC8
RECEIVER
MODEL ACC0414REC
HC1
HC2
HC4
HC8
*Consult your thermostat
installation manual for
the correct name of this
terminal.
P/N 88-689
Rev. 2
