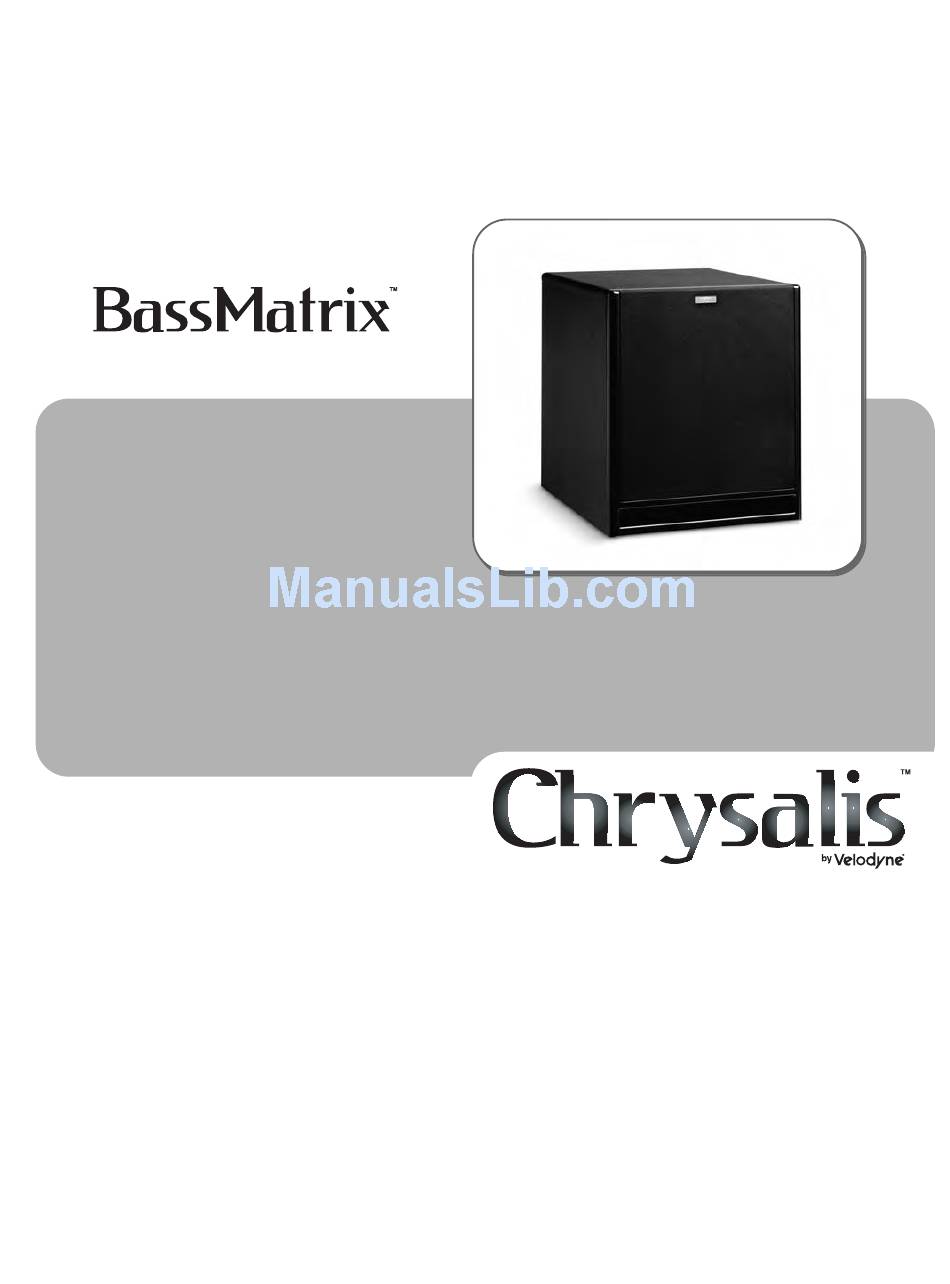

  • Page 1 S E R I E S BASSMATRIX-10 10-Inch Powered Subwoofer BASSMATRIX-12 12-Inch Powered Subwoofer w w w . c h r y s a l i s a c o u s t i c s . c o m...
  • Page 2 BassMatrix Series Manual...

  • Page 3: Table Of Contents

    w w w . c h r y s a l i s a c o u s t i c s . c o m A B L E O F O N T E N T S Congratulations ....................1 Installation .

  • Page 4: Congratulations

    w w w . c h r y s a l i s a c o u s t i c s . c o m O N G R A T U L A T I O N S Congratulations on your purchase of a Chrysalis BassMatrix™...

  • Page 5: Installation

    w w w . c h r y s a l i s a c o u s t i c s . c o m P l a c e m e n t The first step in installing your new BassMatrix is to determine where it will be placed in the room. Unpack the system carefully and use the following guidelines in order to find the best room placement option.

  • Page 6: Rear Panel Connections

    w w w . c h r y s a l i s a c o u s t i c s . c o m Figure 1. BassMatrix Rear Panel Connections E A R A N E L O N N E C T I O N S Figure 1 shows the connections on the rear panel of the BassMatrix.

  • Page 7: Rear Panel Connections - Detailed Explanations

    w w w . c h r y s a l i s a c o u s t i c s . c o m (3) AUTO ON/OFF Switch Use this switch to select between auto-on (active) and constant on (inactive) operation. (4) LINE OUTPUT Connect these jacks to the LINE IN of the power amp or receiver input to use the BassMatrix internal high pass crossover.
  • Page 8 w w w . c h r y s a l i s a c o u s t i c s . c o m S u b w o o f e r D i r e c t Subwoofer Direct is a setting on the low-pass crossover knob and will allow frequencies up to 200 Hz into the subwoofer.

  • Page 9: Interconnect Cables

    w w w . c h r y s a l i s a c o u s t i c s . c o m N T E R C O N N E C T A B L E S When installing your new Chrysalis subwoofer using the line-level connections, you should always use shielded phono cables.

  • Page 10: Usage

    w w w . c h r y s a l i s a c o u s t i c s . c o m S A G E This section addresses day-to-day usage of your BassMatrix subwoofer. R e m o t e C o n t r o l Figure 2 shows the remote control, enabling you to easily choose whatever listening mode you desire.
  • Page 11 w w w . c h r y s a l i s a c o u s t i c s . c o m P H A S E - These buttons allow you to optimize the subwoofer performance for the location and your listening position. Select the switch position at which you hear the most bass.
  • Page 12 w w w . c h r y s a l i s a c o u s t i c s . c o m The following table indicates musical style and which preset is recommended for it. MUSICAL STYLE SUGGESTED PRESET Action Adventure Movies Movies...
  • Page 13 w w w . c h r y s a l i s a c o u s t i c s . c o m Each preset has its own characteristics with respect to subsonic filter, volume differential and a single equalizer (EQ) in order to optimize the listening mode for the preset.

  • Page 14: Care Of Your Subwoofer

    w w w . c h r y s a l i s a c o u s t i c s . c o m A R E O F O U R U B W O O F E R Your Chrysalis subwoofer does not require any regular maintenance.

  • Page 15: Specifications

    w w w . c h r y s a l i s a c o u s t i c s . c o m P E C I F I C A T I O N S MODEL BASSMATRIX-10 BASSMATRIX-12 Woofer...

  • Page 16: Chrysalis Products

    w w w . c h r y s a l i s a c o u s t i c s . c o m H R Y S A L I S R O D U C T S BassMatrix™...
  • Page 17 w w w . c h r y s a l i s a c o u s t i c s . c o m F O R Y O U R R E C O R D S . . . Date Purchased____________________________________________________________________________ Dealer__________________________________________________________________________________ Serial #_________________________________________________________________________________...
  • Page 18 C h r y s a l i s A c o u s t i c s A Velodyne Company 345 Digital Drive Morgan Hill, CA 95037 408.465.2888 voice 408.779.9227 fax 408.779.9208 service fax w w w . c h r y s a l i s a c o u s t i c s . c o m Service E-mail: service@chrysalisacoustics.com...
