Summary of Contents for Velodyne Impact-10

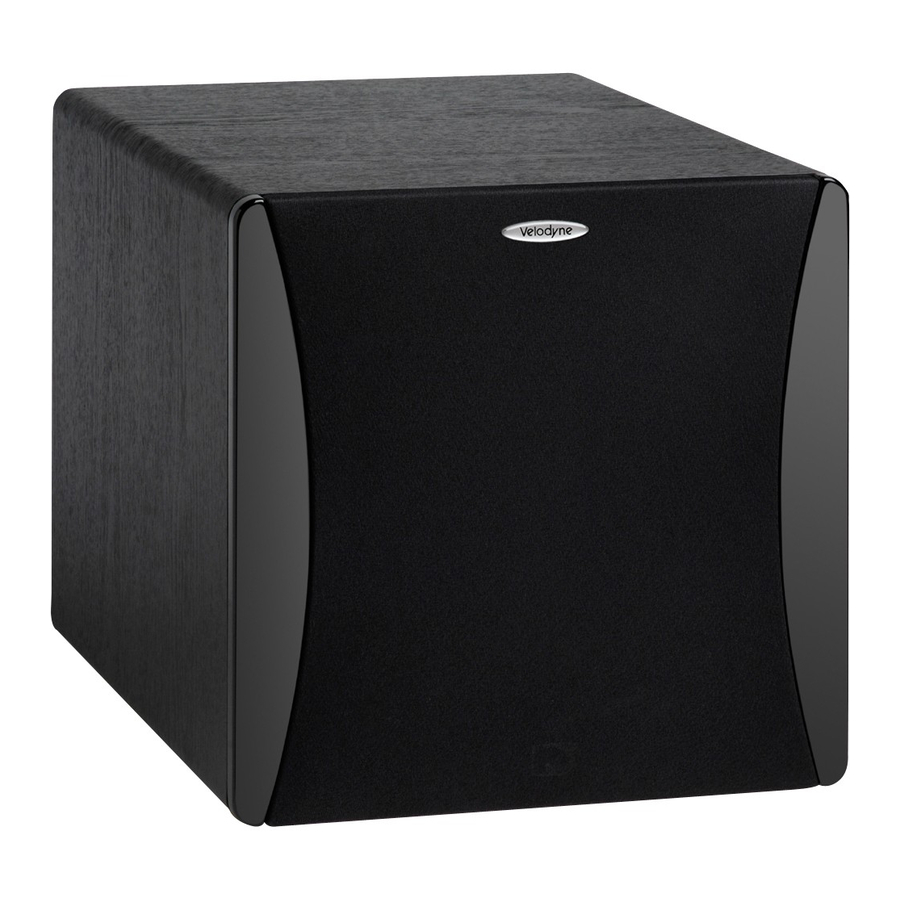

- Page 1 USER’S MANUAL SERIES Home Theater Subwoofers Serpentine Oblique font Impact-10 Impact-12 Impact-Mini...
- Page 2 Enjoy. Thank you for choosing a Velodyne. Our passion for high performance, low-distortion bass is the driving force behind our worldwide reputation in audio and technical innovation. We are pleased to bring the Velodyne sound experience to your home.
- Page 3 Impact Series User’s Manual - i...
-
Page 5: Table Of Contents
Velodyne Products ........ -
Page 7: Congratulations
To prevent fire or shock hazard, do not expose this equipment to rain or moisture. To avoid electrical shock, do not open speaker enclosure or amp chassis cover. Please observe all warnings on the equipment itself. There are no user serviceable parts inside. Please refer all service questions to your authorized Velodyne dealer. Prior to Installation: Please unpack the system carefully. -
Page 8: Installation
The worst location for a subwoofer is typically far away from any walls and close to the center of your room. Avoid these locations when possible. When using a pair of Velodyne subwoofers in 2-channel stereo, it is preferable to feed each subwoofer with one channel and place each subwoofer near the satellite of the same channel. - Page 9 Refer to your receiver manual for the individual channel level adjustment procedure. If your receiver Sub-Out channel is set too low, the subwoofer may appear to have a weak output, it may sound noisy or distorted, and the Auto On/Off feature may not operate properly. www.velodyne.com Impaact Series User’s Manual - 3...
- Page 10 If the Sub-Out channel signal level from your receiver is too weak, this feature will not operate properly and shut the subwoofer off while you are listening to it. To correct this, see VOLUME CONTROL section on previous page. 4 - Impact Series User’s Manual www.velodyne.com...
-
Page 11: Rear Panel Connections
(3) SPEAKER LEVEL INPUT terminals - connect these input terminals to thecspeaker output terminals of your amplifier or receiver. (4) PHASE switch - Select the switch position at which you hear a loudermid-bass sound. www.velodyne.com Impaact Series User’s Manual - 5... -
Page 12: Crossovers
In some installations, it may be beneficial to use BOTH the Velodyne crossover and the receiver/processor crossover, resulting in a steeper ultimate crossover slope. In some rare cases, combining both an external crossover and the one internal to the subwoofer may result in low output and increased noise. - Page 13 SUBWOOFER OUTPUT JACK FRONT AMPLIFIER REAR Figure 2a. Line-Level Subwoofer Connection Diagram www.velodyne.com Impaact Series User’s Manual - 7...
- Page 14 SUBWOOFER OUTPUT JACK REAR AMPLIFIER FRONT FRONT LEFT SPEAKER FRONT RIGHT SPEAKER Figure 2b. Speaker-Level Subwoofer Connection Diagram 8 - Impact Series User’s Manual www.velodyne.com...
-
Page 15: Interconnect Cables
INTERCONNECT CABLES when installing your new Velodyne subwoofer using the line level connections, you should always use shielded phono cables. There are many high quality cables available today. It is recommended that you keep the length of cable as short as possible to avoid any potential noise problems. -
Page 16: Troubleshooting And Service
2. The unit does not appear to operate normally or exhibits a marked change in performance. 3. The unit has been exposed to water. 4. Some part of the cabinet or circuitry is physically damaged. Thank You for Purchasing a Velodyne Impact Series Subwoofer! 10 - Impact Series User’s Manual www.velodyne.com... -
Page 17: Specifications
SPECIFICATIONS Model IMPACT -Mini IMPACT-10 IMPACT-12 Woofer 6.5” (16.5 cm) active 10” (24.5 cm) forward firing 10” 12” (30.5 cm) foward firing (5” piston diameter) & 8” (20.3 cm) (24.5 cm) forward firing (9.7” piston diameter) passive (6.5” piston diameter) (8.2”... -
Page 18: Velodyne Products
VELODYNE PRODUCTS 115-120V Impact Series Subcontractor Series Series ™ ® Sc-1250 dd-10 Impact-Mini Sc-8 dd-12 Impact-10 Sc-10 dd-15 Impact-12 Sc-12 dd-18 Sc-15 digital drive 1812 Signature edition MicroVee Sc-Iw SC-IF/IC deQ-R Series MiniVee ® deQ-8R ™ deQ-10R deQ-12R MiniVee ®... -
Page 19: For Your Records
PRODUCT MODEL: PRODUCT SERIAL NUMBER: NOTE: If you need to file a warranty claim for your product, you will still need to submit to Velodyne the original sales invoice or other proof of ownership and date of purchase. Please validate your product warranty by completing the warranty registration online within 30 days at: velodyne.com/warranty-subwoofers... - Page 20 SERIES Impact-Series_RevD_MAY2012 Serpentine Oblique font Velodyne Acoustics, Inc. 408.465.2800 voice Service E-mail: service@velodyne.com 345 digital drive 408.779.9227 fax Product E-mail: help@velodyne.com Morgan Hill, CA 95037 408.779.9208 service fax Technical E-mail: techhelp@velodyne.com www.velodyne.com...
