Velodyne SubContractor SC-600 IF User Manual
(in-floor/in-ceiling) subwoofer subcontractor series
Hide thumbs
Also See for SubContractor SC-600 IF:
- User manual (29 pages) ,
- Installation manual (13 pages) ,
- Brochure & specs (4 pages)
Related Manuals for Velodyne SubContractor SC-600 IF
Summary of Contents for Velodyne SubContractor SC-600 IF

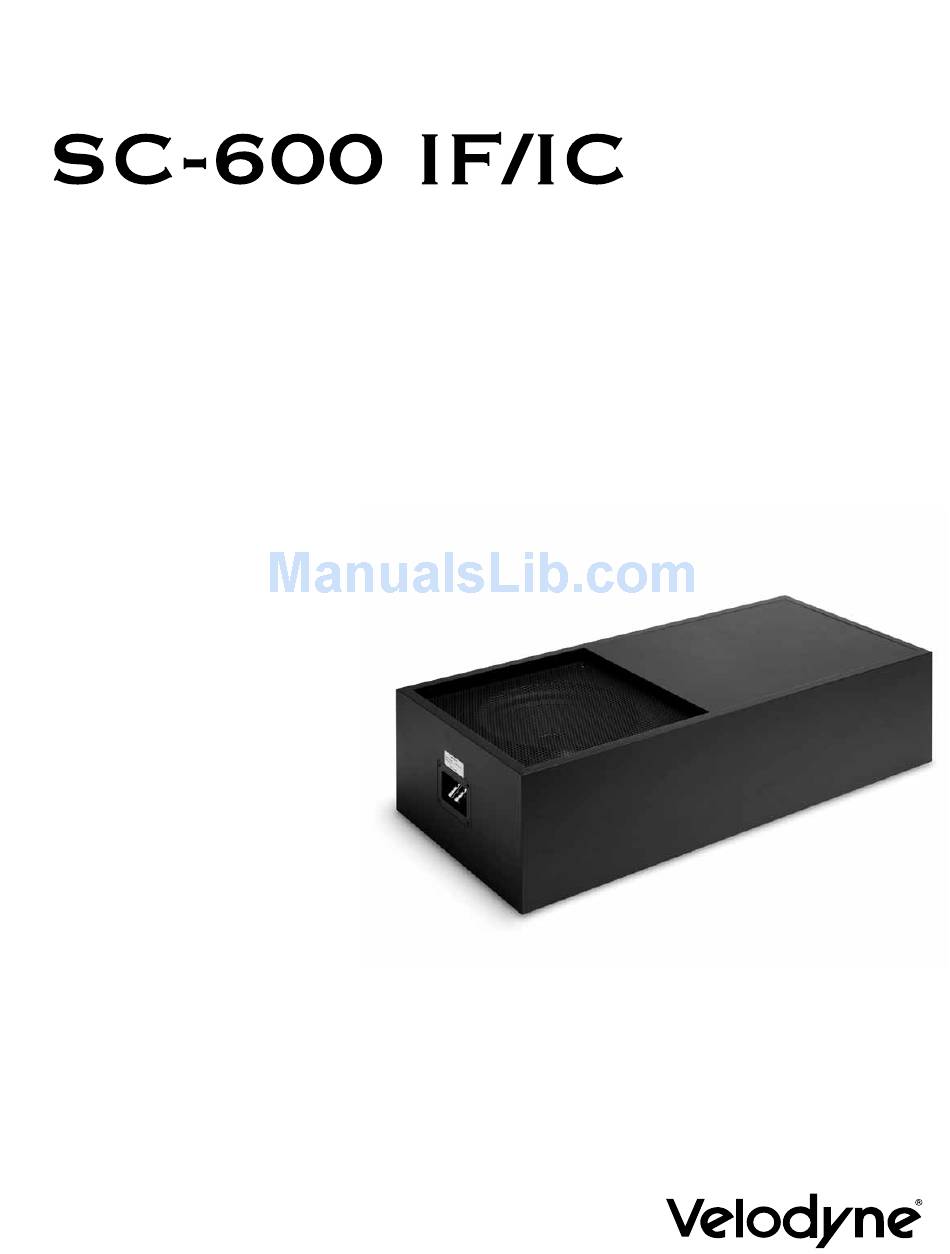

- Page 1 USER’S MANUAL (In-Floor/In-Ceiling) Subwoofer SubContractor Series...
- Page 2 Enjoy. Thank you for choosing a Velodyne. Our passion for high performance, low-distortion bass is the driving force behind our worldwide reputation in audio and technical innovation. We are pleased to bring the Velodyne sound experience to your home.
- Page 3 SC-600 IF/IC User’s Manual - i...
- Page 5 Velodyne Products ........
-
Page 7: Product Overview
PROdUCT OVERViEW Congratulations on your purchase of a Velodyne Impact subwoofer system. This system represents the state- of-tThe SC-600 IF/IC is an affordable in-ceiling or in-floor subwoofer that offers outstanding performance and value. The SC-600 IF/IC sports a powerful 12” driver and slot-loaded, bass reflex cabinet enabling maximum performance to reproduce the most demanding home theater and music with authority, accuracy and low distortion. - Page 8 Make sure the speaker terminals are facing the direction you intend to run the speaker wire. Figure 1: Mark bracket locations with a pencil. Note: The brackets can be attached anywhere on the SC-600 iF/iC cabinet. 2 -SC-600 IF/IC User’s Manual www.velodyne.com...
- Page 9 CABINET WILL COME INTO CONTACT WITH THE STRUCTURE IN ANY WAY.The SC-600 IF/IC is a powerful subwoofer and will likely buzz or rattle if not isolated from the structure using the provided foam strips. Figure 2: Affix foam strips. www.velodyne.com SC-600 IF/IC User’s Manual - 3...
- Page 10 CAUTION: The SC-600 IF/IC is heavy. Either use a partner to suspend the subwoofer while you are attaching it or use a mechanical device to hold it in place during installation.Figure 2: Affix foam strips. Figure 3: SC-600 IF (In-Floor) positioned into floor location. 4 -SC-600 IF/IC User’s Manual www.velodyne.com...
- Page 11 Step 7 - IAdjust bracket position and tighten. Position the subwoofer into its final location and tighten the brackets. Figure 4: Tighten the brackets. www.velodyne.com SC-600 IF/IC User’s Manual - 5...
- Page 12 A 16 AWG or heavier wire is recommended. Be sure to secure the speaker wire so it does not rattle or buzz against the cabinet during use. Figure 5a, 5b, and 5c: Speaker wire connection. 6 -SC-600 IF/IC User’s Manual www.velodyne.com...
- Page 13 SC-600 IF/IC. In the latter case, track down the rattle and secure it with caulking or other similar material www.velodyne.com SC-600 IF/IC User’s Manual - 7...
-
Page 14: For Your Records
PRODUCT MODEL: PRODUCT SERIAL NUMBER: NOTE: If you need to file a warranty claim for your product, you will still need to submit to Velodyne the original sales invoice or other proof of ownership and date of purchase. Please validate your product warranty by completing the warranty registration online within 30 days at: velodyne.com/warranty-subwoofers... - Page 15 VELOdyNE PROdUCTS 120V SubContractor Series Series Impact Series ™ ® SC-1250 dd-10 Impact - Mini SC-8 dd-12 Impact -10 SC-10 dd-15 Impact -12 SC-12 dd-18 SC-15 digital drive 1812 Signature edition MicroVee ® SC-Iw SC-IF/IC DEQ-R Series SC-600 Amp MiniVee DEQ-8R ®...
- Page 16 SC-600-IF/IC-RevA_MAY2012 Velodyne Acoustics, inc. 408.465.2800 voice Service E-mail: service@velodyne.com 345 Digital Drive 408.779.9227 fax Product E-mail: help@velodyne.com Morgan Hill, CA 95037 408.779.9208 service fax Technical E-mail: techhelp@velodyne.com www.velodyne.com...
