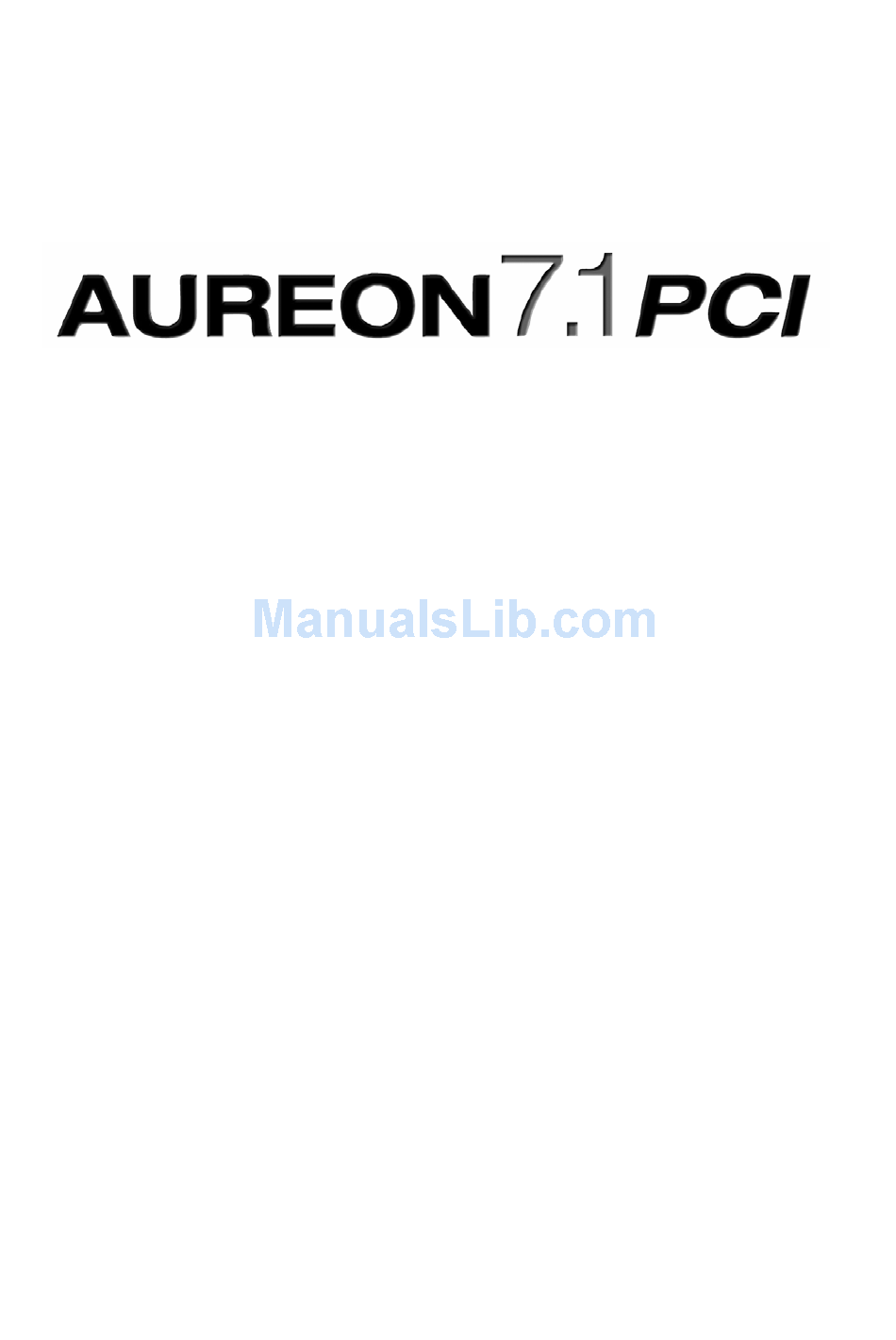

  • Page 1 Manual (English) Version: 2/14/2006...
  • Page 2 CE Declaration TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany hereby declare that the product: SoundSystem Aureon 7.1 PCI to which this declaration refers is in compliance with the following standards or standardizing documents: 1. EN 55022 2. EN 50082-1 The following are the stipulated operating and environmental conditions for said compliance: residential, business and commercial environments and small-company environments.

  • Page 3: Table Of Contents

    Layout of the card ........................4 Hardware installation.......................5 Installing the card.........................5 Connecting a speaker system to your sound card ..............7 Installing the drivers and Control Panel................... 8 The Aureon 7.1 PCI Control Panel ..................9 Support ..........................14 SoundSystem Aureon 7.1 PCI (English)

  • Page 4: Layout Of The Card

    6. Line output 4 (rear effects speakers) 7. Digital input S/PDIF (Toslink) 8. Digital output S/PDIF (Toslink) 9. Joystick/MIDI port 10. Line input (CD) 11. Line input (AUX) JP1 – function of line output 1 SoundSystem Aureon 7.1 PCI (English)

  • Page 5: Hardware Installation

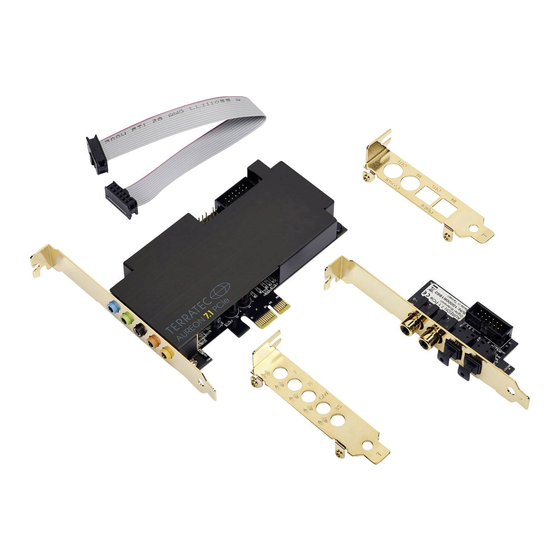

    Start by making sure that nothing is missing. The package should contain at least the follow- ing items: 1 PCI sound card TerraTec SoundSystem Aureon 7.1 PCI 1 slot plate adapter for the joystick/MIDI port 1 installation and driver CD 1 registration card with the product serial number 1 customer service card.
  • Page 6 To ensure the optimal function of your Aureon 7.1 PCI, look for an expansion slot that is not immediately next to an already-installed card. Some cards, such as graphics cards, can send out signals that can interfere with the sound card.

  • Page 7: Connecting A Speaker System To Your Sound Card

    Connecting a speaker system to your sound card You can connect any commercially available active speaker system to your Aureon 7.1 PCI sound card. Ensure that the front port (3) is configured as “Line” using JP1. After installing the drivers and software, select the correct speaker configuration in the Aureon 7.1 PCI Control Panel.

  • Page 8: Installing The Drivers And Control Panel

    <CD>:\Software\TerraTec. Simply follow the instructions on the screen. In the following dialog box, Windows XP will inform you that the “Aureon 7.1 PCI” driver did not pass the “Windows Logo test”. Click “Continue”. Conclude the installation by clicking “Fin- ish”.

  • Page 9: The Aureon 7.1 Pci Control Panel

    The Aureon 7.1 PCI Control Panel Master You can adjust the volume of each individual speaker here. If they didn't exist only on your computer screen, the faders marked “Front” would probably become worn from frequent use– they are used to the adjust the volume of the two front speakers.
  • Page 10 If you click on a speaker to activate it, you will hear static from that speaker. The “DirectSound Acceleration” fader should always be set to “max” if the computer is work- ing without any problems. SoundSystem Aureon 7.1 PCI (English)
  • Page 11 This button causes the digital input to be looped through to the digital output. Monitor This loops the signal from the digital output to the analog output. Signal Reverse Switches on signal reverse for the digital input. SoundSystem Aureon 7.1 PCI (English)
  • Page 12 Add – Save them as a new preset Save – Save them to the selected preset You can delete the setups you have defined by clicking “Delete”. If you have accidentally overwritten a default preset, you can click “Restore” to restore it. SoundSystem Aureon 7.1 PCI (English)
  • Page 13 Have fun trying out the soundsets Misc. Presets You can save the settings configured in the control panel as profiles and load the profiles. Color setup You can set the colors of the control panel to your taste here. SoundSystem Aureon 7.1 PCI (English)

  • Page 14: Support

    This window shows the driver and control panel version installed on your computer. Support For more information on the TerraTec hotline, our online forums and Internet presence, please refer to the included customer service card. SoundSystem Aureon 7.1 PCI (English)
