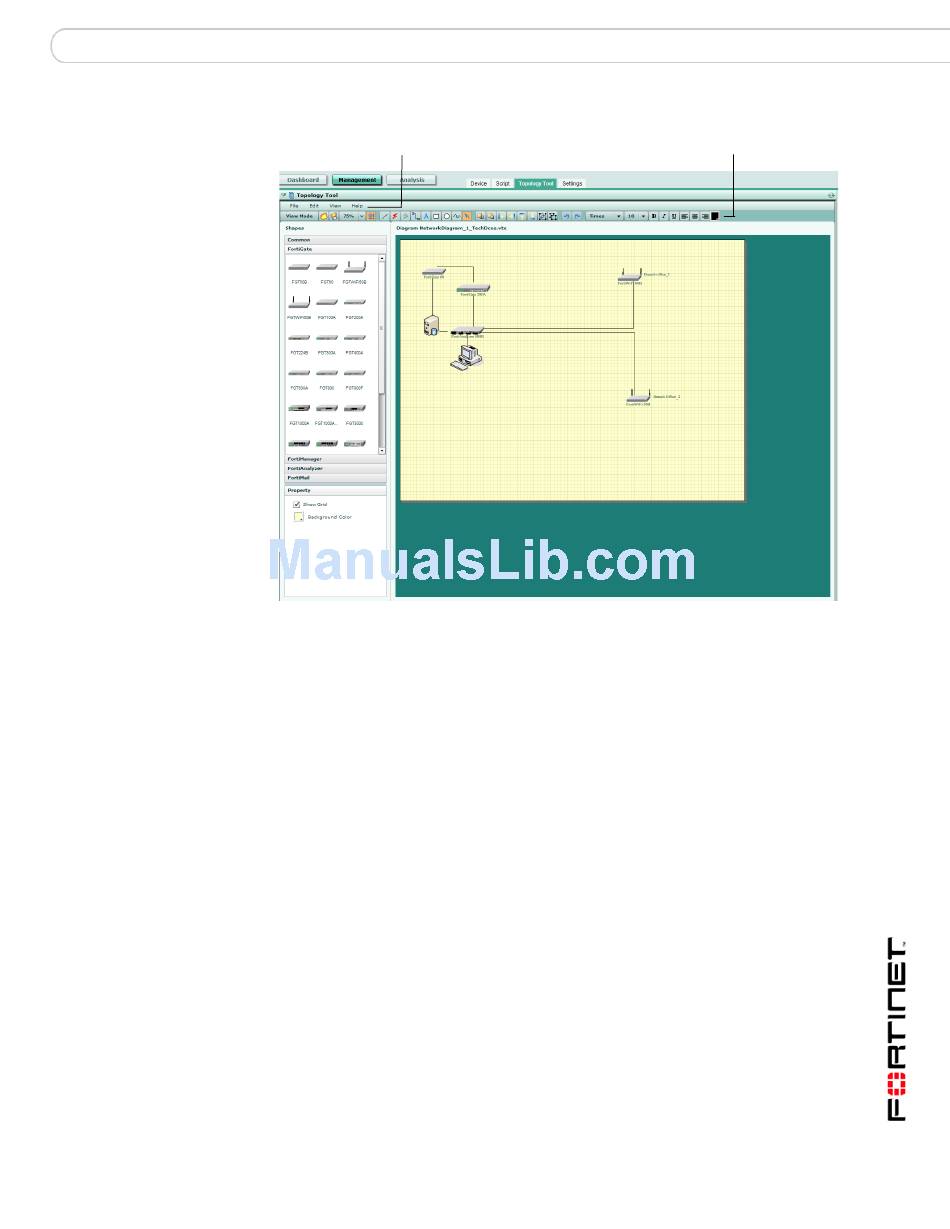

Figure 25: Network diagram in Edit mode
Topology Tool section menus
Within the Topology Tool section, additional menus allow you to access network
diagrams and customize the view. These additional menus differ between View
mode and Edit mode, but you can access them the same way. For example, to
open a saved network diagram, go to File > Open.
View Mode menus
File
View
Help
Edit Mode menus
Contains the following menus:
• Open
• Close
Contains the following menus:
• Zoom In
• Zoom Out
• Hide Grid
• Edit Mode
Contains the About menu. This displays
the firmware version of the Topology
Tool.
