Dashboard

Configuring the Trap Console

FortiGuard Analysis and Management Service Version 1.2.0 Administration Guide
13-12000-406-20081031

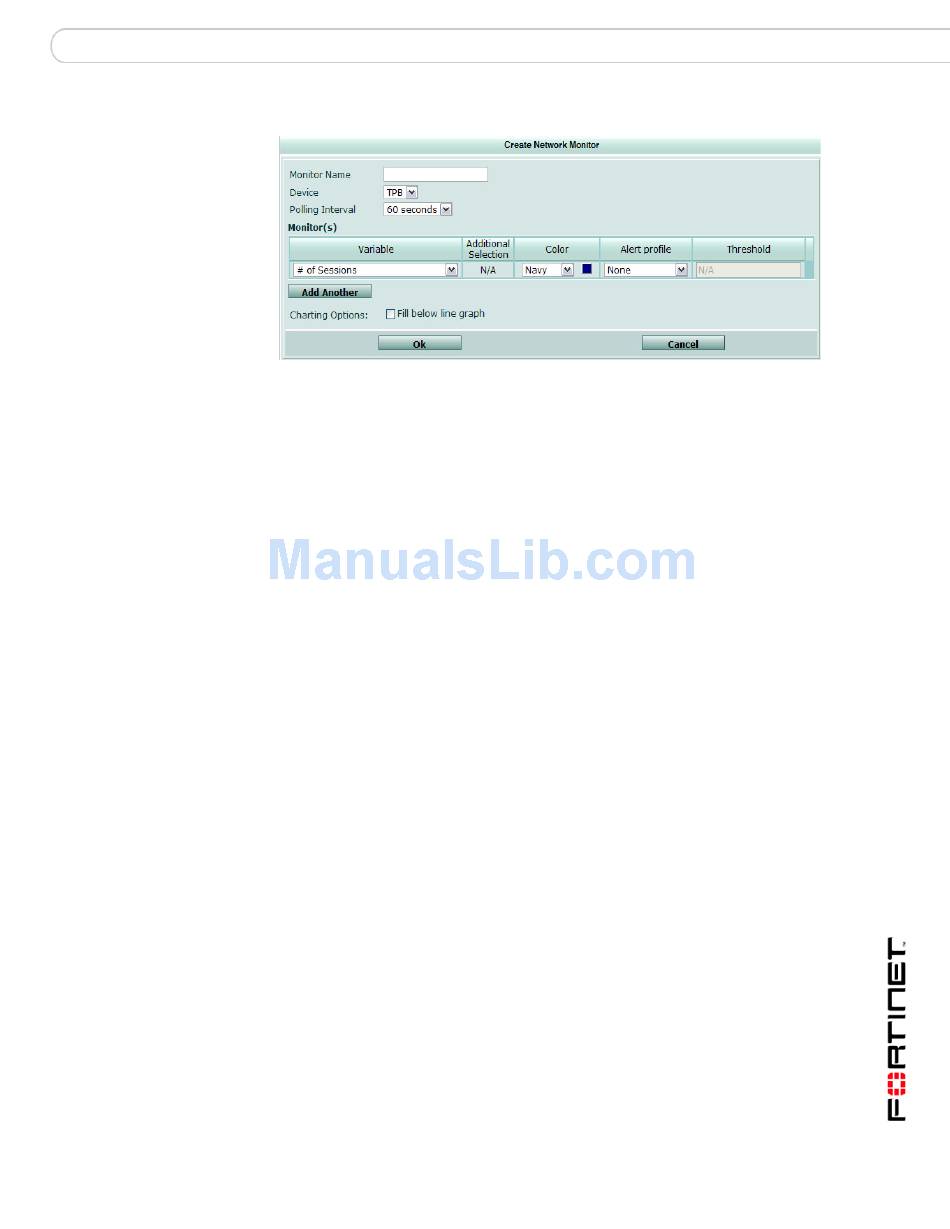

Figure 13: Network Monitor
Monitor Name Enter the name of the network monitor (for example,
Network_Monitor_Headquarters).
Device Select the device that the information is gathered from.
Polling Interval Select how often the server will poll the device to receive information,
in intervals of 60 seconds, 2 minutes, or 5 minutes.
Monitor(s) Select the monitors to include in this widget, with the following options
to specify what each will contain:
Variable
Additional Selection Depending on the monitor selected, you can
Color
Alert profile
Threshold
Add Another Select to add multiple monitors to the list.
Charting Options Select the check box if you want the line in the graph to fill in below
the line.
OK Select to save the settings (current session only).
Note: You must select Customize > Save Settings from the
Dashboard if you want your settings to be saved permanently.
•
The Trap Console provides information about SNMP traps. The Trap Console
provides monitor or alert information, helping you to determine what trap you need
to monitor.
The type of variable or monitor that is
available in the list.
also select the type of interface (for example,
external).
The color that will appear for that variable.
You can select a color from either the list or
the color block.
When you select the color block, the Color
Palette appears; select a color and then
select OK to apply it to the variable.
Select the alert profile to use for that variable.
For more information about alert profiles, see
"Configuring an alert profile" on page
Enter the threshold (maximum) number for
the variable.
Configuring widgets
55.
29
