Parts

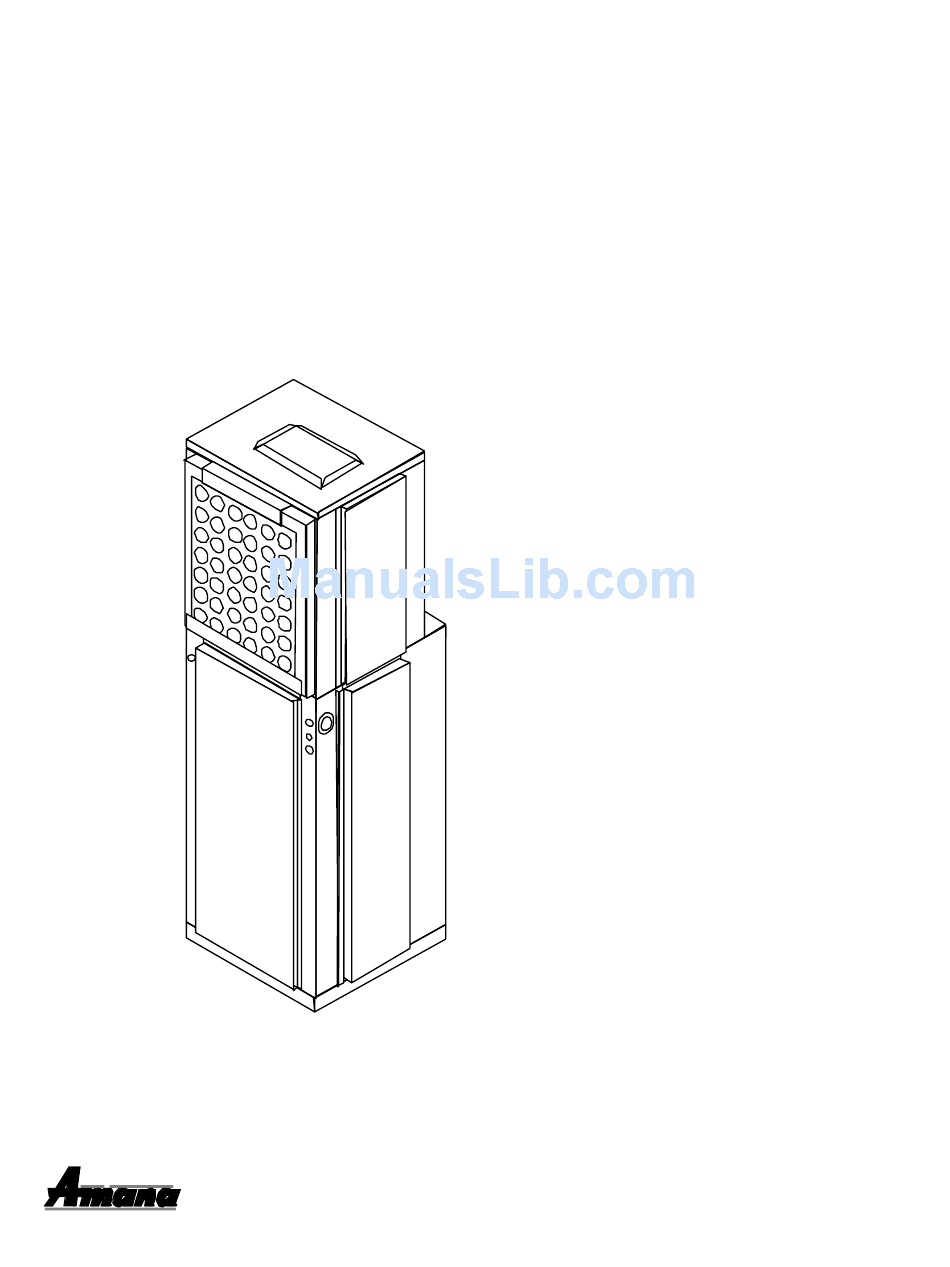

Vertical Package Terminal Air
Conditioner Cooling Units
This manual is to be used by qualified appliance
technicians only. Amana does not assume any
responsibility for property damage or personal
injury for improper service procedures
performed by an unqualified person.
Heating
&Air Conditioning
®
Comfort. Quality. Trust.
Models and manufacturing
numbers in this manual
VTC123A00AA
P1233605R
VTC123A02AA
P1233606R
VTC123A03AA
P1233607R
VTC123A04AA
P1233608R
VTC123A05AA
P1233609R
VTC183A00AA
P1233610R
VTC183A02AA
P1233611R
VTC183A03AA
P1233612R
VTC183A04AA
P1233613R
VTC183A05AA
P1233614R
VTC183A06AA
P1233615R
VTC183A08AA
P1233616R
VTC183A10AA
P1233617R
RP4271001 (1)
Revision 0
July 2001
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amana VTC123A00AA P1233605R
Summary of Contents for Amana VTC123A00AA P1233605R
- Page 1 VTC183A08AA P1233616R VTC183A10AA P1233617R This manual is to be used by qualified appliance technicians only. Amana does not assume any responsibility for property damage or personal injury for improper service procedures performed by an unqualified person. RP4271001 (1) Revision 0 Heating &Air Conditioning...
- Page 2 Important Information Amana is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs. Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Amana also recommends contacting an authorized technician and using authorized factory parts.
- Page 3 Index Functional Parts List ....................Illustration and Parts ....................6 - 13 Views shown are for parts illustrations only, not servicing procedures. Text Codes: AR - As Required NA - Not Available NS - Not Shown 00000000 - See Note QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1) M - Model Example (M1) (If M Code not shown, then part is used on all Models)
- Page 4 RP4271001 (1) Rev.
-
Page 5: Functional Parts
Functional Parts Part Description: RF000048 CAPACITOR 30/5 MF 370V (M6, M7, M8, M9, M10, M11, M12, M13) RF000048 CAPACITOR 30/5 MF 370V (M1, M2, M3, M4, M5) RF000049 CAPACITOR 5 MF 370V (M1, M2, M3, M4, M5) RF000083 COMPRESSOR (M1, M2, M3, M4, M5) RF000106 COMPRESSOR (M6, M7, M8, M9, M10, M11, M12, M13) RF000104... - Page 6 12 SPU Control PULL DISCONNECT RP4271001 (1) Rev.
-
Page 7: Control Board
12 SPU Control Ref. Part Ref. Part Description: Description: Image 1: RF000043 CONTROL BOARD RF000044 FUSE RF000045 FUSE BLOCK RF000046 GROUNDING LUG RF000047 DISCONNECT SWITCH RF000048 CAPACITOR 30/5 MF 370V (M1, M2, M3, M4, M5) RF000049 CAPACITOR 5 MF 370V (M1, M2, M3, M4, M5) RF000050 LOW AMBIENT SWITCH Expanded Model and Color Nomenclature... - Page 8 18 SPU Control PULL DISCONNECT RP4271001 (1) Rev.
-
Page 9: Low Ambient Switch
18 SPU Control Ref. Part Ref. Part Description: Description: Image 1: RF000043 CONTROL BOARD RF000044 FUSE RF000045 FUSE BLOCK RF000046 GROUNDING LUG RF000047 DISCONNECT SWITCH RF000048 CAPACITOR 30/5 MF 370V (M6, M7, M8, M9, M10, M11, M12, M13) RF000050 LOW AMBIENT SWITCH Expanded Model and Color Nomenclature M1 - VTC123A00AA P1233605R... - Page 10 12 SPU Exploded View (51) 61 RP4271001 (1) Rev.
- Page 11 12 SPU Exploded View Ref. Part Ref. Part Description: Description: Image 1: RF000064 TOP PANEL (M1, M2, M3, M4, M5) RF000065 EVAP BAFFLE (M1, M2, M3, M4, M5) RF000066 FRONT R. CORNER POST RF000067 FRONT L. CORNER POST RF000068 REAR R. CORNER POST RF000069 REAR L.
- Page 12 18 SPU Exploded View (51) 61 RP4271001 (1) Rev.
- Page 13 18 SPU Exploded View Ref. Part Ref. Part Description: Description: Image 1: RF000102 TOP PANEL (M6, M7, M8, M9, M10, M11, M12, M13) RF000066 FRONT R. CORNER POST RF000067 FRONT L. CORNER POST RF000068 REAR R. CORNER POST RF000069 REAR L. CORNER POST RF000070 REAR VERTICAL PANEL RF000071...
