Gr64001; Figure 2: Gs64 Power Management Block Diagram; Figure 3: Gr64001 Power Management Block Diagram - Wavecom Gx64 Application Note

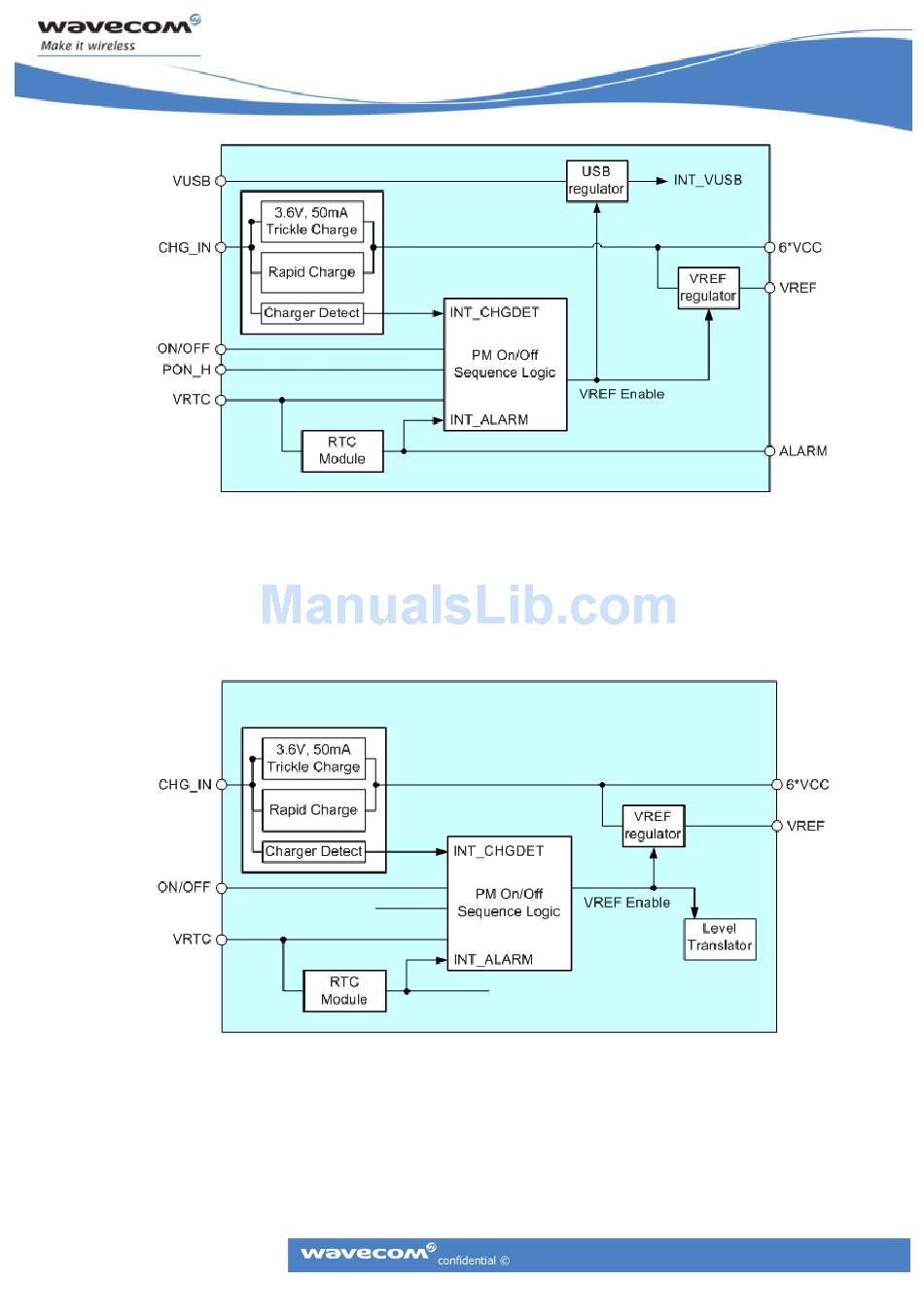

Figure 2: GS64 Power Management Block Diagram

2.2.2

GR64001

This variant of GR64 only implements two PSC-options, ON/OFF and CHG_IN.

Figure 3: GR64001 Power Management Block Diagram

The "PM ON/OFF Sequence Logic" block diagram can be found in Figure 5.
Gx64 APPLICATION NOTE
Power Management
Page: 9/30
