Block Diagrams; System Power Management Block Diagram; Figure 1: System Block Diagram - Wavecom Gx64 Application Note

2

Block Diagrams

2.1

System Power Management Block Diagram

The GR/GS64 Wireless CPUs have a number of signals in the system connector that
affect the power state. The signals in Figure 1 show the signals for all types and
variants of the GR/GS64 family of Wireless CPUs.
Table 1 below lists what features are available for the different types and variants.

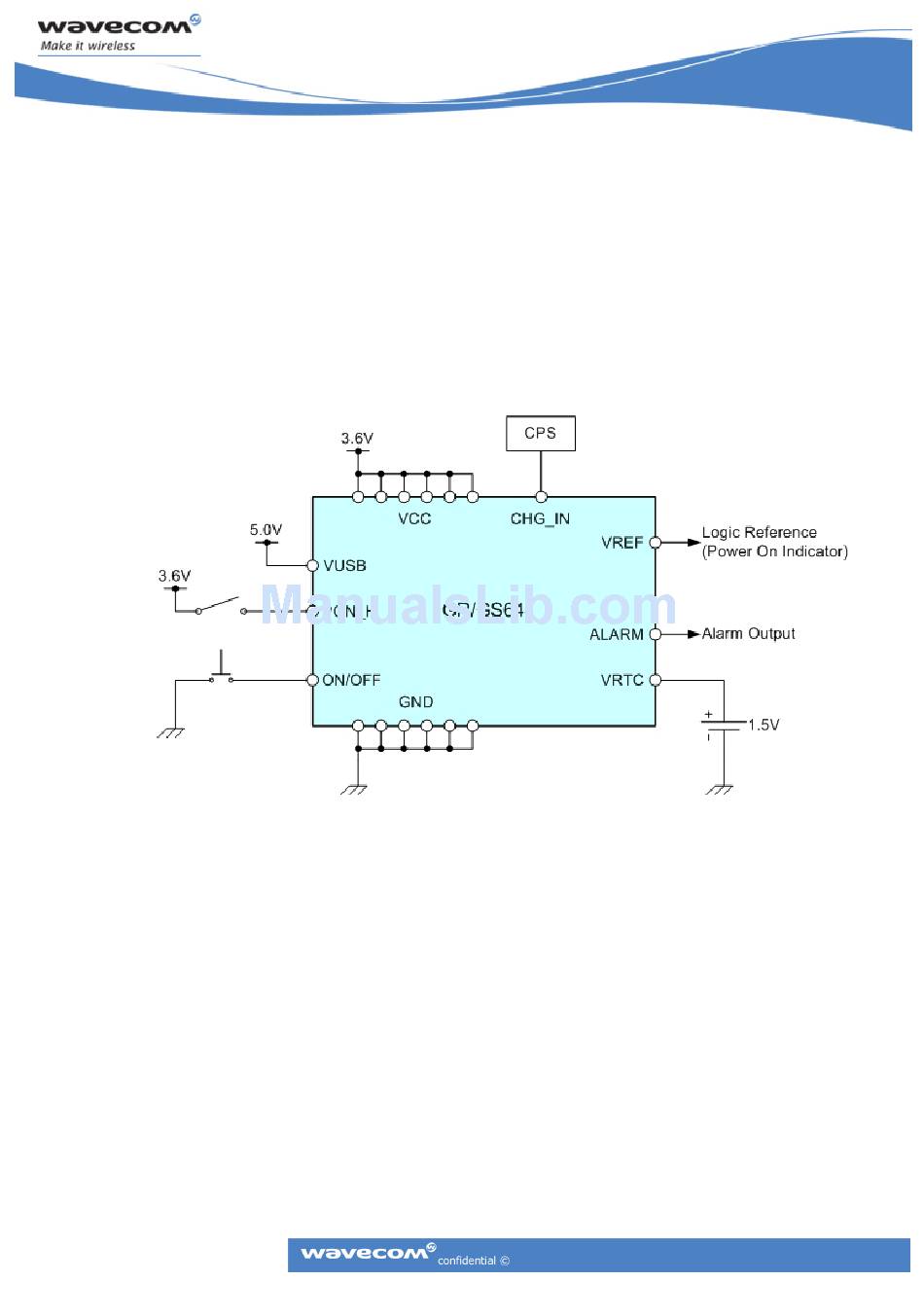

Figure 1: System Block Diagram

VREF is implemented differently in the two different GR64 variants. VREF is either an
input or an output and are obviously mutually exclusive. Figure 1 only shows VREF as
an output, which is the way it is implemented in the GR64001 and GS64.
The signal can be divided into two types:
•
•
The CHG_IN signal is both a PSI and a PSC.
Gx64 APPLICATION NOTE
Power Management
Page: 7/30
Power Supplies and indicators (PSI)
Power state change signals (PSC)
