Gr64002; Figure 4: Gr64002 Power Management Block Diagram - Wavecom Gx64 Application Note

2.2.3

GR64002

This variant of GR64 implements all four PSC-options, ON/OFF, PON_H, ALARM and
CHG_IN.

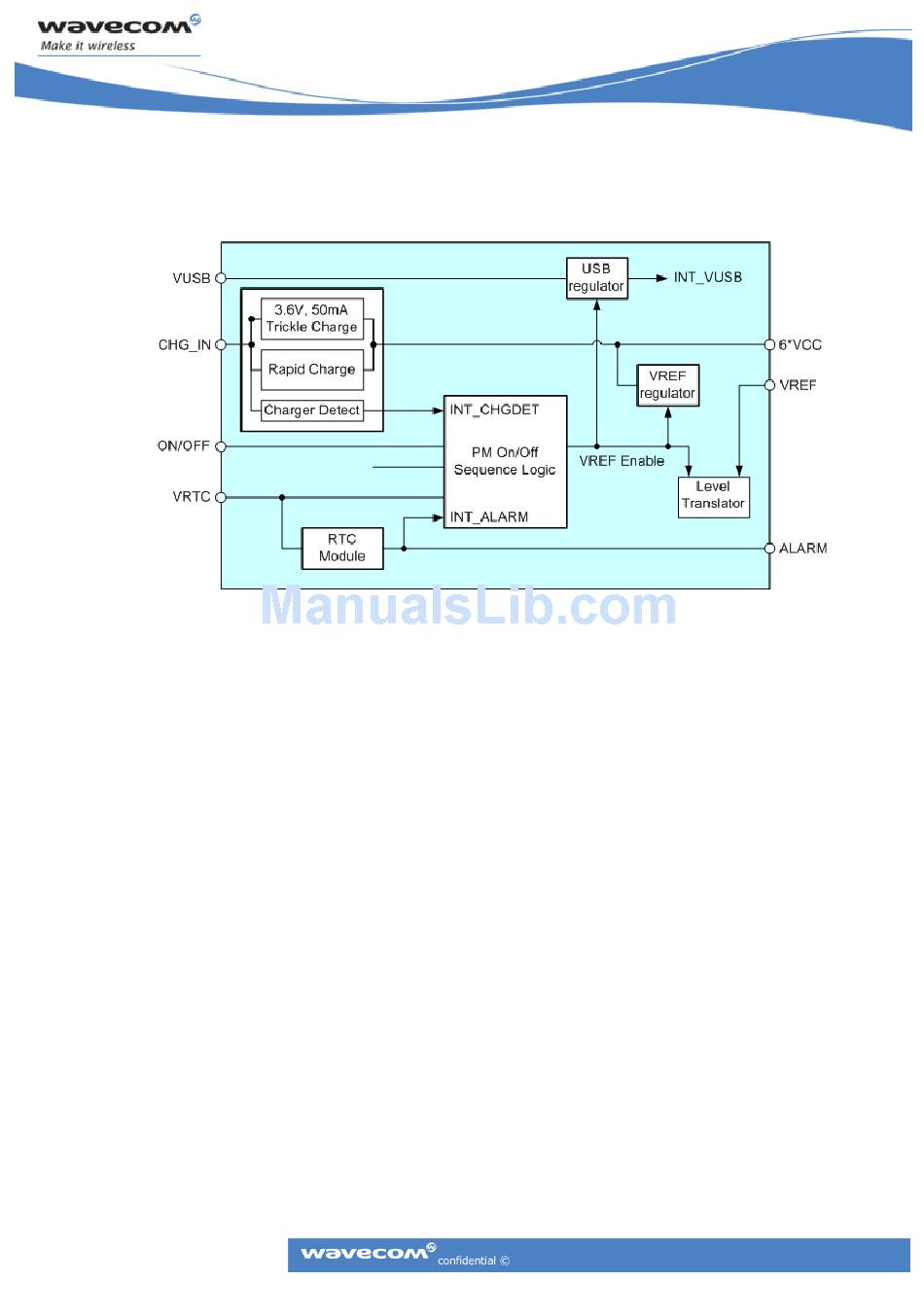

Figure 4: GR64002 Power Management Block Diagram

The "PM ON/OFF Sequence Logic" block diagram can be found in Figure 5.
