Apogee X-Video Card User Manual

X-series expansion cards.
Hide thumbs
Expansion Cards
X-Video Card
User's Guide
v1.0 - February 2006

   Also See for Apogee X-Video Card

   Related Manuals for Apogee X-Video Card

   Summary of Contents for Apogee X-Video Card

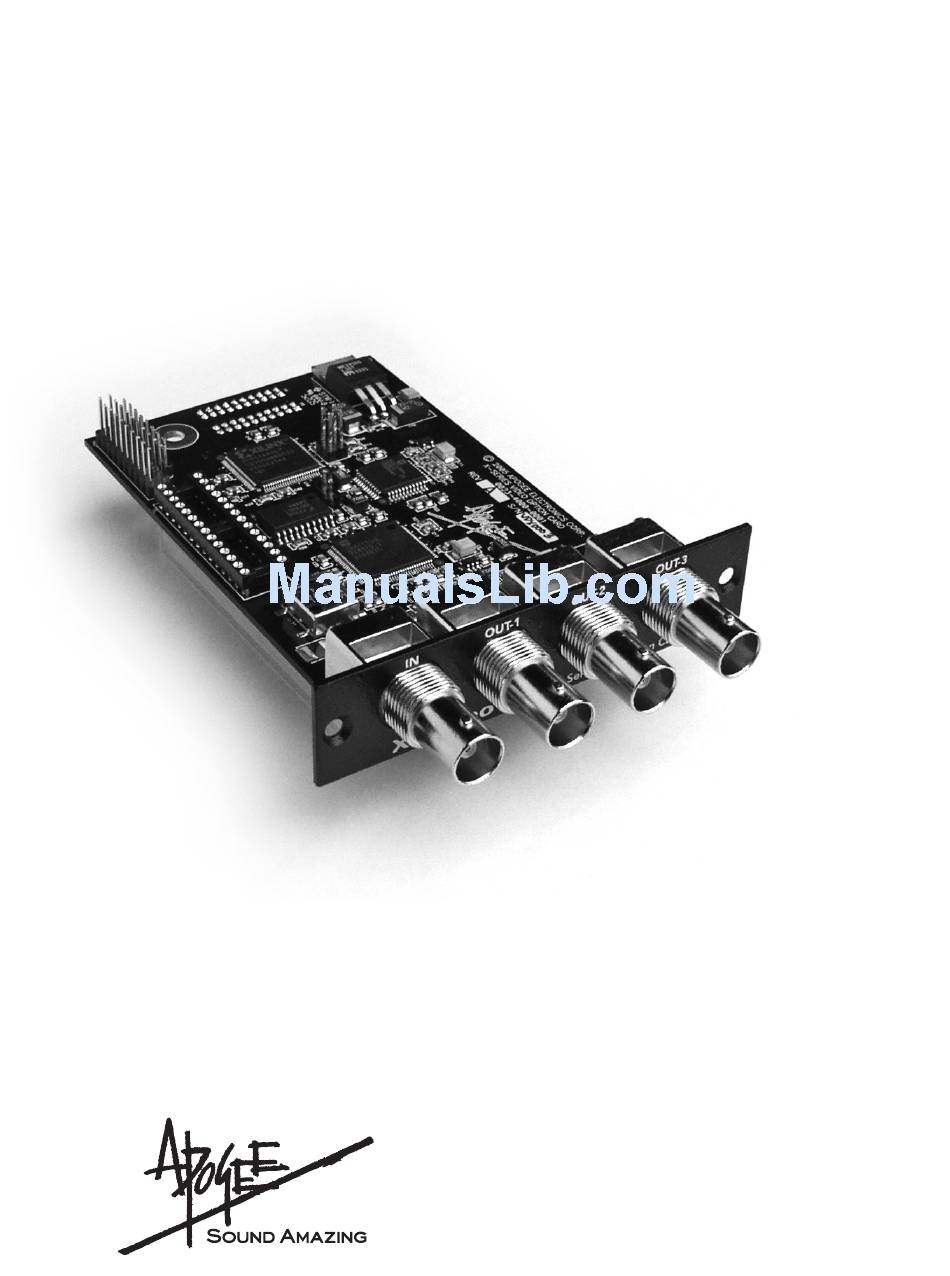

  • Page 1

    X-Series Expansion Cards X-Video Card User’s Guide v1.0 - February 2006...

  • Page 2: Copyright Notice, Declarations Of Conformity

    • 89/336/EEC – EMC Directive Declaration of Conformity – Japan Apogee Electronics Corporation hereby declares that the X-Video card, to which this declaration relates, is in material conformity with the VCCI Class A standard. Declaration of Conformity – Australia Apogee Electronics Corporation hereby declares that the X-Video card is in material conformity with AN/NZS standard requirements.

  • Page 3: Registration And Warranty Information, Service Information

    X-Video – User’s Guide Registration and Warranty Information Be sure to register your X-Video card, either by filling in the enclosed Registration Card or by completing the on- line registration form at our Web site: http://www.apogeedigital.com/support/. If you do so, Apogee can contact you with any update information.

  • Page 4

    The serial number is located on the top of the unit. We suggest you record the serial number in the space provided below. Refer to it whenever you call an authorized Apogee Electronics repair facility or the manufacturer. Please be sure to return your completed warranty card immediately! X-Video card Serial No._________________________________________________...

  • Page 5: Table Of Contents

    X-Video Card User’s Guide Table of Contents Introduction ........................3 X-Video Requirements ....................3 Getting Started Quickly ....................3 X-Video I/O ........................3 X-Video Operating Modes ....................3 Installing the X-Video Card ..................4...

  • Page 6: X-video Requirements, Getting Started Quickly, X-video I/o

    X-Video – User’s Guide Introduction The Apogee X-Video card expands the video capability of the Big Ben Master Clock, offering one video input and three video outputs. X-Video Requirements The X-Video card operates exclusively with Apogee’s Big Ben Master Clock; Big Ben firmware 2.0 or higher must be installed.

  • Page 7: X-video Operating Modes

    X-Video card into one of three operating modes: Master, Slave and Standalone. Master – In Master mode, the X-Video card generates the reference for all Big Ben’s outputs as well as the three X- Video card’s outputs; the X-Video output format may be set to NTSC, PAL or B&W (black & white). Signal present at the X-Video IN BNC is ignored.

  • Page 8: Installing The X-video Card

    4 Install the two aluminium standoffs in the threaded holes vacated by the screws. 5 On the X-Video card, install the plastic standoff in the hole adjacent to the multi-pin motherboard connector. 6 Install the X-Video Coverplate, and secure it to the host interface using two screws from Step 2.

  • Page 9

    X-Video card USER’S GUIDE - v1.0 - February 2006 Text by: Roger Robindore Graphics by: Sean McArthur...
