Aphex 1788 Addendum

July 1999
This addendum to your 1788 User's Manual contains the following information:

• Updated pin-out information for the MIDI connector

• Updated information for the RS-232/422 connector

• Operating information on the new DISPLAY BRIGHTNESS adjust function

• Operating information on the DISPLAY FLASH VERSION.

Section 3.8b (update to Section 3.8)

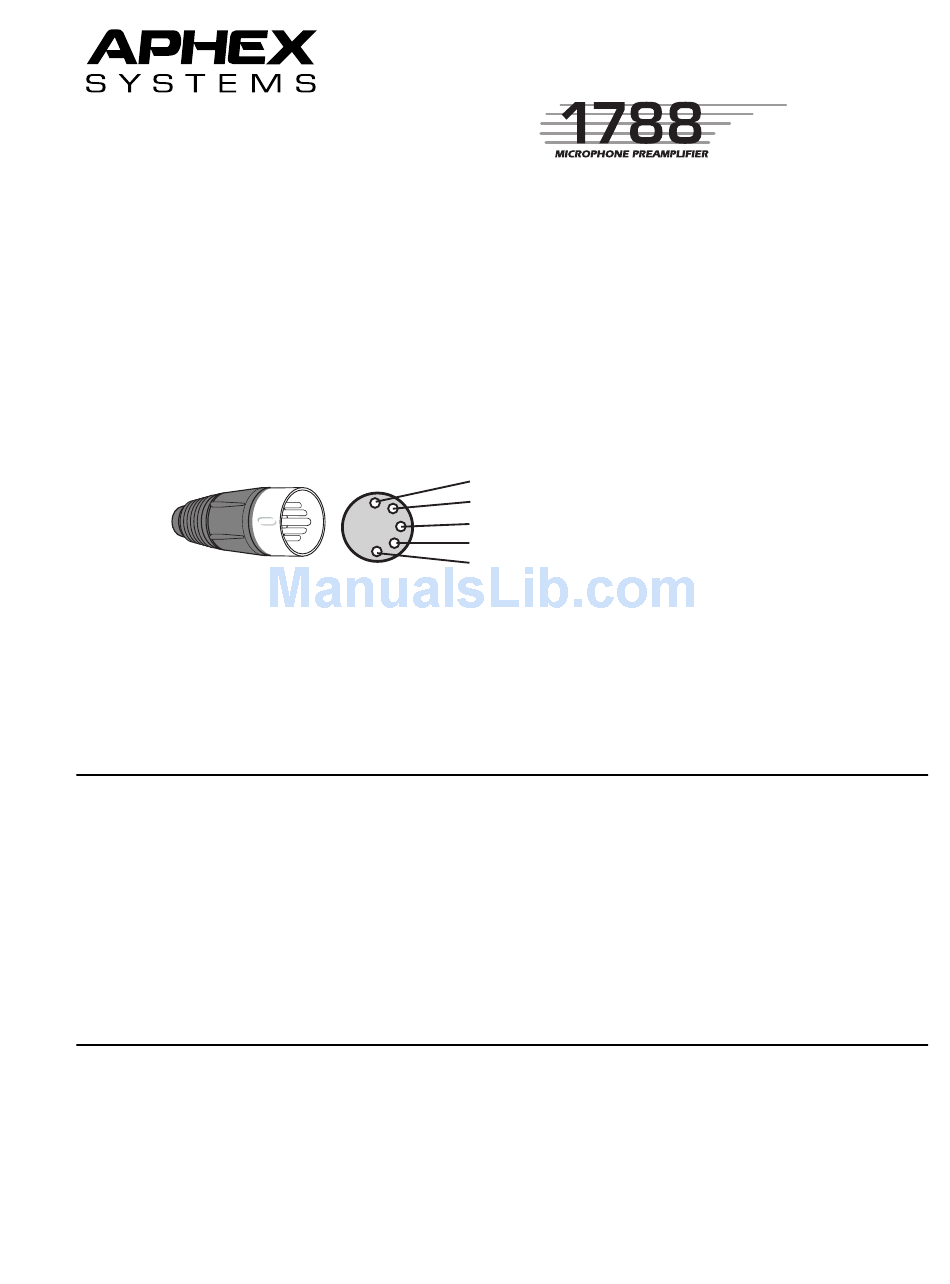

The correct pin-out for the MIDI connectors is as follows:
Only the MIDI Out and MIDI Thru Ports connect Pin #2 to Ground.
Section 3.9b (update to Section .3.9)
We have changed the labeling on the back panel to facilitate the use of a PC (using our propri-
etary software) or the 1788-R to remotely control a Model 1788 or a group of Model 1788s.
Old Labeling
RS-232
Master RS-422
Slave RS-232
ADDENDUM
3
5
2
4
1
New Labeling
Link In RS-232
Link In RS-422
Link Out RS-422
Not Connected
Data –
Ground
Data +
Not Connected
Function
The connection FROM a remote control
device via RS-232.
The connection FROM a remote control
when using RS-422 or FROM a Model 1788
upstream in the control signal chain.
The connection TO a Model 1788 downstream in
the signal chain.
