Summary of Contents for Aphex HeadPod 454

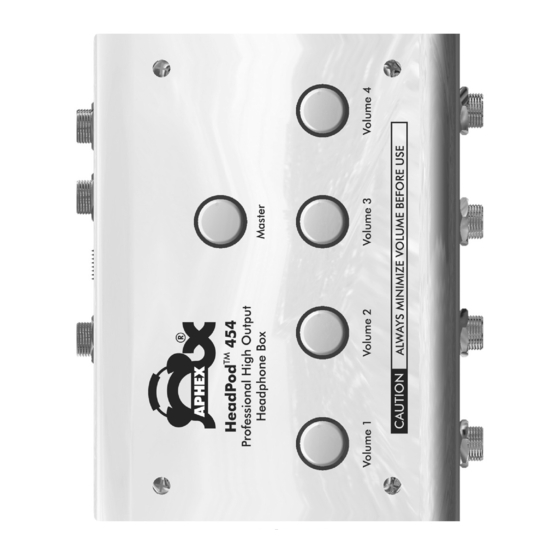

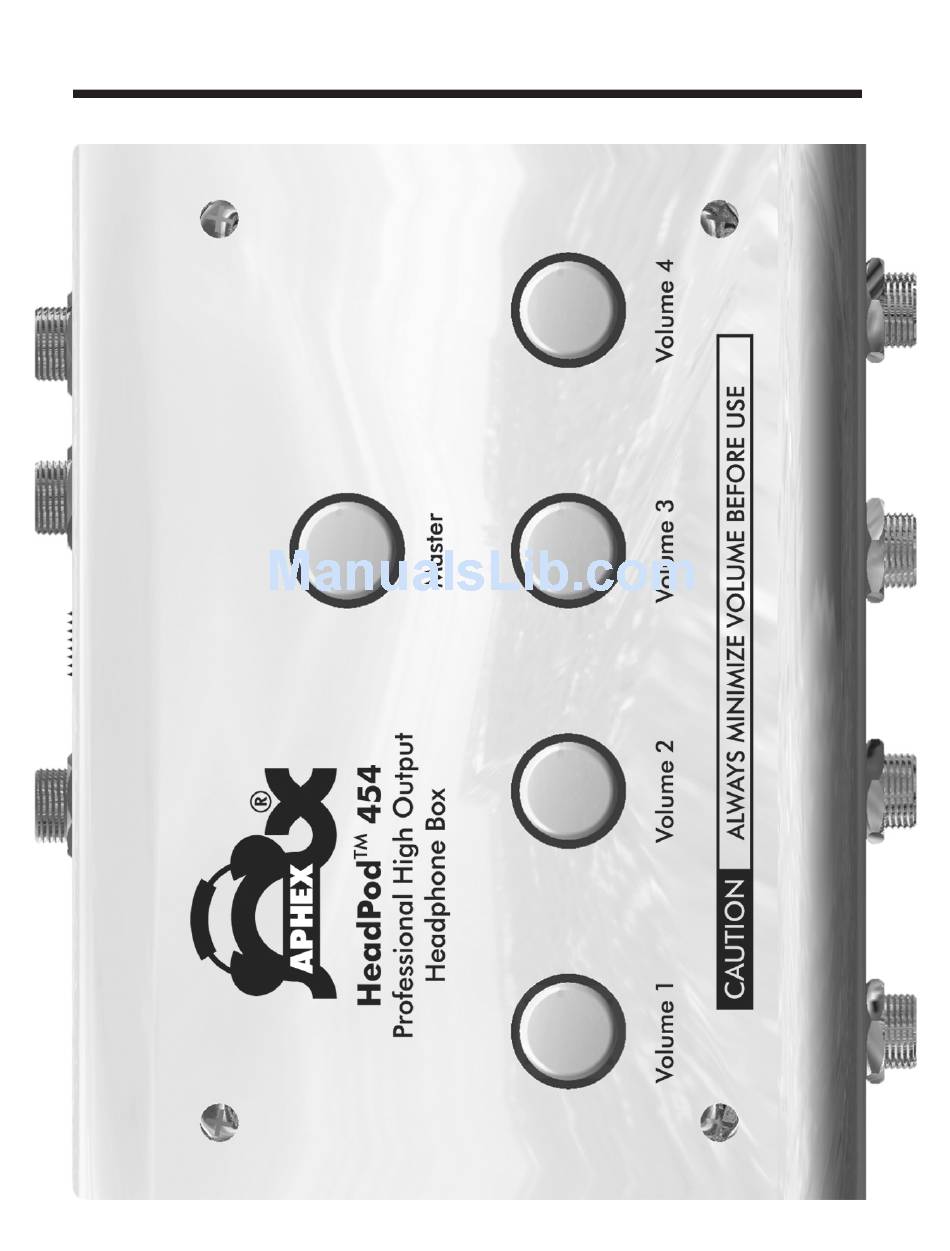

- Page 1 Instruction Manual www.aphex.com...
- Page 2 Model 454 HeadPod™ Hook-Up 12-16VAC/0.6A Balanced Unbalanced Power TRS Inputs Stereo TRS Inputs 12-16V T: POS, R: NEG, S: GND T: Lt, R: Rt, S: GND AC Only Zin = 20KΩ Zin = 10KΩ Outputs to Stereo Headphones 8 - 1000Ω Zout = 10Ω...
-
Page 3: Power Jack
Instruction Manual Balanced Inputs Active balanced inputs receive separate left and right bal- anced or unbalanced sources. For unbalanced sources, use store bought phone plug to RCA adaptors. Otherwise, wire tip to hot and ring and sleeve to ground. Many times ground loop hum can be eliminated by using only the ring for ground and not connecting ground to the sleeve. - Page 4 Model 454 HeadPod™ Controls Page 4...
- Page 5 Instruction Manual Master (Input Gain) This control lets you match your HeadPod to the audio source. Adjust it so the individual output volume controls are operating at convenient settings. If you hear distortion it is probable the Master is set too high while the Volumes are set too low.
-
Page 6: Specifications
Dimensions 5.5W x 1.9H x 4.5D in. 13.8W x 4.8H x11.4D cm. External Power 12-16VAC, 850mA 5.5mm x 2.1mm Power Jack Aphex reserves the right to continually improve our products. All specifications are subject to change without notice. Page 6... -
Page 7: Limited Warranty
Any and all warranties are limited to the duration of the warranty stated above. EXCLUSION OF CERTAIN DAMAGES Aphex Systems’ liability for any defective unit is limited to the repair or replacement of said unit, at our option, and shall not include damages of any other kind, whether incidental, consequential, or otherwise. -
Page 8: Service Information
Model 454 HeadPod™ Service Information 1. If it becomes necessary to return this unit for repair, you must first contact Aphex Systems, Ltd. for a Return Autho- rization (RMA number). 2. Pack the equipment in a strong carton containing at least two inches of padding on all sides.
