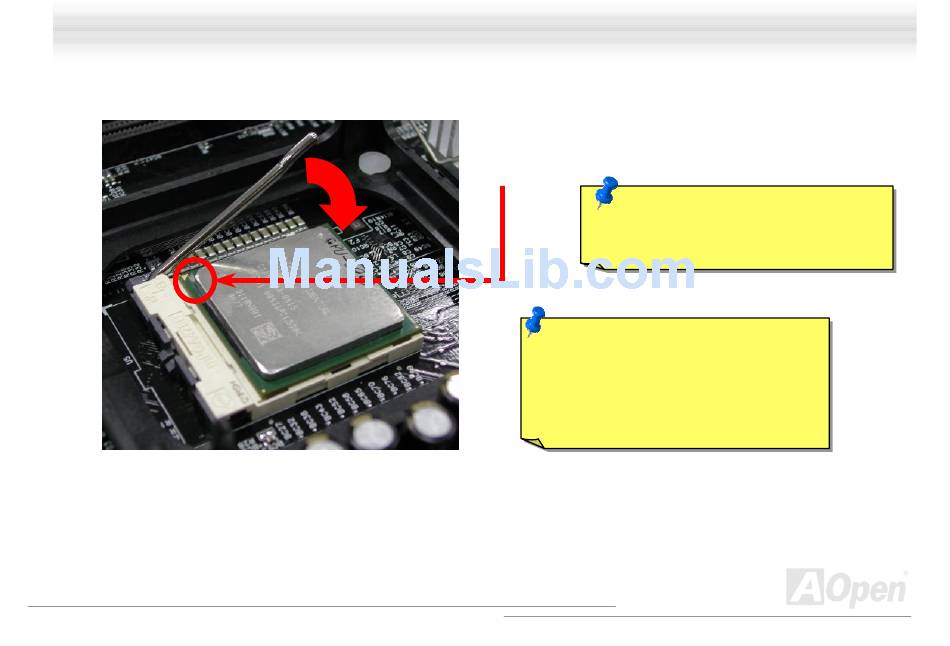

3. Press down the CPU socket lever and finish
CPU installation.
Note: This picture is for example only; it may not exactly be the same motherboard.
E
R
-
N
E
R
-
N
CPU cut edge
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
may damage the CPU.
Note:
This
Micro-FC-PGA2 package CPU, which
is the latest CPU package developed
by Intel. Other forms of CPU package
are impossible to be fitted in.
23
