Supplied Accessories
Make sure you have the following accessories:
a Indoor FM antenna
b AM loop antenna
c Remote controller and two
batteries (AA/R6)
d Speaker setup microphone
The AV receiver can automatically
perform speaker and surround
settings, so that you can easily
enjoy a surround sound tailored
Front
to your listening environment.
speakers
Connect the supplied microphone
to the AV receiver and follow the
on-screen instructions.
When performing automatic
speaker setup, connect your
TV to the AV receiver and
20 thin rubber stoppers
make the room as quiet as
(For Front/Center/
possible.
Surround speakers)
e Speaker Package

Using the Remote Controller

*1 Configuration of the rubber
stoppers may be different from
the figure, such as being 2 sheets
instead of 1 sheet, but the total
number will be same.
Batteries (AA/R6)
Note
Before connecting the power cord, connect all of your speakers and AV components.
1. Connecting Your Speakers
6 3 1 2 4 5
SN 29401071
(C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved.
(White) (Red) (Green)
Speaker cables Center Speaker cable Surround
3.0 m speaker 3.0 m speakers
*1 8 thick rubber stoppers *1 Subwoofer RCA cable
(For Front/ 3.0 m
Surround speakers)
Remote control sensor
AV receiver
1 2 Front speakers
3 Center speaker
4 5 Surround speakers
6 Subwoofer

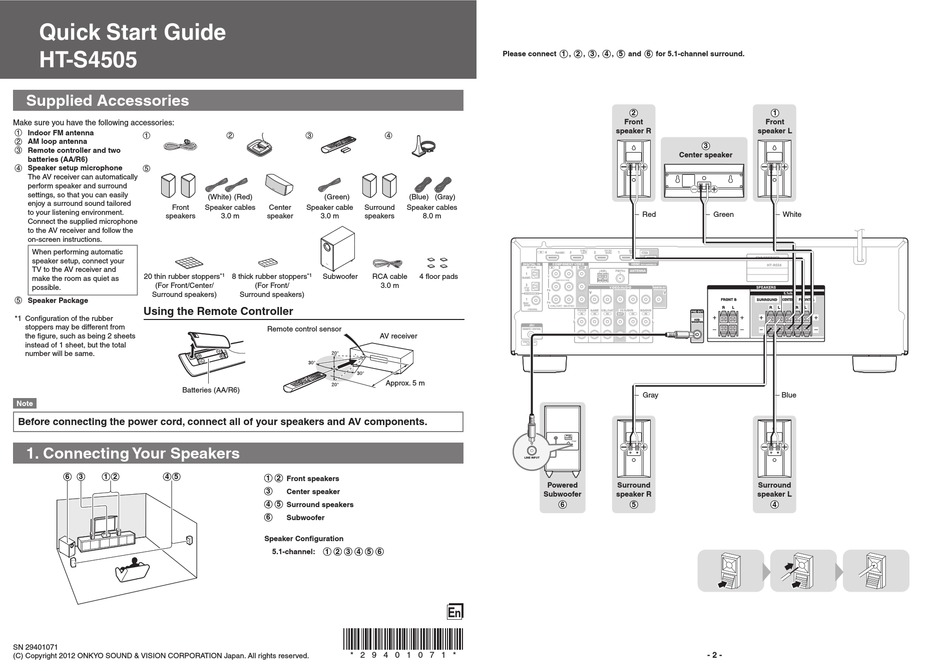

Speaker Configuration
5.1-channel: 1 2 3 4 5 6
* 2 9 4 0 1 0 7 1 *
Please connect 1 , 2 , 3 , 4 , 5 and 6 for 5.1-channel surround.
(Blue) (Gray)
Speaker cables
8.0 m
4 floor pads
Approx. 5 m
Powered
Subwoofer
6
E
n
2 1
Front Front
speaker R speaker L
3
Center speaker
Red Green White
Gray Blue
Surround Surround
speaker R speaker L
5 4
