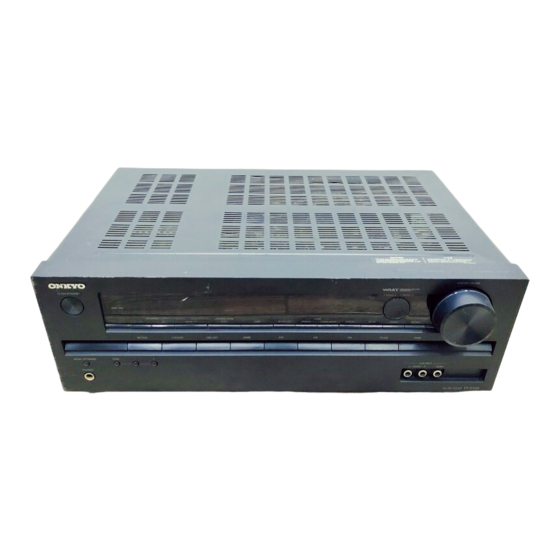

AV RECEIVER
HT-R358
Instruction Manual
Contents
Table of Contents ...........................................5
Connections .................................................11
Turning On & Basic Operations..................18
Advanced Operations ..................................32
Controlling Other Components...................44
Appendix .......................................................51
Speaker Package
E
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-R358 and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo HT-R358

Summary of Contents for Onkyo HT-R358

  • Page 1: Table Of Contents

    Contents AV RECEIVER Safety Information and Introduction ....2 HT-R358 Table of Contents ...........5 Connections ..........11 Turning On & Basic Operations....18 Instruction Manual Advanced Operations ........32 Controlling Other Components....44 Appendix ............51 Speaker Package...

  • Page 2: Safety Information And Introduction

    Safety Information and Introduction 9. Do not defeat the safety purpose of the polarized or D. If the apparatus does not operate normally by grounding-type plug. A polarized plug has two blades following the operating instructions. Adjust only WARNING: with one wider than the other. A grounding type plug those controls that are covered by the operating TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, has two blades and a third grounding prong.

  • Page 3: Precautions

    Dry the unit immediately afterwards with a as that indicated on the plug. Check for the ASTA mark or this unit, have it checked by your Onkyo dealer. clean cloth. Don’t use abrasive cloths, thinners, the BSI mark on the body of the fuse.

  • Page 4: Supplied Accessories

    • Remove expired batteries as soon as possible to prevent damage from leakage or corrosion. Thank you for purchasing an Onkyo AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver.

  • Page 5: Table Of Contents

    Using the Audio Settings .......... 42 Connecting the Power Cord ........17 Controlling Other Components Turning On & Basic Operations iPod/iPhone Playback via Onkyo Dock ....44 Turning On/Off the AV Receiver ........18 Using the Onkyo Dock ..........44 Turning On ..............18 Controlling Your iPod/iPhone........

  • Page 6: Features

    Safety Information and Introduction Features Connections • 4 HDMI Inputs and 1 Output Amplifier • Onkyo for System Control • 3 Digital Inputs (2 Optical/1 Coaxial) • 100 Watts/Channel @ 6 ohms (IEC) • Component Video Switching (2 Inputs/1 Output) •...

  • Page 7: Front & Rear Panels

    Safety Information and Introduction Front & Rear Panels Front Panel For detailed information, see the pages in parentheses. TUNING / , PRESET (20), cursor and ENTER buttons ON/STANDBY button (18) RETURN button HDMI THRU indicator (41) MASTER VOLUME control (19) SPEAKERS A and B buttons (28) MUSIC OPTIMIZER button (30, 43) Remote control sensor (4)

  • Page 8: Display

    Safety Information and Introduction Display For detailed information, see the pages in parentheses. A and B speaker indicators (28) M.Opt indicator (30, 43) Listening mode and format indicators (23, 39) Tuning indicators RDS indicator (21) AUTO indicator (20) TUNED indicator (20) FM STEREO indicator (20) SLEEP indicator (29, 40) HDMI indicator (41, 56)

  • Page 9: Rear Panel

    Safety Information and Introduction Rear Panel DIGITAL IN COAXIAL and OPTICAL jacks Composite video and analog audio jacks (BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN, COMPONENT VIDEO IN and OUT jacks GAME IN, TV/CD IN) HDMI IN and OUT jacks MONITOR OUT V jack FM ANTENNA jack and AM ANTENNA terminal UNIVERSAL PORT jack...

  • Page 10: Remote Controller

    You can also use the remote controller to control Controlling the AV Receiver You can select AM or FM by pressing TUNER repeatedly. Onkyo Blu-ray Disc/DVD player, CD player, and / buttons (20) other components. See “Entering Remote Control Codes” for more D.TUN button (20)

  • Page 11: Connections

    Connections Connecting the AV Receiver Passive Surround Surround Subwoofer right left Connecting Your Speakers Connecting the Speaker Cables The following illustration shows how to connect the speakers to each pair of terminals. ■ Using a Passive Subwoofer Corner position 1/3 of wall position To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by...
  • Page 12 Connections Speaker Configuration Speaker Connection Precautions • Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver. The following table indicates the channels you should use Read the following before connecting your speakers: •...

  • Page 13: About Av Connections

    Connections ■ AV Cables and Jacks Optical digital audio About AV Connections Optical digital connections allow you to enjoy digital ■ sound such as PCM , Dolby Digital or DTS. The audio HDMI Connecting AV components quality is the same as coaxial. HDMI connections can carry digital video and audio.

  • Page 14: Connecting Components With Hdmi

    Connections Connecting Components with HDMI VCR or DVD recorder/digital video recorder Game console TV, projector, etc. Satellite/cable set-top box, etc. Blu-ray Disc/DVD player ■ If your TV doesn’t support Audio Return Channel (ARC), you See also: Audio Return Channel (ARC) function need to connect an optical digital cable together with the HDMI •...

  • Page 15: Connecting Your Components

    Connections Connecting Your Components Note The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected Connect a turntable (MM) that has a phono preamp built-in. If to other video outputs, use the AV receiver’s display your turntable (MM) doesn’t have it, you’ll need a commercially available phono preamp.

  • Page 16: Connecting Onkyo Components

    Connecting a Recording Component Connecting Onkyo Components See “Recording” for details on recording (➔ page 31). Make sure that each Onkyo component is connected with an analog audio cable (connection in the hookup examples) (➔ page 15). Make the connection (see the illustration).

  • Page 17: Connecting The Antennas

    Connections Connecting the Antennas Connecting the Power Cord This section explains how to connect the supplied indoor FM antenna and AM loop antenna. Plug the power cord into an AC wall outlet. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

  • Page 18: Turning On & Basic Operations

    Turning On & Basic Operations Turning On/Off the AV Turning On Turning Off Receiver ON/STANDBY on the front panel. ON/STANDBY on the front panel. Press Press ON/STANDBY Press RECEIVER followed by ON/STANDBY Press RECEIVER followed by ON/STANDBY on the remote controller. on the remote controller.

  • Page 19: Playback

    Select a listening mode and enjoy! Start playback on the source component. See also: • “Listening to AM/FM Radio” (➔ page • “iPod/iPhone Playback via Onkyo Dock” (➔ page • “Controlling Other Onkyo Components” (➔ page To adjust the volume, use VOL / .

  • Page 20: Listening To Am/Fm Radio

    Turning On & Basic Operations ■ Tuning into Radio Stations Manual tuning mode Listening to AM/FM Radio In manual tuning mode, FM stations will be in mono. ■ Auto tuning mode This section describes the procedure using the buttons Press TUNING MODE so that the AUTO indicator on the front panel unless otherwise specified.
  • Page 21 Turning On & Basic Operations ■ Presetting AM/FM Stations Selecting Presets Using RDS You can store a combination of up to 40 of your favorite To select a preset, use PRESET on the AV AM/FM radio stations as presets. receiver, or the remote controller’s CH +/–. RDS works only in areas where RDS broadcasts are available.
  • Page 22 Turning On & Basic Operations ■ Listening to Traffic News (TP) RDS program types (PTY) Note Type Display • In some cases, the text characters displayed on the AV receiver You can search for stations that broadcast traffic news. may not be identical to those broadcast by the radio station. Also, None None unexpected characters may be displayed when unsupported...

  • Page 23: Using Basic Functions

    Turning On & Basic Operations Using Basic Functions MOVIE/TV button This button selects the listening modes intended for use with movies and TV. Using the Listening Modes MUSIC button This button selects the listening modes intended for use Selecting Listening Modes with music.
  • Page 24 Turning On & Basic Operations About Listening Modes Input Source Speaker Layout The following audio formats are supported by the listening The illustration shows which speakers are activated in each The AV receiver’s listening modes can transform your mode. channel. See “Sp Config (Speaker Configuration)” for the listening room into a movie theater or concert hall, with speaker setup (➔...
  • Page 25 Turning On & Basic Operations ■ Onkyo-Original DSP Listening Modes Listening Mode Description Input Speaker Source Layout Listening Mode Description Input Speaker T-D (Theater- With this mode you can enjoy a virtual Source Layout Dimensional) surround sound even with only two or three...
  • Page 26 Turning On & Basic Operations ■ Listening Modes Listening Mode Description Input Speaker Source Layout Listening Mode Description Input Speaker In this mode, audio from the input source is Source Layout output without surround-sound processing. Direct In this mode, audio from the input source is D S D The speaker configuration (presence of output without surround-sound processing.
  • Page 27 Turning On & Basic Operations Listening Mode Description Input Speaker Note Source Layout The AV receiver can input the DSD signal from HDMI IN. Setting the output setting on the player Dolby Pro Logic II Dolby Pro Logic II expands any 2-channel side to PCM might obtain a better sound according to the player.

  • Page 28: Using The Home Menu

    Turning On & Basic Operations ■ Info Using the Home Menu Selecting Speakers A and B You can view the information of the following The Home menu provides quick access to frequently used You can use two sets of front speakers with the AV items: “Input”...

  • Page 29: Using The Sleep Timer

    Turning On & Basic Operations Using the Sleep Timer Setting the Display Brightness Displaying Source Information With the sleep timer, you can set the AV receiver to turn You can adjust the brightness of the AV receiver’s display. You can display various information about the current off automatically after a specified period.

  • Page 30: Changing The Input Display

    Muting the AV Receiver The Music Optimizer function enhances the sound quality You can temporarily mute the output of the AV receiver. When you connect an -capable Onkyo component, you of compressed music files. must configure the input display so that can work Press RECEIVER followed by MUTING.

  • Page 31: Using Headphones

    Turning On & Basic Operations Using Headphones Recording This section explains how to record the selected input Connect a pair of stereo headphones with a source to a component with recording capability. standard plug (6.3 mm) to the PHONES jack. Note AV Recording •...

  • Page 32: Advanced Operations

    Advanced Operations On-screen Setup Explanatory Notes Common Procedures in Setup Menu The setup menus provides a convenient way to change the Menu Sp Config AV receiver’s various settings. Settings are organized into ■ Remote indicator Subwoofer 10 categories. The on-screen menus appear only on a TV that is RECEIVER connected to the HDMI OUT.

  • Page 33: Setup Menu Items

    Advanced Operations Menu item Setting target Setup menu items Sp Distance Unit (➔ page Left Menu item Setting target Center HDMI Input BD/DVD (➔ page Right VCR/DVR Surround Right CBL/SAT Surround Left GAME Subwoofer Level Cal Left TV/CD (➔ page Center PORT Right...

  • Page 34: Hdmi Input

    Advanced Operations HDMI Input Component (Component Video Input) Note • If no video component is connected to HDMI output (even if the HDMI input is assigned), the AV receiver selects the video source based on the setting of “Component (Component Video Input)”.

  • Page 35: Digital Audio (Digital Audio Input)

    Advanced Operations Digital Audio (Digital Audio Input) Sp Config (Speaker Configuration) Note • When an HDMI IN is assigned to an input selector in “HDMI Input” (➔ page 34), the same HDMI IN will be set as a priority in this assignment. In this case, if you want to use the coaxial or optical audio input, make the appropriate selection in the “Audio Selector”...

  • Page 36: Sp Distance (Speaker Distance)

    Advanced Operations ■ Front Sp Distance (Speaker Distance) Note Small: • For a more accurate setting, look up the frequency response in the Large: manuals supplied with your speakers and set accordingly. Select based on the cone diameter. • Choose a higher crossover frequency if you want more sound from your subwoofer.

  • Page 37: Level Cal (Level Calibration)

    Advanced Operations Dolby Level Cal (Level Calibration) Audio Adjust ■ PL II Music (2ch Input) These settings apply to only 2-channel stereo sources. Panorama Menu Level Cal Menu Audio Adjust Here you can adjust the level of each speaker with the With the Audio Adjust functions and settings, you can With this setting, you can broaden the width of the front built-in test tone so that the volume of each speaker is the...

  • Page 38: Source Setup

    Advanced Operations Preset Name For Input Selector Source Setup ■ ■ Neo:6 Music Name - - -, Blu-ray, DVD, HD DVD, VCR, DVR, Tivo, Center Image CableSTB, SAT STB, PS3, Wii, Xbox, PC, TV, CD, 0 to 2 to 5 Items can be set individually for each input selector.

  • Page 39: Hardware

    1, 2, or 3 automatically selected as a priority. Normally, the AV receiver detects the signal format When several Onkyo components are used in the same OPTICAL: automatically. However, if you experience either of the room, their remote ID codes may overlap. To differentiate...
  • Page 40 Advanced Operations Tuner UP-A1 ■ ■ AM Freq Step UP-A1 ChargeMode 10kHz: Auto: Power feeding is interrupted when your iPod/iPhone 9kHz: is fully charged. Select the frequency step according to your area. For AM tuning to work properly, you must specify the AM Power feeding continues even if your iPod/iPhone is frequency step used in your area.

  • Page 41: Hdmi Setup

    Advanced Operations ■ Audio TV Out • When the source equipment is connected with the HDMI Setup connection, it may malfunction if “HDMI Ctrl (RIHD)” is set to “On”. ■ This preference determines whether the incoming audio HDMI Through signal is output from the HDMI output. You may want to turn this preference on if your TV is connected to the Menu HDMI Setup...

  • Page 42: Using The Audio Settings

    Advanced Operations ■ Audio Return Ch (ARC) Speaker Levels Using the Audio Settings ■ Auto: You can change various audio settings from the Home Subwoofer Level (➔ page 28). The audio signal from your TV tuner can be sent to menu –15 dB to +3 dB to +12 dB in 1 dB steps the HDMI OUT of the AV receiver.
  • Page 43 Advanced Operations Late Night Music Optimizer CinemaFILTER ■ ■ ■ Late Night Music Optimizer Cinema Filter For Dolby Digital and Dolby Digital Plus sources, the options are: The Music Optimizer function enhances the sound quality Turn this setting on to soften overly bright movie Low: of compressed music files.

  • Page 44: Controlling Other Components

    AV receiver from selecting the UP-A1 Dock, its battery will be charged when the AV For the latest information on the Onkyo Dock iPod/iPhone input source by mistake. receiver is set to on or standby.

  • Page 45: Controlling Your Ipod/Iphone

    Controlling Other Components RI Dock iPod/iPhone Alarm Controlling Your iPod/iPhone If you use the Alarm function on your iPod/iPhone to start With the RI Dock, you can easily play the music stored on playback, the AV receiver will turn on at the specified time By pressing the REMOTE MODE button that’s been your Apple iPod/iPhone through the AV receiver and enjoy and select your iPod/iPhone as the input source...
  • Page 46 RI Dock. appear only on a TV that is connected to the HDMI output. This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Also, your iPod/iPhone may not respond the first time you press this button, in which case you should press it again.

  • Page 47: Controlling Other Onkyo Components

    You can use the AV receiver’s remote controller to control controlled by pointing the remote controller at the AV your other Onkyo AV components. This section explains Look up the appropriate remote control code in the receiver, not the component. This allows you to control...

  • Page 48: Resetting The Remote Mode Buttons

    Resetting the REMOTE MODE Buttons Resetting the Remote Controller If you want to control an Onkyo component by pointing the You can reset a REMOTE MODE button to its default You can reset the remote controller to its default settings.

  • Page 49: Controlling Other Components

    By pressing the REMOTE MODE button that’s been Number: 1 to 9, 0 ON/STANDBY programmed with the remote control code for your TOP MENU Number: +10 component, you can control Onkyo component as DISPLAY / / / , ENTER described below. SETUP MUTING For details on entering a remote control code for other DISC +/–...
  • Page 50 Controlling Other Components ■ CD player / CD recorder / MD recorder operation Press the appropriate REMOTE Available buttons MODE button first. Number: 1 to 9, 0 ON/STANDBY Number: +10 / / / , ENTER SETUP DISPLAY MUTING DISC +/– SEARCH REPEAT RANDOM...

  • Page 51: Appendix

    If you can’t resolve the issue yourself, try resetting the ■ Make sure that all audio connecting plugs are pushed AV receiver before contacting your Onkyo dealer. Can’t turn on the AV receiver in all the way. To reset the AV receiver to its factory defaults, turn it Make sure that the power cord is properly plugged —...
  • Page 52 Appendix ■ ■ There’s no sound with a certain signal format About DTS signals If the input signal format is set to “PCM” or “DTS”. Set it to “Off”. Check the digital audio output setting on the — When DTS program material ends and the DTS —...
  • Page 53 Appendix ■ Can’t control other components Video Tuner If it’s an Onkyo component, make sure that the ■ ■ There’s no picture Reception is noisy, FM stereo reception is noisy, cable and analog audio cable are connected properly. or the FM STEREO indicator doesn’t light Connecting only an cable won’t be enough.
  • Page 54 Appendix ■ ■ ■ There’s no video iPod/iPhone doesn’t work properly functions don’t work Make sure that your iPod/iPhone model’s TV OUT — Try reconnecting your iPod/iPhone. — To use , you must make an connection and an setting is set to On. analog audio connection (RCA) between the Make sure the correct input is selected on your TV or —...
  • Page 55 Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

  • Page 56: Connection Tips And Video Signal Path

    Appendix Connection Tips and Video Connection Formats Audio Connection Formats Video Signal Path Video components can be connected by using any one of Audio components can be connected by using any of the the following video connection formats: composite video, following audio connection formats: analog, optical, The AV receiver supports several connection formats for component video, or HDMI, the latter offering the best...

  • Page 57: Using An Rihd-Compatible Tv, Player, Or Recorder

    HDMI, is the name of the system control function found on • The AV receiver will enter standby mode when the power • Sharp TV of the TV is turned to standby. Onkyo components. The AV receiver can be used with ■ CEC (Consumer Electronics Control), which allows Players/Recorders •...
  • Page 58 Appendix ■ How to connect and setup Change each item in the “HDMI Setup” menu Operate with the remote controller. according to the following settings: (➔ page 47). For buttons that can be operated Confirm the connecting and setting. • HDMI Ctrl (RIHD): On Note 1.

  • Page 59: About Hdmi

    Appendix About HDMI Supported Audio Formats About Copyright Protection • 2-channel linear PCM (32–192 kHz, 16/20/24 bit) The AV receiver supports HDCP (High-bandwidth Digital Designed to meet the increased demands of digital TV, Content Protection) , a copy-protection system for digital HDMI (High Definition Multimedia Interface) is a new •...

  • Page 60: License And Trademark Information

    Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories. Music Optimizer™ is a trademark of Onkyo Corporation. “HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”...

  • Page 61: Specifications

    Appendix ■ Specifications Video Section HDMI Input IN 1, IN 2, IN 3, IN 4 Input Sensitivity/Output Level and Impedance Amplifier Section Output 1 Vp-p/75 Ω (Component Y) Video Resolution 1080p 0.7 Vp-p/75 Ω (Component P 1 Vp-p/75 Ω (Composite) Audio Format Dolby TrueHD, DTS-HD Master Audio, Rated Output Power...
  • Page 62 Appendix Memo En-62...
  • Page 63 Appendix Memo En-63...
  • Page 64 1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai, China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396 http://www.cn.onkyo.com/ Y1112-1 SN 29401096 (C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved. * 2 9 4 0 1 0 9 6 *...
  • Page 65 HTP-358 5.1ch Home Cinema Package Surround speaker (SKR-558) Supplied Accessories Part Names Make sure you have the following accessories. Keyhole slot Front speaker (SKF-558) Speaker terminals (Blue) (Gray) Surround speakers Speaker cables 8.0 m SKF-558/SKR-558 Subwoofer (SKW-358) (White) (Red) Speaker terminals Front speakers Speaker cables 3.0 m SKC-391...
  • Page 66 Using the Floor Pads for Subwoofer To mount the center speaker horizontally, use the two Before Using the Home Cinema keyhole slots shown to hang the speaker on two screws that Package If the subwoofer is placed on a hard floor (wood, vinyl, are securely screwed into the wall.

  • Page 67: Connecting The Speakers

    Enjoying Home Cinema Connecting the Speakers The Home Cinema means that you can enjoy surround Speaker Connection Precautions sound with a real sense of movement in your own home — Read the following before connecting your speakers: just like being in a movie theater or concert hall. •...
  • Page 68 ■ Center Speaker (SKC-391) Specifications Note Type Full Range Bass-reflex For non-magnetic shielded speakers: ■ 6 Ω Passive Subwoofer (SKW-358) Impedance Try moving the speakers away from your TV or monitor. If Maximum input power 120 W Type Bass-reflex type Passive subwoofer discoloration should occur, turn off your TV or monitor, Sensitivity 80 dB/W/m...
  • Page 69 HTP-358 5.1 Kanal Heimkinopaket Surround-Lautsprecher (SKR-558) Lieferumfang Teilenamen Überprüfen Sie, ob Sie folgende Zubehörteile bekommen Befestigungsloch haben. Front-Lautsprecher (SKF-558) Lautsprecher- anschlüsse (Blau) (Grau) Surround-Lautsprecher Lautsprecherkabel 8,0 m SKF-558/SKR-558 Subwoofer (SKW-358) Lautsprecheranschlüsse (Weiß) (Rot) Front-Lautsprecher Lautsprecherkabel 3,0 m SKC-391 Befestigungslöcher 20 dünne Gummistopper 8 dicke Gummistopper (Für Front/Center/ (Für Front/...
  • Page 70 Verwendung der Bodenauflagen für den Um den Center-Lautsprecher horizontal zu montieren, Bevor Sie das Heimkinopaket verwenden Sie die beiden Befestigungslöcher, um den Subwoofer verwenden Lautsprecher an zwei Schrauben aufzuhängen, die sicher in Wenn der Subwoofer auf einem harten Boden (Holz, die Wand geschraubt wurden.
  • Page 71 Die Freuden des Heimkinos Anschließen der Lautsprecher Mit dem Heimkino können Sie Surround-Klang mit einer Vorsicht beim Anschließen der Lautsprecher echten Bewegungswahrnehmung bei Ihnen zu Hause Bevor Sie Ihre Lautsprecher anschließen, lesen Sie sich genießen – als ob Sie sich in einem Kino oder Konzertsaal folgende Hinweise durch: befinden.

  • Page 72: Technische Daten

    Sonstiges Magnetische Abschirmung Technische Daten und Aussehen können ohne vorherige Ankündigung geändert werden. Y1112-1 SN 29401096SP (C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved. * 2 9 4 0 1 0 9 6 S P *...
