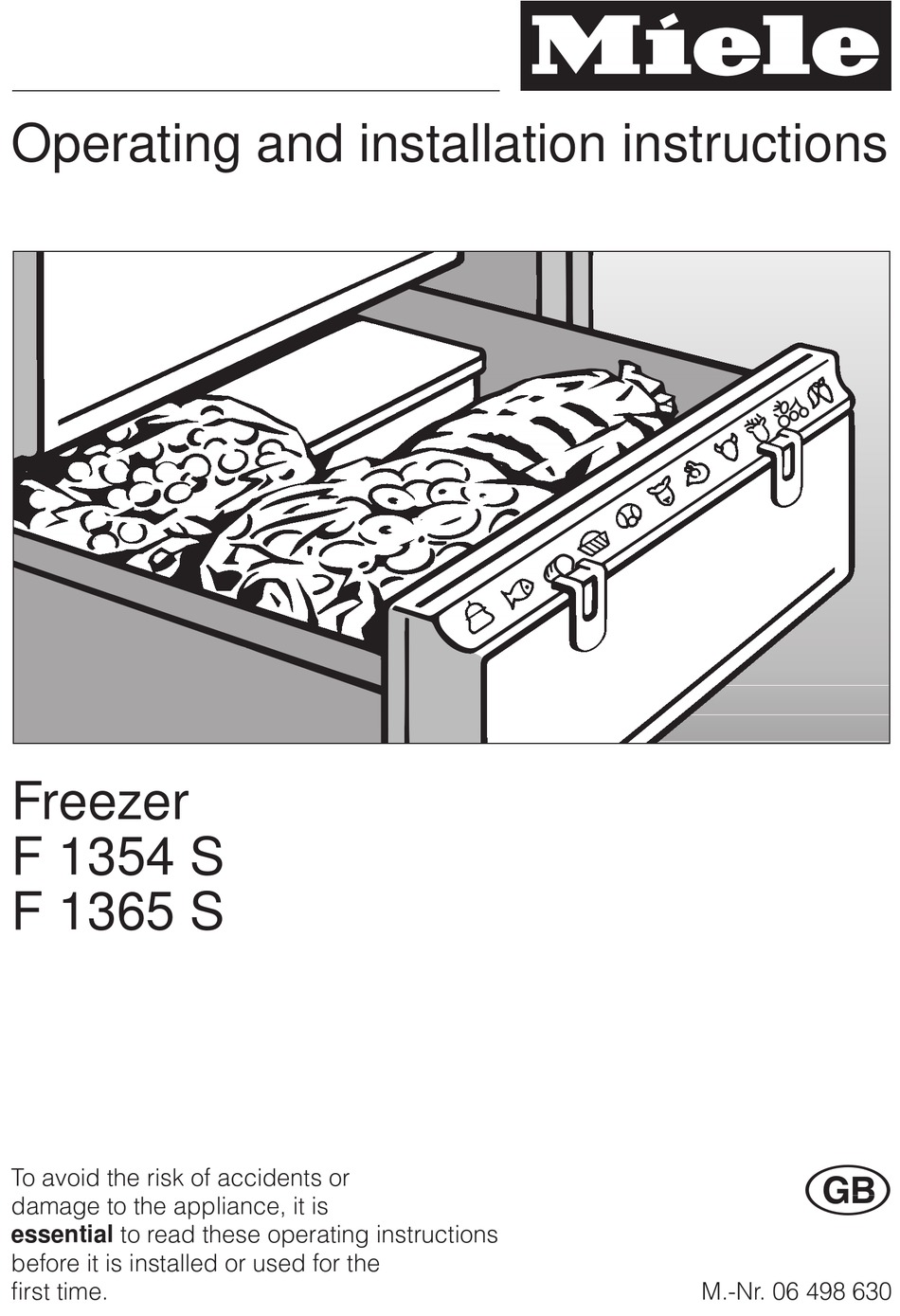

Operating and installation instructions
Freezer
F 1354 S
F 1365 S
G
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these operating instructions
before it is installed or used for the
first time.
M.-Nr. 06 498 630

Advertisement

loading

  Related Manuals for Miele F 1354 S

  Summary of Contents for Miele F 1354 S

  • Page 1 Operating and installation instructions Freezer F 1354 S F 1365 S To avoid the risk of accidents or damage to the appliance, it is essential to read these operating instructions before it is installed or used for the first time.
  • Page 2: Table Of Contents

    Contents Guide to the machine..........4 Caring for the environment .
  • Page 3 Contents Metal grille at the back of the appliance ....... . 26 Problem solving guide .
  • Page 4: Guide To The Machine

    Guide to the machine a On/Off button e Super freeze indicator light b Super freeze button f Temperature display c Alarm button g Controls for setting the temperature Higher button: warmer d Safety lock indicator light Lower button: colder h Freezer drawers with freezer calendar i Marker system for frozen food...
  • Page 5: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of your old appliance material Please ensure that the appliance presents no danger to children while The transport and protective packing being stored for disposal. has been selected from materials which are environmentally friendly for It should be unplugged or disposal, and can normally be...
  • Page 6: Warning And Safety Instructions

    Warning and Safety instructions Technical safety This appliance complies with all This appliance contains the coolant relevant legal safety requirements. Isobutane (R600a), a natural gas Improper use can, however, present which is environmentally friendly. a risk of both personal injury and Although it is flammable, it does not material damage.
  • Page 7: Warning And Safety Instructions

    Warning and Safety instructions Before connecting the appliance to Installation work, maintenance and the mains supply, make sure that repairs may only be carried out by the rating on the data plate suitably qualified and competent corresponds to the voltage and persons in accordance with national frequency of the household supply.
  • Page 8 Warning and Safety instructions Do not store explosive materials in the appliance or any products Never handle frozen food with wet containing propellants (e.g. spray hands. Your hands may freeze to cans). Thermostats switching on may the frozen food. Danger of frost burn. produce sparks which could present a Do not take ice cubes out with your fire hazard.
  • Page 9: Disposal Of Your Old Appliance

    Warning and Safety instructions Disposal of your old appliance The appliance is designed for use within certain climate ranges Before disposing of an old (ambient temperatures), and should not appliance, first make the door latch be used outside this range. The climate or lock unusable.
  • Page 10: How To Save Energy

    How to save energy Normal energy consumption Increased energy consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven).
  • Page 11: How To Save Energy

    How to save energy Normal energy Increased energy consumption consumption Defrosting Defrost the freezer when a layer of A layer of ice hinders the cold ice one centimetre thick has built from reaching the frozen food, and causes an increase in energy consumption.
  • Page 12: Switching On And Off

    Switching on and off Before using for the first time Cool pack ^ Clean the inside of the appliance and Place the cool pack in the top drawer. the accessories with warm water and The cool pack will be at its most a little washing up liquid, and then effective after it has been in the freezer dry with a soft cloth.
  • Page 13: Safety Lock

    Switching on and off Safety lock De-activating the safety lock The safety lock can be engaged to prevent the appliance being switched off inadvertently. ^ Press and hold the Super freeze To activate the safety lock button for about 3 seconds. SF will flash, and the safety lock symbol and C will light up in the display.
  • Page 14: Switching Off For Longer Periods Of Time

    Switching on and off Switching off for longer periods of time If the appliance is not going to be used for a longer period of time, e.g. whilst on holiday, ^ switch the appliance off at the mains, ^ withdraw the plug (pull on the plug and not the cable), ^ defrost and clean the appliance out ^ leave the door ajar to air the...
  • Page 15: The Correct Temperature

    The correct temperature Temperature selection It is very important to set the correct temperature for storing food in the The temperature inside the appliance appliance. Micro-organisms will cause can be selected by pressing the +/- food which is not stored at the correct buttons as follows: temperature to deteriorate rapidly.
  • Page 16: Temperature Range

    The correct temperature If you have adjusted the temperature, This loss of coldness is no cause for wait for approx. 6 hours if the concern in the following circumstances: appliance is not very full and for – when the door has been left open for approx.
  • Page 17: Alarm

    Alarm Switching on the alarm system Your appliance has been fitted with a warning system which ensures that the The warning system works temperature in the freezer cannot rise automatically once the temperature in unnoticed. It is always active. the freezer is cold enough. Temperature alarm Switching the alarm off early An alarm will sound if the temperature...
  • Page 18: Super Freeze

    Super freeze Freezing fresh food Super freeze Fresh food should be frozen as quickly Switch the Super freeze function on as possible. This way the nutritional before putting fresh food into the value of the food, its vitamin content, freezer. appearance and taste are not impaired.
  • Page 19 Super freeze Switching Super freeze off Depending on the amount of food placed in the freezer, the Super freeze function will switch off automatically after approx. 30 to 60 hours. The indicator light goes out and the appliance continues running at normal power.
  • Page 20: Freezing And Storing Food

    Freezing and storing food Maximum freezing capacity Home freezing To ensure that fresh food placed in the Only freeze fresh food which is in good freezer freezes through to the core as condition. quickly as possible, the maximum freezing capacity must not be Hints on home freezing exceeded.
  • Page 21: Packing

    Freezing and storing food – Do not place hot food or drinks in the Before placing food in the freezer freezer. This causes already frozen When freezing more than 2 kg of fresh food to thaw and increases the food, switch on the Super freeze energy consumption considerably.
  • Page 22: Freezer Calendar

    Freezing and storing food Freezer calendar Defrosting The freezer calendar on the freezer Frozen food can be defrosted in drawer gives the length of time which different ways: various foods can be stored for – in the microwave oven, effectively. –...
  • Page 23: Ice Cubes

    Freezing and storing food Ice cubes Cool pack (with or without release button The cool pack prevents the depending on model) temperature in the freezer section rising too quickly in the event of a power cut. Place the cool pack directly on top of the food in the top drawer of the freezer.
  • Page 24: Defrosting

    Defrosting In normal use, ice and frost will form on To defrost the evaporator plates. If allowed to Carry out the defrosting procedure accumulate, this will impair the efficiency of the freezer and increase as quickly as possible if food has not been placed in another freezer.
  • Page 25 Defrosting After defrosting ^ Use a sponge or towel to soak up any water from defrosting still in the appliance. ^ Clean the appliance and then dry it thoroughly. ^ Close the appliance door, insert the plug in the socket and switch the appliance back on.
  • Page 26: Cleaning

    E-Cloth apparatus to clean the appliance. ^ A microfibre "E-Cloth" is available Pressurised steam could reach the from the Miele UK Spare Parts electrical components and cause a Department, which is suitable for short circuit. cleaning surfaces such as stainless...
  • Page 27: Metal Grille At The Back Of The Appliance

    Cleaning Metal grille at the back of the appliance The metal grille at the back of the appliance (heat exchanger) should be dusted at least once a year. A build-up of dust will increase the energy consumption of the appliance. When cleaning the grille, make sure that the pipework and other components do not get broken or...
  • Page 28: Problem Solving Guide

    ^ Check that the fuse is not defective and that the mains fuse has not . . . the alarm sounds and the freezer blown. If it has, contact the Miele Ser- section temperature display flashes. vice department. The freezer compartment is too warm, because .
  • Page 29 If it has please contact the Miele Service defrosted or started to defrost check Department. that it is still safe to use, and if so use it as quickly as possible.
  • Page 30: Noises

    Noises Normal noises What causes them Humming noise made by the motor (compressor). This noise can Brrrrr... get louder for brief periods when the motor is switching on. Blubb, blubb..A gurgling noise can be heard when coolant is circulating through the pipes.
  • Page 31: Service Department

    In the event of a fault which you cannot correct yourself, or if the appliance is under guarantee, please contact: – Your Miele Dealer – The Miele Service Department (see back cover for address). When contacting your Dealer or the Service Department, please quote the model and serial number of your appliance.
  • Page 32: Electrical Connection

    Electrical connection Electrical connection U.K. Non-rewireable plugs (BS 1363) All electrical work should be carried out The fuse cover must be re-fitted when by a suitably qualified and competent changing the fuse, and if the fuse cover person in accordance with local and is lost, the plug must not be used until a national safety regulations.
  • Page 33: Installation

    Installation Ventilation Appliances without side wall heating Air at the back of the appliance gets must not be installed "side-by-side" warm. To ensure sufficient ventilation, next to another refrigerator or the ventilation grilles must not be freezer. covered over. The air inlet and outlet must not be covered or blocked in any way.
  • Page 34: Changing The Door Hinging

    Changing the door hinging ^ Use the spanner supplied to unscrew The appliance is supplied right-hand upper hinge pin d and refit it on the hinged. If left-hand door hinging is required follow these instructions. other side. ^ Remove stoppers f, and unscrew handle e.
  • Page 36 Alteration rights reserved / 1605 M.-Nr. 06 498 630 / 01 F 1354 S, F 1365 S...
