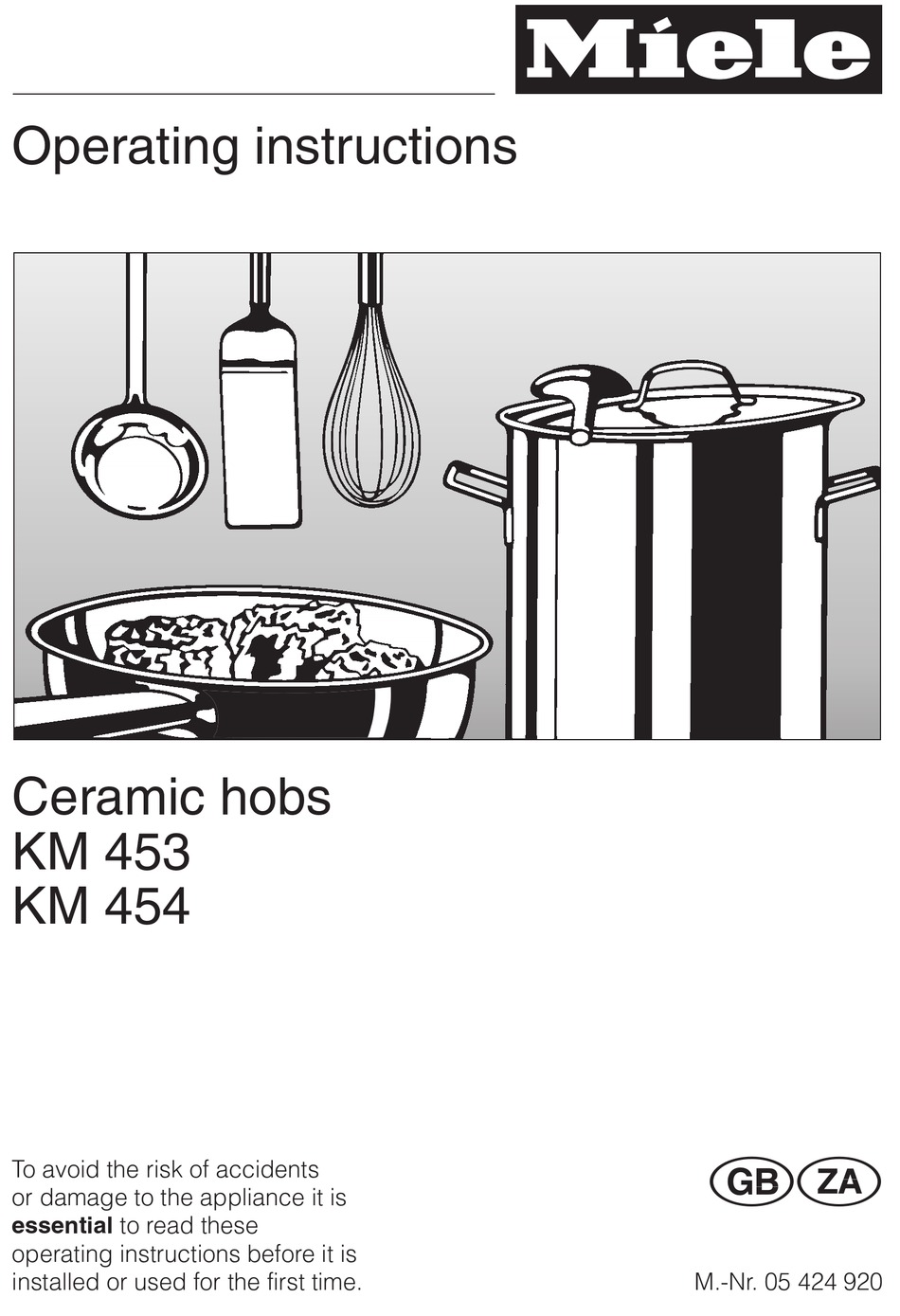

Page 1: Operating Instructions
Operating instructions Ceramic hobs KM 453 KM 454 To avoid the risk of accidents or damage to the appliance it is essential to read these operating instructions before it is installed or used for the first time. M.-Nr. 05 424 920... -
Page 2: Table Of Contents
KM 453........ - Page 3 Contents Timer ............27 To set the minute minder .
-
Page 4: Description Of The Appliance
Description of the appliance KM 453 ac Single circle zones bd Double circle zones Control area Control area Sensor switches for: f Cooking zone controls g Timer (see "Cooking zone controls and displays") i Hob ON / OFF j Safety lock... - Page 5 Description of the appliance KM 454 ad Double circle zones be Single circle zones Extended cooking zone Control area Control area Sensor switches for: g Cooking zone controls h Timer (see "Cooking zone controls and displays") j Hob ON / OFF k Safety lock Indicator light for: i Safety lock...
-
Page 6: Cooking Zone Controls And Displays
Description of the appliance Cooking zone controls and displays Sensor switches for: l Switching on the outer circle of the double circle zone or the extended cooking zone m Sensor switches for selecting the power setting and for switching off the cooking zone Displays: n Outer circle switched on... -
Page 7: Description Of The Cooking Zones
Description of the appliance Description of the cooking zones Cooking KM 453 KM 454 zone ø in cm Rating in watts ø in cm Rating in watts 14.5 1100 14.5 / 21.0 1000 / 2000 14.5 / 21.0 1000 / 2000 14.5... -
Page 8: Warning And Safety Instructions
Warning and Safety instructions Installation and connection This appliance must not be installed over a dishwasher, The appliance must be installed washing machine, tumble dryer, and connected by a suitably refrigerator, freezer or fridge-freezer. qualified and competent person in strict The high temperatures radiated by it accordance with national and local could damage the appliance below. - Page 9 Warning and Safety instructions Correct usage Do not use the appliance to heat up the room. Due to the high To avoid the risk of accidents and temperatures radiated, objects near the damage to the appliance you appliance could catch fire. The life of should read these operating the appliance could also be reduced.
- Page 10 Warning and Safety instructions Safety with children Keep all pans out of reach of children. Turn pan handles inwards The appliance is only intended for away from the edge of the hob. Danger use by adults who have read these of burning or scalding.
- Page 11 Warning and Safety instructions Protecting the appliance from Do not use a steam cleaner to clean this appliance. The steam damage could reach electrical components and Do not drop anything on the cause a short circuit. Pressurised ceramic surface. Even a light steam could also cause permanent object could cause damage in certain damage to the surface and to other...
- Page 12 Warning and Safety instructions Protection from burning and Do not cover the appliance, e.g. with a cloth, kitchen foil, etc. This scalding could be a fire hazard if the appliance The surface of the appliance is hot is switched on by mistake. when in use, and remains hot for Never leave the appliance quite a while after being switched off.
- Page 13 Warning and Safety instructions Appliance faults Further safety notes In the event of damage or a defect, When using an electric socket near switch off the appliance immedi- the appliance, care should be ately. Disconnect completely from the taken that the cable of the electrical electricity supply.
-
Page 14: Caring For The Environment
Caring for the environment Disposal of packing material Disposal of your old appliance The transport and protective packing Electrical and electronic appliances has been selected from materials which often contain materials which, if are environmentally friendly for disposal handled or disposed of incorrectly, and can normally be recycled. -
Page 15: Before Using For The First Time
Before using for the first time General notes Cleaning and heating up for the first time A data plate for your appliance is supplied with this documentation. It Before using for the first time, clean the should be stuck into the space appliance with a damp cloth only and provided at the end of the instruction then wipe dry. -
Page 16: Use
Sensor switches Switching on This hob is equipped with electronic The hob must be switched on before sensor switches which react to finger any of the zones can be used. contact. To operate a cooking zone, touch the To switch the hob on: relevant sensor switch. -
Page 17: Settings
Settings Cooking process Settings 1 - 2 Melting butter, chocolate etc. Dissolving gelatine Preparing yoghurt 1 - 3 Thickening sauces containing egg yolk and butter Warming small quantities of food/liquid Keeping warm food which sticks easily Cooking rice 3 - 5 Warming liquid and half-set foods Thickenings of sauces, e.g. -
Page 18: Cooking Without Auto Heat-Up
Cooking without Auto heat-up Cooking with Auto heat-up When Auto heat-up has been activated, Proceed as follows: the cooking zone switches on automatically at the highest setting and ^ Switch the cooking zone on using the + sensor. Keep the + sensor pressed then switches to the continued cooking in until the required power setting setting which you have previously... - Page 19 How to activate Auto heat-up: You can increase or decrease the continued cooking setting at any time ^ Touch the - sensor and keep it during the heat-up time with the + or - pressed in until the continued sensor. The heat-up time will alter cooking setting you want shows in accordingly.
-
Page 20: Switching On An Extended Cooking Zone
Switching on an extended A short line n will appear in the top left of the light ring to indicate that the cooking zone extended zone has been switched on. The second circle of a double circle zone or the extended cooking zone can be switched on to provide an extended cooking area when cooking with larger pans. -
Page 21: Switching Off And Residual Heat Indicators
Switching off and residual heat The lines go out one after another as the cooking zones cool down. The last indicators horizontal line only goes out when the cooking zones are safe to touch. To switch off a cooking zone: ^ Touch the - and + sensors for the If residual heat indicators are on, do zone you want to switch off at the... -
Page 22: Suitable Pans
Suitable pans Energy saving tips – For optimum energy consumption – Use a pan lid whenever possible to during cooking, only pans with flat or minimise heat loss. very slightly concave bases should be used. When the pan is hot, the base should rest evenly on the hob. -
Page 23: Safety Features
Safety features Safety lock To activate the safety lock: Keep children away from the hob for ^ Touch the safety lock sensor a until their own safety. the relevant indicator light comes on. Your appliance is equipped with a The indicator light will go out after a safety lock to prevent the hob and the short while. -
Page 24: Safety Switch-Off
Safety features Safety switch-off Power setting Maximum length Safety switch-off with an over-long of operating time cooking time in hours Your hob is fitted with a safety switch-off feature in case you forget to switch it off yourself. If one of the cooking zones is heated for an unusually long period of time (see chart), and the power settings are not altered, the hob will switch itself off... - Page 25 Safety features Safety switch-off if the sensors are ^ Clean the control area or remove the obstruction. covered This will turn off the tone and the F will Your hob will switch itself off automatically if one or or more of the go out.
-
Page 26: Overheating Protection
Safety features Overheating protection Overheating can be caused by: Each cooking zone is equipped with – switching on a cooking zone without overheating protection. An internal a pan on it. temperature limiter switches off the – heating up an empty pan. heating elements in the cooking zone –... -
Page 27: Timer
Timer To set the minute minder The hob has two timers, one for the rear left cooking zone w and one for the The timer can only be used as a minute front left cooking zone y. They can be minder when the hob is switched on, used as a minute minder, or for and the cooking zone for that timer is... -
Page 28: Automatically Switching Off A Cooking Zone
Timer Automatically switching off a The time set counts down in minutes. The time left to run shows in the timer cooking zone display. It can be changed at any time The rear left w and front left y cooking by touching the - or + sensor. -
Page 29: Cleaning And Care
E-Cloth Note that some cleaning agents contain A microfibre "E-Cloth" is available from a protective additive designed to the Miele UK Spare Parts Department prevent water marks and smears which is suitable for cleaning surfaces adhering to the surface. such as stainless steel, glass, plastic and chrome without the use of chemicals. - Page 30 Cleaning and care Should any sugar, plastic or aluminium foil spill or fall on to a hot cooking zone while it is in use, first switch off the appliance. Then, immedi- ately, while they are still hot, scrape off all remains of these materials using a shielded scraper blade.
-
Page 31: Problem Solving Guide
Reconnect to the mains supply and lower setting manually later on. switch the appliance on. If it still does not heat up then contact a qualified electrician or the Miele Service Department. - Page 32 The sensitivity level of the sensors has changed. It can be corrected as If this action does not solve the problem follows: please call the Miele Service department. – Make sure that there is no direct light (from the sun or from an artificial source) falling onto the hob and that the surrounding area is not too dark.
-
Page 33: Electrical Connection
Electrical connection Connection should be made via a All electrical work should be carried suitable isolator which complies with out by a suitably qualified and national and local safety regulations, competent person in strict and the On/Off switch should be easily accordance with national and local accessible after the appliance has safety regulations. - Page 34 Electrical connection WARNING THIS APPLIANCE MUST BE EARTHED The electrical safety of this appliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system, which complies with local and national regulations. It is most important that this basic safety requirement is regularly tested and if there is any doubt, the electrical wiring in the home...
-
Page 35: After Sales Service
In the event of any faults which you cannot remedy yourself, please contact – Your Miele Dealer – The Miele Service Department (see address on back cover). When contacting your Dealer or the Service Department, please quote the model and serial number of your appliance. These are given on the data plate. - Page 36 Alteration rights reserved / 4004 M.-Nr. 05 424 920 / 04 en - GA Z...
