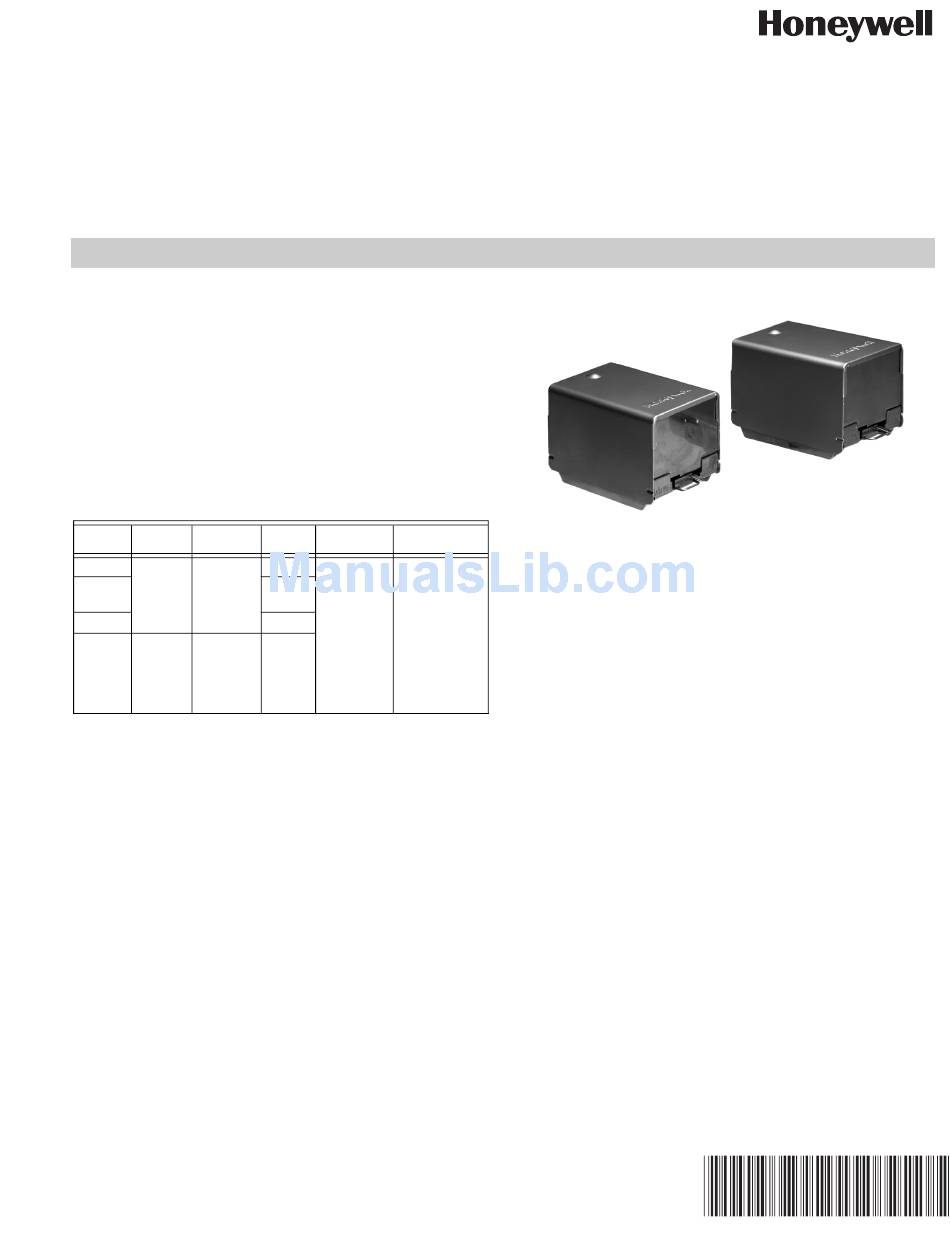

VU443A; VU444A; VU843A; VU844A
Fan Coil Valve Actuators
The VU443, VU444, VU843, and VU844 Fan Coil Valve
Actuators are used in conjunction with the VU52, VU53, and
VU54 fan coil valves for controlling the flow of hot or chilled
water. These valves are humidity resistant and are suitable for
use in condensing, non-corrosive environments.

SPECIFICATIONS

Actuator Electrical Rating & Connections: 10 VA maxi-
mum.
Control
Current
Model
CIrcuit
Draw (A)
VU443A
VU443E
120V,
0.07
60Hz
VU444A
VU843A
24V,
0.32
VU844A
50-60Hz
Note: Motors for all the above models are Class A, Plated.
End
Connection
Switch
/Leads
Application
None
2-way, normally
open (use
SPST
6" motor
VU444,
leads
VU844);
standard.
None
2-way, normally
closed (use
VU443,
18", 36", or
None
VU843);
96"
Leadwires
3-way, diverting
optional.
(use VU444,
VU844).
End Switch Rating:
2.2 A inductive from 5 to 110 Vac.
1.0 A inductive above 110 Vac to 277 Vac.
Min. DC switching capability: 5 mA @ 24 Vdc.
Maximum Ambient @ Fluid Temperature Rating:
Standard models (with class A motor):
125° F (52° C) ambient @ 200° F (93° C) fluid.
Minimum Ambient Temperature: 34° F (1° C).
Shipping and Storage Temperature: -40° F to 150° F (-40°
C to 65° C).
Atmosphere: Non-corrosive, non-explosive, condensing.
Noise Rating: Low noise - non-obtrusive.
Materials:
Case: stainless steel.
Cover: aluminum.
Sector gear: reinforced with KEVLAR
®
KEVLAR
is a Dupont registered trademark.
Approvals: CSA C/US Certified.
Dimensions: See Fig. 1.
PRODUCT DATA
®
brand fiber.
Put Bar Code Here
95C-10883-03

Advertisement

loading

  Related Manuals for Honeywell VU443A

  Summary of Contents for Honeywell VU443A

  • Page 1: Specifications

    VU443A; VU444A; VU843A; VU844A Fan Coil Valve Actuators PRODUCT DATA The VU443, VU444, VU843, and VU844 Fan Coil Valve Actuators are used in conjunction with the VU52, VU53, and VU54 fan coil valves for controlling the flow of hot or chilled water.
  • Page 2 VU443A; VU444A; VU843A; VU844A FAN COIL VALVE ACTUATORS 1-3/4 1-3/4 (44) (44) (10) 2-3/8 7/8 DIA. (22) (60) VU ACTUATOR 3-3/4 1-3/4 1-3/4 (133) (44) (44) 1-1/2 (38) (10) 15/32 (12) 7/8 (23) 2-WAY VU52 OR VU53 VALVE WITH ACTUATOR 3-WAY HEIGHT NEEDED TO REMOVE ACTUATOR OR COVER.
  • Page 3 VU443A; VU444A; VU843A; VU844A FAN COIL VALVE ACTUATORS TO ATTACH FLEXIBLE CONDUIT 1. Strip cable jacket. 2. Fit conduit strain relief onto cable. 3. Slide strain relief nut over wires. ACTUATOR COUPLING 4. Connect cable and actuator wires. 5. Slide cable wires down through slot in the wiring hole, so that the strain relief nut is inside the actuator hous- ing.
  • Page 4 VU443A; VU444A; VU843A; VU844A FAN COIL VALVE ACTUATORS CHECKOUT MANUAL OPERATION The 2-way normally closed and 3-way motorized valve actuators can be opened manually by lifting the manual SET TO HEATING MODE opening lever over the stop and pushing slowly and firmly to 1.
