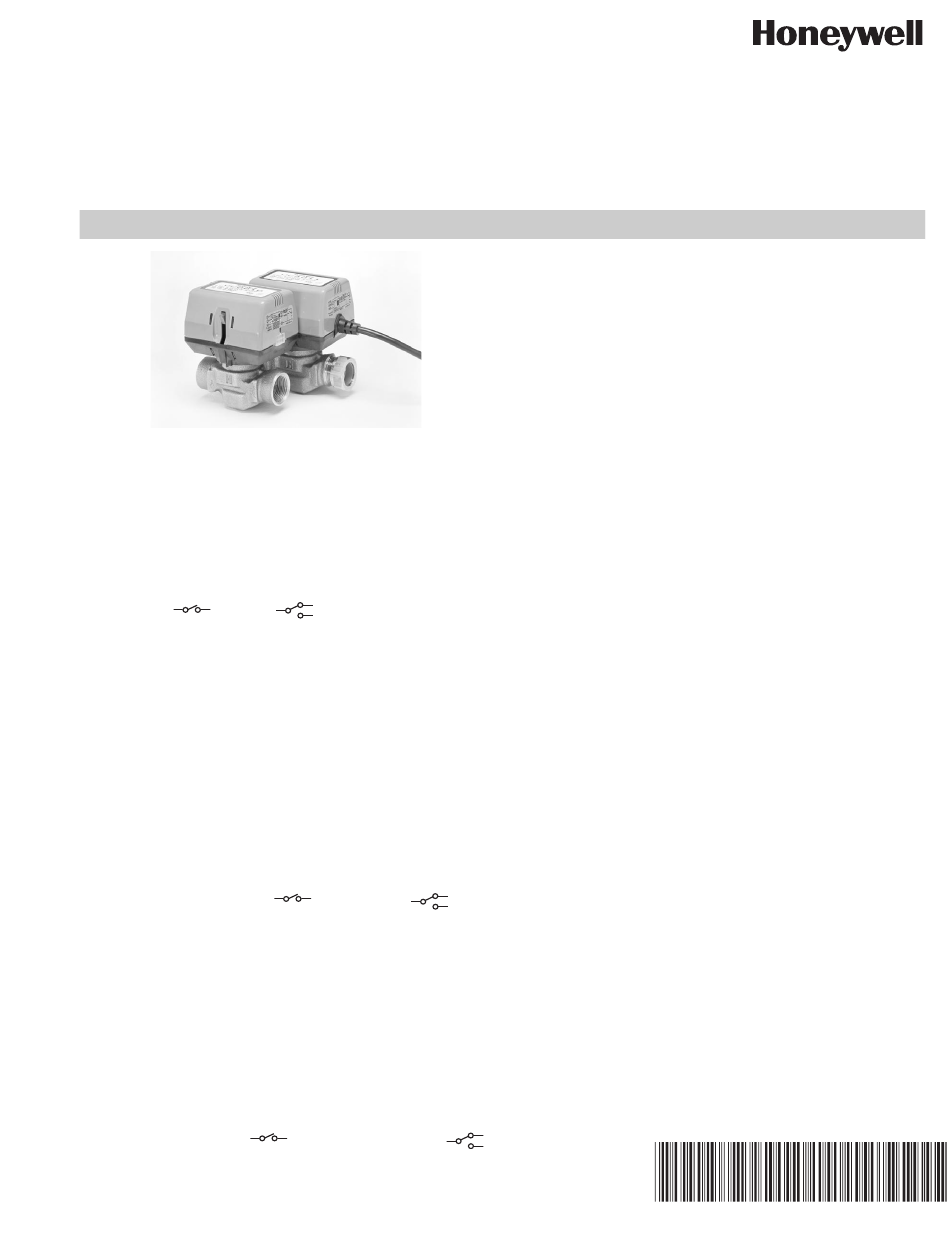

Honeywell VC6613AJ1000 Mounting Instructions

2-way, balanced valves
Hide thumbs


Advertisement

Quick Links

2-Way, Balanced Valves
VALVOLE A 2 VIE BILANCIATE
VÁLVULAS DE 2 VÍAS, EQUILIBRADAS
MOUNTING INSTRUCTIONS / ISTRUZIONI DI MONTAGGIO / INSTRUCCIONES DE MONTAJE
APPLICATION
The VC series 2-position hydronic valves are used in
domestic and small commercial applications to control the
flow of hot and/or cold water or glycol solution to 50%
concentration. They consist of an actuator, valve and a
replaceable cartridge assembly. These 2-Way valves are
designed for ON-OFF "Zone" control of domestic systems, or
for individual room temperature control. Depending on the
model selected, they can be controlled by either a low or line
voltage SPST
or SPDT
thermostat, a chronotherm or other suitable two-position
controller.
APPLICAZIONE
Le valvole motorizzate a 2 posizioni Serie VC trovano impiego
in ambito domestico ed in piccoli edifici ad uso commerciale
per il controllo della portata dell'acqua calda e/o fredda o in
soluzione con glicole, in concentrazione fino al 50%.
Consistono di un attuatore e da corpo valvola dotato di
otturatore, con guida a lanterna sostituibile.
Le valvole VC 2 vie sono indicate per controllo ON-OFF di
sistemi di riscaldamento domestico a zone oppure di
temperatura ambiente individuale. Possono essere
comandate da un termostato, un cronotermostato o altro
regolatore appropriato, con contatto, a tensione di linea o a
bassa tensione, di tipo SPST
base al modello selezionato.
APLICACIÓN
Las válvulas de 2 posiciones Serie VC se usan en
aplicaciones domésticas y pequeños edificios para controlar
el caudal de agua caliente o fría o de una solución de glicol de
hasta el 50% de concentración. Constan de un actuador,
válvula y un cartucho que se puede sustituir.
Estas válvulas de 2 vías están diseñadas para control de
"Zona" ON-OFF en sistemas domésticos o para control
individual de temperatura de habitaciones. Dependiendo del
modelo seleccionado, se pueden controlar mediante un
interruptor unipolar SPST
controller, such as a room
oppure SPDT
, in
o un controlador SPDT
de voltaje bajo o de línea, como un termostato de ambiente,
un Chronotherm u otro controlador adecuado de dos
posiciones.
SPECIFICATIONS
The following specifications are nominal and conform to
generally accepted industry standards. Honeywell is not
responsible for damages resulting from misapplication or
misuse of its products.
Voltage:230V 50-60Hz, standard models. 24V 50Hz models
are available on request.
Power consumption:6 Watts Max. at nominal Voltage
(during valve position change).
Maximum duty cycle:15%
End switch rating:
2.2 A inductive from 5 to 11 Vac
1.0 A inductive above 110 to 277 Vac
Min. DC switching capability: 5 mA @ 24 Vdc
Nominal timing:Valve opens in 6 seconds @ 60Hz (20%
longer @ 50Hz)
Electrical termination:
With integral 1 meter leadwire cable, standard models.
Models with Molex™ connector are available on request.
Operating ambient temperature:0 to 65°C
Shipping & storage temperature:-40 to +65°C
Atmosphere:non-corrosive, non-explosive
Min. & max. fluid temperatures:1 to 95°C
Operating pressure differential:Max. - 4 bar (400 kPa)
Pressure rating:Static - 20 bar (2000 kPa)
Valve materials:Body of bronze; cartridge of Ryton™
(polyphenylene sulphide) & Noryl™ (polyphenylene oxide);
O-ring seals of EPDM rubber; stainless steel stem.
Dimensions/pipe fitting sizes/flow ratings (nominal Kv):
See Table 1.
Insulation class:Double insulation
Protection class:IP40
Approval:CE
Put Bar Code Here
95C-10936EIS-01

Advertisement

loading

  Related Manuals for Honeywell VC6613AJ1000

  Summary of Contents for Honeywell VC6613AJ1000

  • Page 1 Chronotherm u otro controlador adecuado de dos posiciones. SPECIFICATIONS The following specifications are nominal and conform to generally accepted industry standards. Honeywell is not responsible for damages resulting from misapplication or misuse of its products. Voltage:230V 50-60Hz, standard models. 24V 50Hz models are available on request.
  • Page 2: Dati Tecnici

    Honeywell non è estándares normalmente aceptados en la industria. responsabile per danni risultanti da applicazioni improprie o Honeywell no se hace responsable de los daños que resulten uso errato dei propri prodotti. de la aplicación o uso incorrecto de sus productos.
  • Page 3 2-WAY, BALANCED VALVES 3-3/4 (94) 2-3/4 (68) 3-9/16 (90) Fig. 2. Flow direction / Direzione del flusso / Dirección del flujo Fig. 1. Dimensions (mm) / Dimensioni (mm) / Dimensiones (mm) Table 2. Selection Key/ Tab. 2. Chaive de Sleezione/ Tabla 2. Guía de Selección Valve Body/Corpo Valvola/Cuerpo de válvula VC 6613 AF 1000 Actuator/Attuatore/Actuador...
  • Page 4: Installation

    2-WAY, BALANCED VALVES INSTALLATION INSTALACIÓN GENERAL NOTES NOTAS GENERALES The following instructions refer to the version of VC valve with Las siguientes instrucciones se refieren a la versión de BSPP thread connection for Trade market application, as válvula VC con conexión de rosca BSPP para aplicaciones listed in Table 1.
  • Page 5 2-WAY, BALANCED VALVES INSTALACIÓN Commissioning hydronic system 1. Aunque no es necesario, se puede retirar el actuador For trouble-free operation of the product, good del cuerpo para facilitar la instalación. installation practice must include initial system flushing, 2. Para quitar el actuador no se necesitan herramientas. chemical water treatment, and the use of fine system side La cabeza del actuador engancha automáticamente en stream filter(s).
  • Page 6: Collegamenti Elettrici

    2-WAY, BALANCED VALVES Figs. 7 and 8 show wiring diagrams as printed on product label for the Cable Model and Molex™ Model for use with SPDT controller. Figs. 9 and 10 show wiring connections with SPDT and SPST controllers. Port “A” open and closed denote valve open and closed positions respectively.
  • Page 7 2-WAY, BALANCED VALVES Tabla A. Terminación Eléctrica- ‘Colores y Números de Pin’ Tablella A. Collegamenti Elettrici ‘Colori & Numeri dei Pin’ Tipo de Valvula de 2 Attuatore Actuador Modelos de Cable Modelos Molex™ Vías Tipo Versioni con Cavo Versioni Molex™ Valvola a 2 Vie 2-hilos + Azul y negro energizados...
  • Page 8: Checkout And Service

    3. Se il motore o alcune sue parti sono difettose, sostituire l’interno attuatore. CHECKOUT AND SERVICE NOTA: La valvola Honeywell per acqua sono progettate e collaudate per funzionamento silensioso in sistemi progettati ed installati a regola d’arte. Tuttavia il CHECKOUT rumore dovuto all’acqua può...
