Universal telephone alert

Advertisement

Quick Links

273 Branchport Ave.
Long Branch, NJ 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
MODEL: UTA-1

GENERAL INFORMATION:

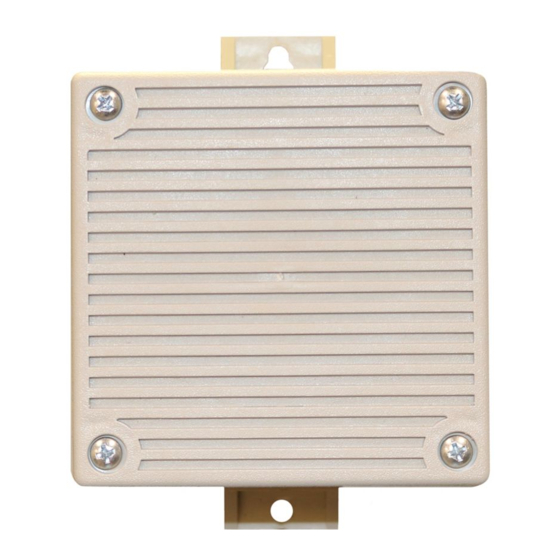

The UTA is a loud attention getting electronic ringer designed for use in noisy locations or for wide area coverage. It is FCC and
DOC Registered for the public telephone network and can be used behind PBX and key systems that use interrupted ring voltages
from 40-130V, 20-30Hz or 18-30VDC/VAC or 36-60VDC.
The UTA, when used indoors, will accommodate a modular plug that mates with an RJ-11C jack (USA) or a CA-11 jack (Canada) for
ringing voltage. UTA operates directly off the telephone ringing voltage with low current drain to minimize line loading.
UTA offers a choice of four selectable sound patterns (horn, bell, single chime or vibrating chime) with a volume control. The UTA
is equipped with a weather resistant backbox for optional outdoor use with conduit enclosed wiring.

APPLICATION INFORMATION:

The installation of this product must conform to the following instructions. IF ANY WORDS OR LETTERS APPEAR ON THE
PRODUCT INDICATING A PARTICULAR USE, THE PRODUCT MUST BE USED ONLY IN THE MANNER SO
INDICATED. FIELD ADJUSTMENT, REPAIR OR MODIFICATION OF THESE SIGNALS SHOULD NOT BE ATTEMPTED.
Malfunctioning units should be returned for factory repair or replacement in accordance with Wheelock Inc.'s published terms and
conditions.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
CAUTION: The installation of this equipment should only be undertaken by qualified personnel.
WARNING: SHUT OFF ALL POWER BEFORE INSTALLING. ELECTRICAL SHOCK CAN CAUSE DEATH OR
SERIOUS INJURY.

FCC REGULATIONS:

This equipment complies with Part 68 of the FCC Rules. The label affixed to this product contains, among other information, the
FCC Registration Number and the Ringer Equivalence Number (REN) for this product. This information must be provided to the
telephone company if requested.
The REN is used to determine the quantity of devices which you may connect to your telephone line and still have all of those
devices ring when your telephone number is called. In most, but not all areas, the sum of the REN's of all devices connected to
one line should not exceed five (5.0). To be certain of the number of devices that you may connect to your line, contact your
local telephone company.
This equipment should not be used on coin telephone lines. Connection to party line service is subject to state tariffs.
If trouble is experienced, disconnect this equipment from the telephone line to determine if it is causing the malfunction. If the
equipment is determined to be malfunctioning, its use shall be discontinued until the problem has been corrected.
Should the equipment cause harm to the telephone network, the telephone company shall, if possible, notify the customer that
temporary discontinuance of service may be required; however, where prior written notice is not possible, the telephone company
may temporarily discontinue service without notice, if such action is necessary under the circumstances. The telephone company
may make changes in its communication facilities, equipment and operations procedures, where such action is reasonably
required in the operation of its business and is not inconsistent with the rules and regulations of the Federal Communications
Commission.
Copyright 1995, 1996, 1998, 1999, 2000 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
UNIVERSAL TELEPHONE ALERT
. All warnings are printed in bold capital letters.
P82968 H
Sheet 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTA-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wheelock UTA-1

  • Page 1 PRODUCT INDICATING A PARTICULAR USE, THE PRODUCT MUST BE USED ONLY IN THE MANNER SO INDICATED. FIELD ADJUSTMENT, REPAIR OR MODIFICATION OF THESE SIGNALS SHOULD NOT BE ATTEMPTED. Malfunctioning units should be returned for factory repair or replacement in accordance with Wheelock Inc.'s published terms and conditions.
  • Page 2 INDUSTRY CANADA (IC) REGULATIONS: (Only applicable for use in Canada) • The Industry Canada (IC) label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and safetey requirements as prescribed in the appropriate Terminal Equipment Technical requirements documents(s).
  • Page 3 Table 4: Duty and Ring Cycle Cycle 90Vrms/20-30Hz 24VDC/AC, 48VDC Duty Cycle 33% Max. 100% Max. Min. Ring Cycle ON Time 0.8 Sec. 0.5 Sec. Min. Ring Cycle OFF Time 1.6 Sec. 0.5 Sec. Max. Ring Cycle ON Time 10 Sec. Continues UTA SETTINGS: The SW1 and SW2 switches of the UTA are used to set input voltage and desired tone as shown in Figure 2 and Table 5.
  • Page 4 : These devices are not intended for use in hazardous locations as defined by the National Electrical Code (NEC) and CAUTION by the National Fire Protection Association (NFPA). Contact Wheelock Inc. for information on explosion-proof devices designed for hazardous locations.
  • Page 5 ON ANY CLAIM OF ANY KIND SHALL CEASE IMMEDIATELY UPON THE INSTALLATION IN THE PRODUCT OF ANY PART NOT FURNISHED BY WHEELOCK. IN NO EVENT SHALL WHEELOCK BE LIABLE FOR ANY EVENT, INCLUDING IN THE CASE OF A CLAIM OF NEGLIGENCE, SHALL WHEELOCK BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CLAIM OF ANY KIND UNLESS IT IS PROVEN THAT OUR PRODUCT WAS A DIRECT CAUSE OF SUCH CLAIM.
