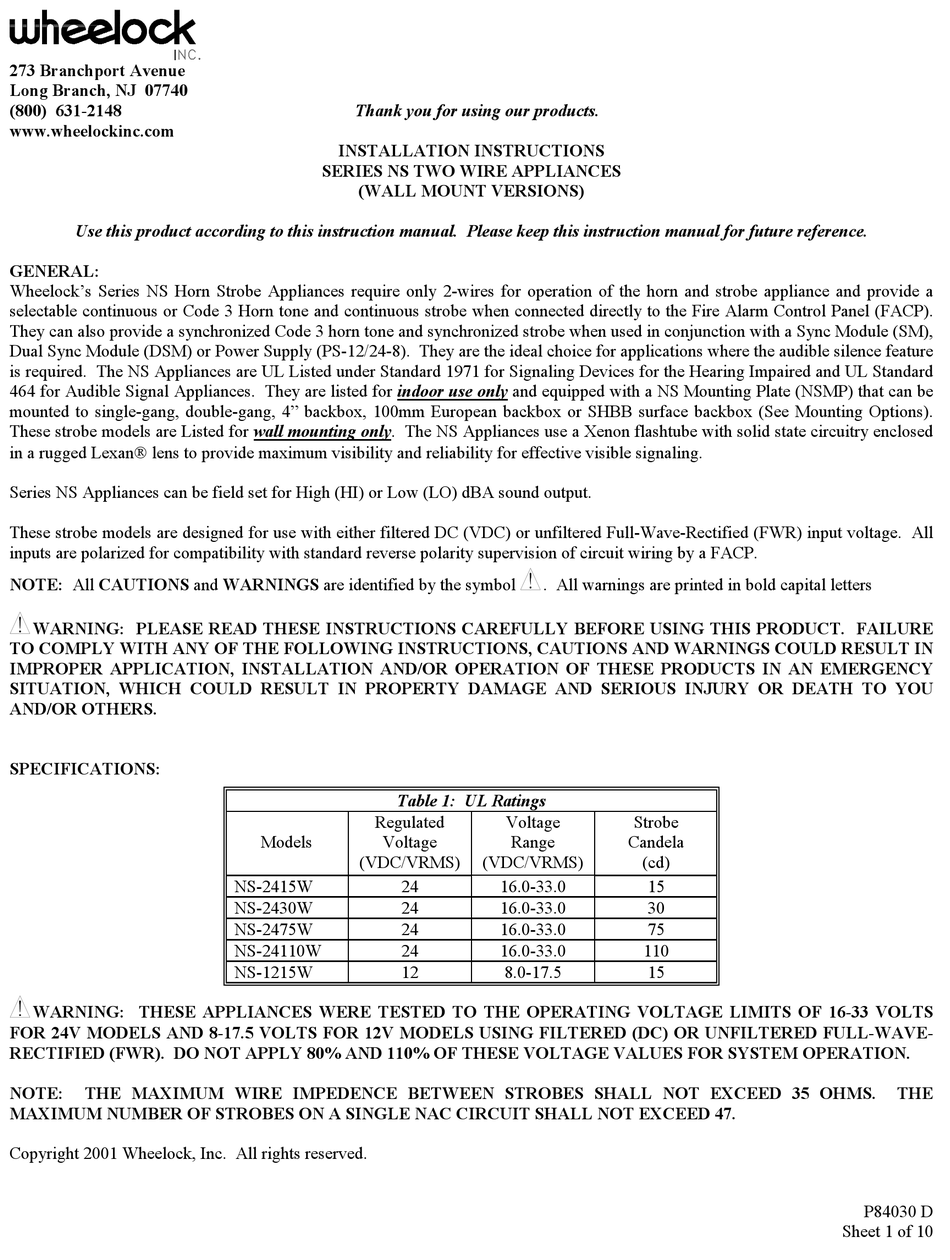

Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Wheelock's Series NS Horn Strobe Appliances require only 2-wires for operation of the horn and strobe appliance and provide a
selectable continuous or Code 3 Horn tone and continuous strobe when connected directly to the Fire Alarm Control Panel (FACP).
They can also provide a synchronized Code 3 horn tone and synchronized strobe when used in conjunction with a Sync Module (SM),
Dual Sync Module (DSM) or Power Supply (PS-12/24-8). They are the ideal choice for applications where the audible silence feature
is required. The NS Appliances are UL Listed under Standard 1971 for Signaling Devices for the Hearing Impaired and UL Standard
464 for Audible Signal Appliances. They are listed for indoor use only and equipped with a NS Mounting Plate (NSMP) that can be
mounted to single-gang, double-gang, 4" backbox, 100mm European backbox or SHBB surface backbox (See Mounting Options).
These strobe models are Listed for wall mounting only. The NS Appliances use a Xenon flashtube with solid state circuitry enclosed
in a rugged Lexan lens to provide maximum visibility and reliability for effective visible signaling.

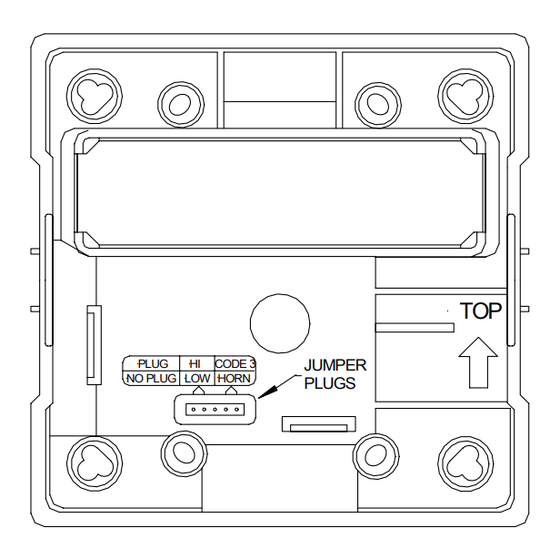

Series NS Appliances can be field set for High (HI) or Low (LO) dBA sound output.
These strobe models are designed for use with either filtered DC (VDC) or unfiltered Full-Wave-Rectified (FWR) input voltage. All
inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring by a FACP.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE
TO COMPLY WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN
IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY
SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.
SPECIFICATIONS:
WARNING: THESE APPLIANCES WERE TESTED TO THE OPERATING VOLTAGE LIMITS OF 16-33 VOLTS
FOR 24V MODELS AND 8-17.5 VOLTS FOR 12V MODELS USING FILTERED (DC) OR UNFILTERED FULL-WAVE-
RECTIFIED (FWR). DO NOT APPLY 80% AND 110% OF THESE VOLTAGE VALUES FOR SYSTEM OPERATION.
NOTE:
THE MAXIMUM WIRE IMPEDENCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS.
MAXIMUM NUMBER OF STROBES ON A SINGLE NAC CIRCUIT SHALL NOT EXCEED 47.
Copyright 2001 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SERIES NS TWO WIRE APPLIANCES
(WALL MOUNT VERSIONS)
Table 1: UL Ratings
Regulated
Models
Voltage
(VDC/VRMS)
NS-2415W
24
NS-2430W
24
NS-2475W
24
NS-24110W
24
NS-1215W
12
. All warnings are printed in bold capital letters
Voltage
Strobe
Range
Candela
(VDC/VRMS)
(cd)
16.0-33.0
15
16.0-33.0
30
16.0-33.0
75
16.0-33.0
110
8.0-17.5
15
THE
P84030 D
Sheet 1 of 10
