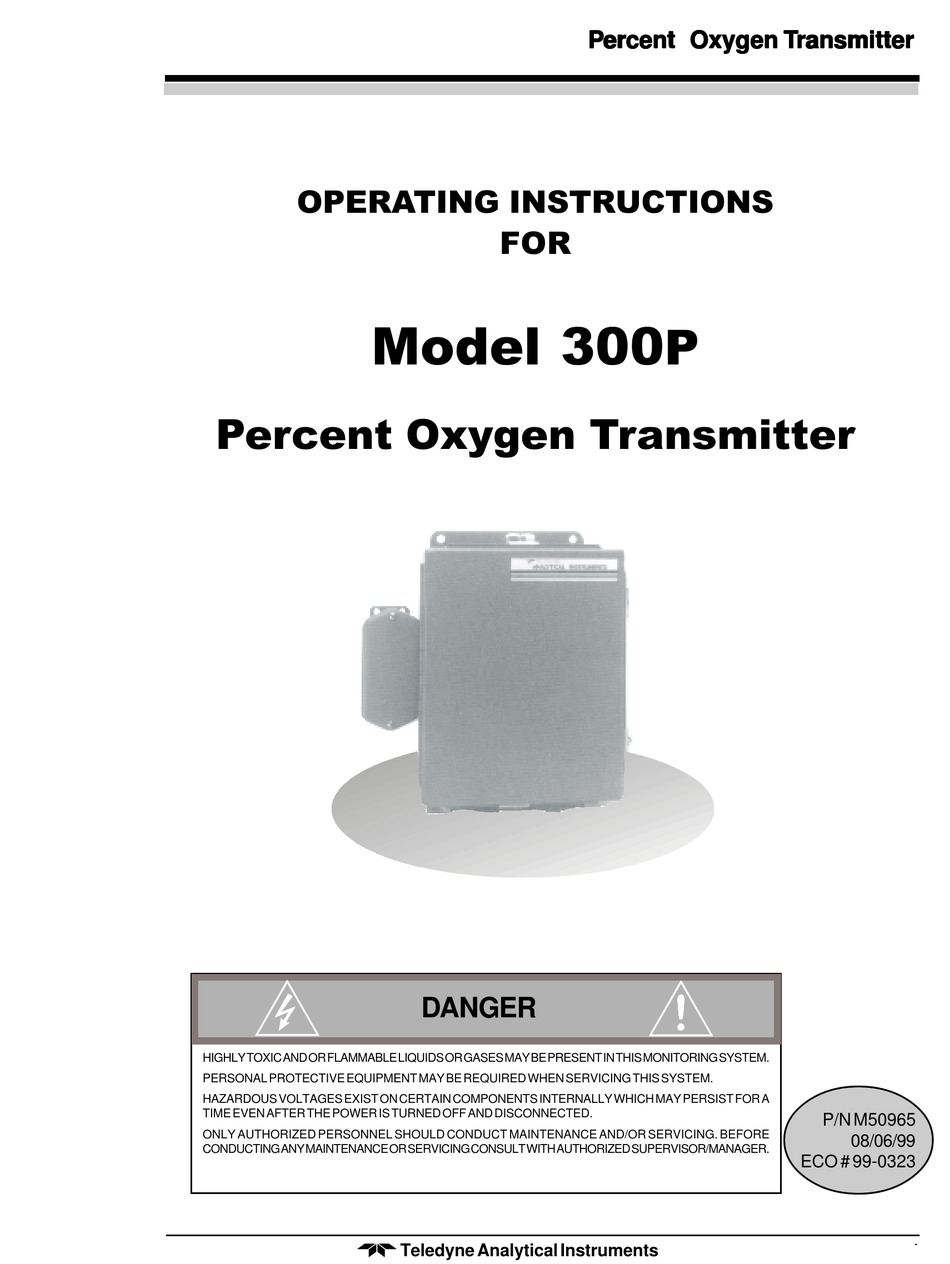

Teledyne 300P Operating Instructions Manual

Percent oxygen transmitter

Advertisement

Quick Links

HIGHLY TOXIC AND OR FLAMMABLE LIQUIDS OR GASES MAY BE PRESENT IN THIS MONITORING SYSTEM.
PERSONAL PROTECTIVE EQUIPMENT MAY BE REQUIRED WHEN SERVICING THIS SYSTEM.
HAZARDOUS VOLTAGES EXIST ON CERTAIN COMPONENTS INTERNALLY WHICH MAY PERSIST FOR A
TIME EVEN AFTER THE POWER IS TURNED OFF AND DISCONNECTED.
ONLY AUTHORIZED PERSONNEL SHOULD CONDUCT MAINTENANCE AND/OR SERVICING. BEFORE
CONDUCTING ANY MAINTENANCE OR SERVICING CONSULT WITH AUTHORIZED SUPERVISOR/MANAGER.
DANGER
Teledyne Analytical Instruments
P P P P P er er er er ercent Oxyg
cent Oxygen
cent Oxyg
cent Oxyg
en T T T T T ransmitter
en
en
cent Oxyg
en
ransmitter
ransmitter
ransmitter
ransmitter
P/N M50965
08/06/99
ECO # 99-0323
i

Advertisement

Table of Contents
loading

Summary of Contents for Teledyne 300P

  • Page 1 HAZARDOUS VOLTAGES EXIST ON CERTAIN COMPONENTS INTERNALLY WHICH MAY PERSIST FOR A TIME EVEN AFTER THE POWER IS TURNED OFF AND DISCONNECTED. P/N M50965 ONLY AUTHORIZED PERSONNEL SHOULD CONDUCT MAINTENANCE AND/OR SERVICING. BEFORE 08/06/99 CONDUCTING ANY MAINTENANCE OR SERVICING CONSULT WITH AUTHORIZED SUPERVISOR/MANAGER. ECO # 99-0323 Teledyne Analytical Instruments...
  • Page 2 Any safeguards required such as locks, labels, or redun- dancy, must be provided by the user or specifically requested of Teledyne at the time the order is placed.
  • Page 3: Table Of Contents

    3.3 Operating The Oxygen Transmitter ......... 3-3 4 Maintenance 4.1 Routine Maintenance ............. 4-1 4.2 Cell Replacement ............4-1 4.3 Cell Warranty ..............4-2 Appendix Specifications ................ A-1 Recommended Spare Parts List ..........A-2 Drawing List ................A-2 Teledyne Analytical Instruments...
  • Page 4 Model 300P Model 300P Model 300P Model 300P Model 300P complies with all of the requirements of the Com- monwealth of Europe (CE) for Radio Frequency Interference, Elec- tromagnetic Interference (RFI/EMI), and Low Voltage Directive (LVD). The following International Symbols are used throughout the Instruc-...
  • Page 5: Introduction

    The Percent Oxygen Transmitter is equipped with two oxygen analysis ranges, 0–25% and 0–20.9% (air calibration range). The Model 300P is approved by Factory Mutual (FM) as intrinsically safe for opera- tion in Class 1, Division 1, Groups A, B, C, and D hazardous environ- ments.
  • Page 6: Typical Applications

    Compact size, easy to install Typical Applications The Model 300P Percent Oxygen Transmitter is capable of monitor- ing oxygen at the % level in a variety of gases. It is widely used in indus- try. A few typical applications are: •...
  • Page 7: Operational Theory

    Concentric Foil Screen loaded contacts in the sensor Contact Rings block assembly and provide the electrical connection to the rest of the analyzer. The sensing cathode, located beneath the diffu- Figure 2-1: Micro-Fuel Cell Teledyne Analytical Instruments...
  • Page 8: Circuit Description

    (See Appendix - Material Safety Data Sheet (MSDS)). Circuit Description The 300P circuitry consists of four stages: an input stage, a tempera- ture compensation/ gain stage, a low-pass filter and an output voltage-to- current stage. The output of the O cell is a current directly proportional to the amount of oxygen present.
  • Page 9: Rfi Protection

    ). This is about 2 nA per ppm. RFI Protection The Model 300P is designed to be RFI protected by virtue of the electronics being mounted inside a grounded metallic enclosure. The RFI protection, therefore, is maximized when the enclosure door is closed.
  • Page 10 2 2 2 2 2 Operational Theory Model 300P Teledyne Analytical Instruments...
  • Page 11: Operation

    26 VDC and 125 3.1.1 System Power Requirements The Model 300P Percent Oxygen Transmitter requires a 24 VDC (nominal), reverse polarity protected power source. The maximum and minimum voltage is dependent on the safety barrier used.
  • Page 12: Calibration

    3 Operation 3 Operation 3 Operation Model 300P 3 Operation 3 Operation 2. Connect the 2-wire shielded cable to the three terminal barrier strip. 3. Replace the cover and screws. Calibration The calibration process consists of: • Installing a milliammeter in series with the output signal as described below •...
  • Page 13: Operating The Oxygen Transmitter

    24% Oxygen. Oxygen concentrations above 24% under extreme conditions can cause the instrument to produce unreliable read- ings on the 0–25% oxygen scale. Use this range for gas mixtures containing 0–24% oxygen only. Teledyne Analytical Instruments...
  • Page 14 3 Operation 3 Operation 3 Operation Model 300P 3 Operation 3 Operation TeledyneAnalytical Instruments...
  • Page 15: Maintenance

    NOTE: Do not disturb the integrity of the cell package until the cell is to actually be used. If the cell package is punctured and air is permit- ted to enter, the useful life of the cell will be adversely affected. Teledyne Analytical Instruments...
  • Page 16: Cell Warranty

    Press up on the cap and rotate until it threads. Tighten the cap. Cell Warranty The Class B-1 cell employed in the Model 300P is warranted for six months of service. Other special cells may be used on occasion, depending upon the application.
  • Page 17 If it is determined that failure is due to faulty workmanship or material, the cell will be replaced at no cost to the cus- tomer. NOTE: Evidence of damage due to tampering or mishandling will render the cell warranty null and void. Teledyne Analytical Instruments...
  • Page 18 4 Maintenance 4 Maintenance 4 Maintenance Model 300P 4 Maintenance 4 Maintenance Teledyne Analytical Instruments...
  • Page 19: Appendix

    61 seconds @ 77°F (25°C). Operating Temperature: 32–122°F (0–50°C) Stability: ± 1% in 24 hours (at constant temperature) Reproducibility: ± 1% of full scale at constant temperature Sensor Type: Micro-Fuel Cell class B-3 Signal Output: 4–20 mA DC Teledyne Analytical Instruments...
  • Page 20: Recommended Spare Parts List

    B-50966 Outline Diagram B-49326 Wiring Diagram A-41453 Interconnection Diagram B-48671 Schematic — 2 Wire Transmitter NOTE: The MSDS on this material is available upon request through the Teledyne Environmental, Health and Safety Coordinator. Contact at (626) 934-1592 Teledyne Analytical Instruments...
  • Page 21 Product Name: Micro-Fuel Cells Mini-Micro-Fuel Cells, all classes Super Cells, all classes except T–5F Electrochemical Oxygen Sensors, all classes. Manufacturer: Teledyne Analytical Instruments Address: 16830 Chestnut Street, City of Industry, CA 91749 Phone: (818) 961-9221 Date Prepared or Last Revised: 08/08/91...
  • Page 22 Appendix Appendix Appendix Appendix Model 300P Section III – Physical Hazards Potential for fire and explosion: The electrolyte in the Micro-Fuel Cells is not flam- mable. There are no fire or explosion hazards associated with Micro-Fuel Cells. Potential for reactivity: The sensors are stable under normal conditions of use.
  • Page 23 The information is believed to be correct but does not purport to be all inclu- sive and shall be used only as a guide. Teledyne Analytical Instruments shall not be held liable for any damage resulting from handling or from contact with the above product.
  • Page 24 Appendix Appendix Appendix Appendix Appendix Model 300P Teledyne Analytical Instruments...
