Removal; Elt/Nav Interface; Figure 5. Elt/Nav Interface Removal - COBHAM ELT/NAV INTERFACE Abbreviated Component Maintenance Manual

TASK 25-69-10-050-801

1. ELT/NAV Interface

SUBTASK 25-69-10-050-001
A.

Removal

(1) See "Figure 5. ELT/NAV Interface Removal".
(2) Disconnect ELT/NAV Interface plugs:
(a) P2, and
(b) P1, if installed.
(3) Install connector covers to protect the ELT/NAV Interface receptacles.
(4) Remove the screws attaching the ELT/NAV interface to the mounting structure.
REMOVE SCREWS
3
(6 PLCS)
MOUNTING
STRUCTURE
(REF.)
COBHAM AVIONICS WULFSBERG ELECTRONICS
ABBREVIATED COMPONENT MAINTENANCE MANUAL
453-6500
REMOVAL
ELT/NAV
INTERFACE

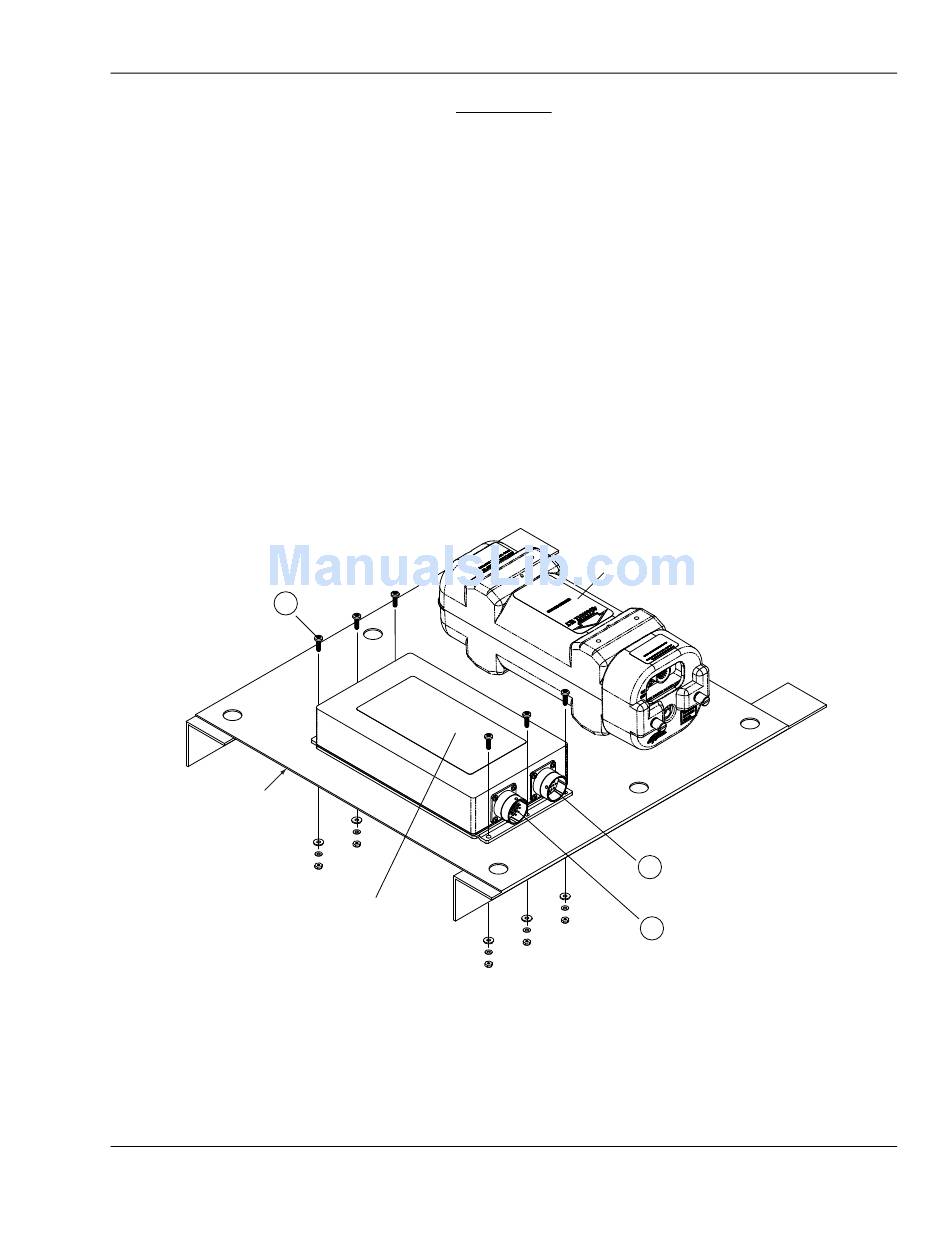

Figure 5. ELT/NAV Interface Removal

ELT (REF.)
2 REMOVE P1, IF INSTALLED
NOTE: CABLES AND PLUGS
NOT SHOWN FOR CLARITY.
1 REMOVE P2
25-69-10
Page 39 of 58
APR 06/10
