Please read this manual and save it
with your original sales receipt.
Tools needed for assembly: Phillips
Screwdriver, Slotted Screwdriver and
Hammer (all not included).
Use only with a Power Wheels
®
(4.0 Amp/Hr.) Rechargeable Battery with
Built-in Thermal Fuse and a Power Wheels
6 Volt (4.0 Amp/Hr.) Charger (both included).
6 Volt
®
Product features may vary
Product features may vary
Product features may vary
from the picture above.
from the picture above.
from the picture above.
Owner's Manual
Owner's Manual
Owner's Manual
with Assembly Instructions
with Assembly Instructions
with Assembly Instructions
For Model M0411
For Model M0411
For Model M0411

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M0411 and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher-Price M0411

Summary of Contents for Fisher-Price M0411

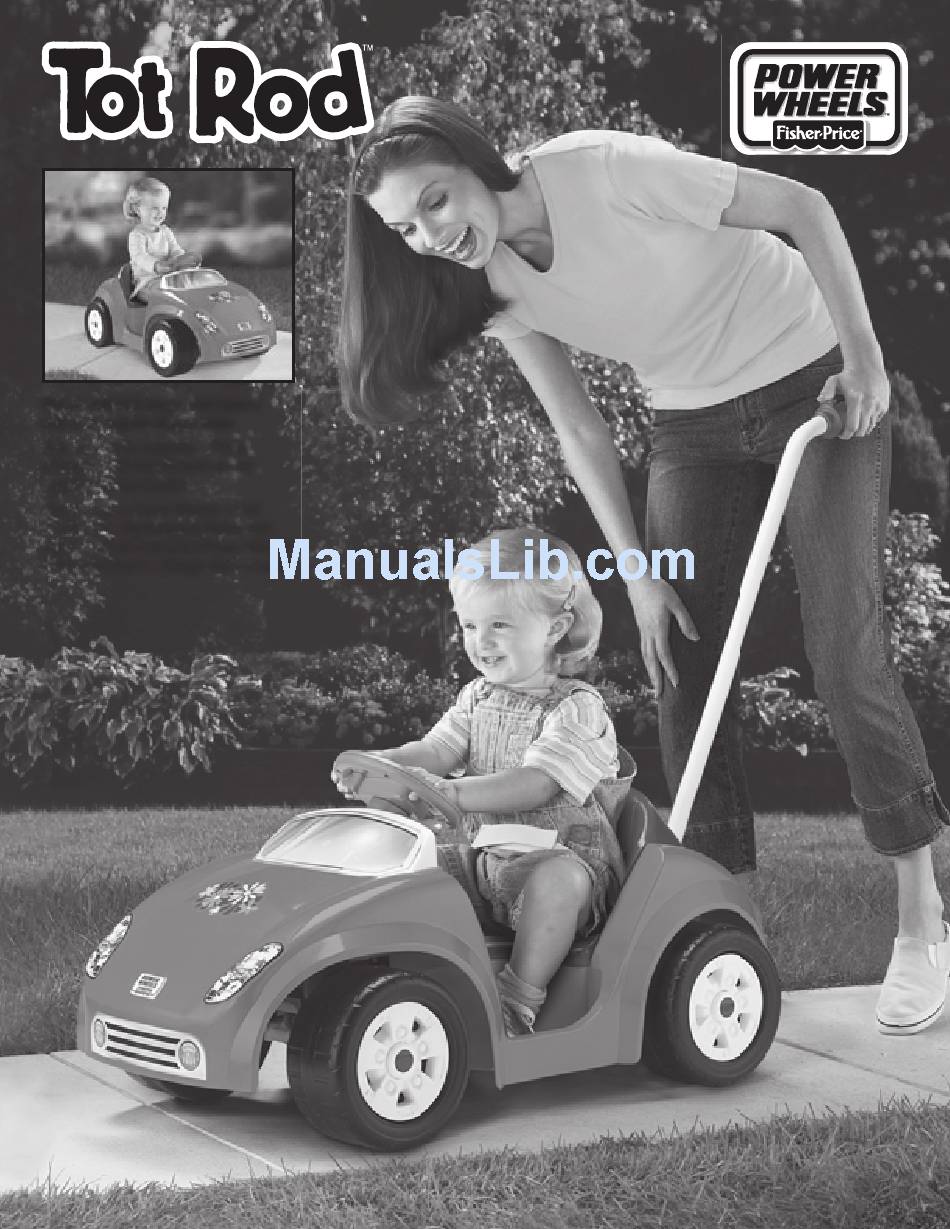

  • Page 1 Product features may vary from the picture above. from the picture above. from the picture above. Owner's Manual Owner's Manual Owner's Manual with Assembly Instructions with Assembly Instructions with Assembly Instructions For Model M0411 For Model M0411 For Model M0411...

  • Page 2: Table Of Contents

    • Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price responsible for damage to the floor if the vehicle is used indoors. • To prevent damaging the motors and gears, do not tow anything behind the vehicle or overload it.

  • Page 3: B Warnings And Cautions

    WARNINGS AND CAUTIONS ELECTRICAL HAZARD • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.

  • Page 4: C Parts

    • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •...

  • Page 5: Parts Picture

    Steering Wheel Cap 354 Cap Nut - 2 Steering Wheel Turn Signal Dash M0411pr-0920 PARTS PICTURE Steering Column Handle Battery Retainer Vehicle 6 Volt Battery Cap Nut Cover Seat Belt - 2 6 Volt Charger Seat Not Shown Label Sheet #8 x ¾...

  • Page 6: Battery Charging

    ELECTRICAL HAZARD ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.

  • Page 7: F Assembly

    BATTERY CHARGING Charger Connector • Plug the battery connector into the charger connector. • Plug the charger into a standard wall outlet. Notes: - The power indicator on the charger does not indicate the charge status of your battery. The power indicator allows you to see that there is power from the wall outlet.
  • Page 8 Dash SIDE VIEW • Locate the wire connector inside the front end of the vehicle. • While feeding the wire connector through the hole in the dash, fit the tabs on the dash onto the front end of the vehicle. ASSEMBLY DASH VIEW •...
  • Page 9 Cap Nut End of Steering Column • Fit the end of the steering column through the hole in the steering linkage. • Fit a cap nut on the end of the steering column. • Tap the cap nut with a hammer to secure it to the end of the steering column.
  • Page 10 DASH VIEW • Plug the motor harness connector from the vehicle into the steering wheel connector. • While carefully feeding the wire down into the dash, fit the steering wheel onto the end of the steering column. ASSEMBLY End of Steering Column •...
  • Page 11 T-Loops • Position both seat belts so that the fasteners face each other, as shown. • Insert the T-loop end of each seat belt through the slot in each side of the seat. • Pull up on the seat belts to secure them to the seat. SIDE VIEW •...

  • Page 12: Gdecoration

    DECORATION Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...

  • Page 13: J Battery Installation

    BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels ® 6 volt (4.0 Amp/Hr.) battery and built-in thermal fuse. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels (4.0 Amp/Hr.) charger before operating your vehicle for the first time.

  • Page 14: Kbattery Care And Disposal

    BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.

  • Page 15: Riding Rules

    SAFE DRIVING RULES RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required. • Never Ride At Night. • Keep Children Within Safe Riding Areas. These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, steep inclines, cars, roads and alleys.

  • Page 16: Vehicle Operation

    IMPORTANT! Use this vehicle ONLY outdoors. Most interior floor-ing can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. Stage 1 - Parent Assisted • Make sure the handle is installed (see Assembly step 17).

  • Page 17: Problems And Solutions Guide

    PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Friday and 11 AM - 5 PM (EST) Saturday. Or, contact your local Power Wheels please visit us on-line at www.powerwheels.com, or call 1-800-348-0751.

  • Page 18: N Problems And Solutions Guide

    PROBLEMS AND SOLUTIONS GUIDE PROBLEM Vehicle was running but suddenly stopped Short run time (Less than 1 - 3 hours per charge) POSSIBLE CAUSE Loose wires or loose connectors Tripped thermal fuse Undercharged battery Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse SOLUTION...
  • Page 19 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE Vehicle runs sluggishly Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Sometimes the vehicle doesn’t Loose wire or connector run, but other times it does Motor or electrical switch damage When the button is pressed,...
  • Page 20 Authorized Service Center. For the location nearest you, visit us on-line at www.powerwheels.com. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2007 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
