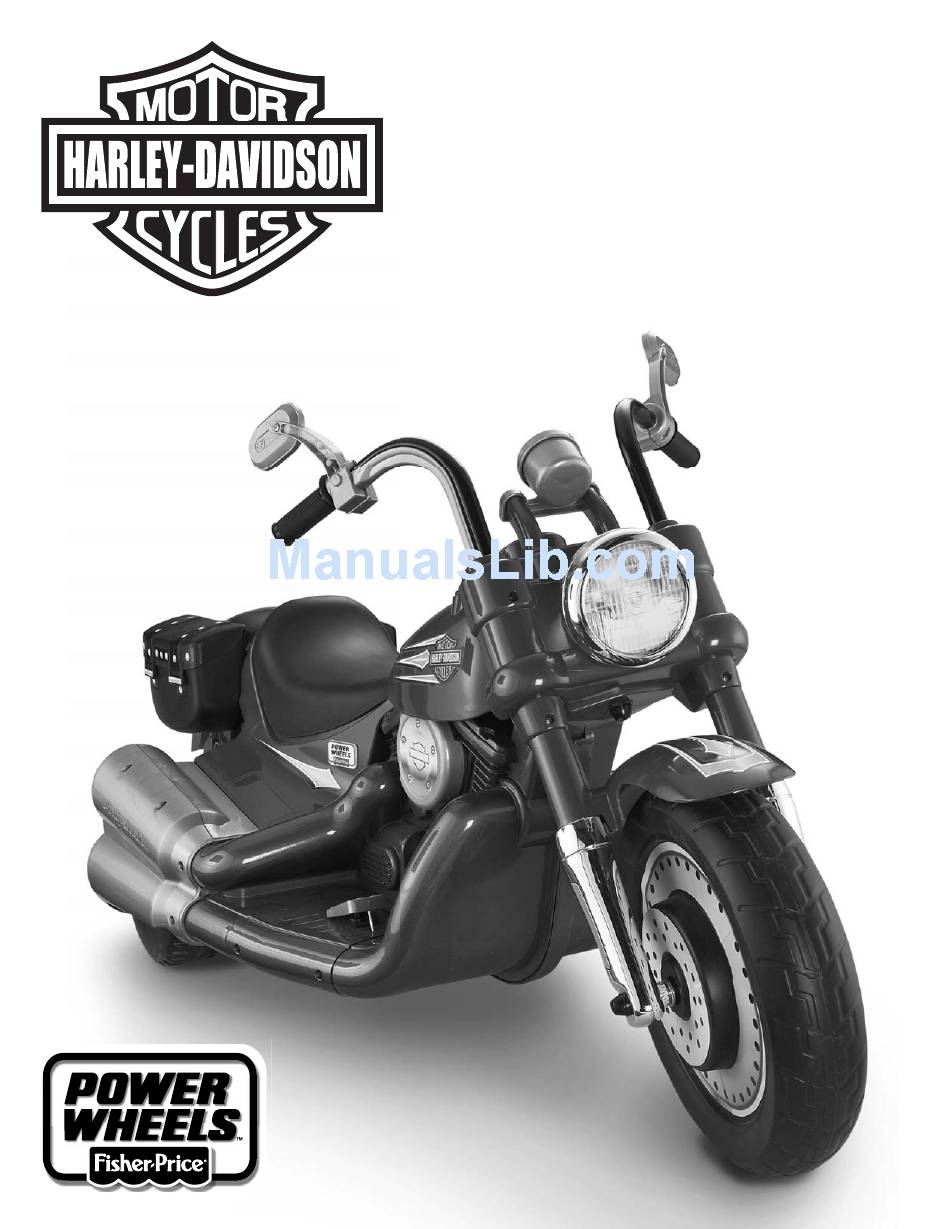

Cruiser
®
Product features may vary from the picture above.
Product features may vary from the picture above.
Product features may vary from the picture above.
Owner's Manual
with Assembly Instructions
For Model M0412
Please read this manual and save it
with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver, Hammer
and Safety Scissors (all not included). Use only with
a Power Wheels
®
12 Volt Rechargeable Battery and
®
Power Wheels
12 Volt Charger with Type 12V Connector
(both included).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fisher-Price Power Wheels Cruiser M0412
Summary of Contents for Fisher-Price Power Wheels Cruiser M0412
- Page 1 Cruiser ® Product features may vary from the picture above. Product features may vary from the picture above. Product features may vary from the picture above. Owner's Manual with Assembly Instructions For Model M0412 Please read this manual and save it with your original sales receipt.
-
Page 2: Table Of Contents
A Important Information ..................2 B Warnings and Cautions . -
Page 3: B Warnings And Cautions
WARNINGS AND CAUTIONS ELECTRICAL HAZARD • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 4: C Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •... - Page 5 Right Handlebar Mirror Clamp Handlebar Harness Left Mirror Left Shock Set Outer Inner Tachometer Cover Primary Cover Part Not Shown: Label Sheet M0412a-0920 TABLE OF CONTENTS PARTS Hex Bushing - 2 Left Handlebar Mirror Lens - 2 Handgrips - 2 Right Mirror Right Shock Set .354 Cap Nut - 2...
-
Page 6: Parts Picture
Note: Some parts shown are assembled on both sides of the vehicle. Vehicle Frame Vehicle Body Seat Wheel - 2 Tank Left Footboard Exhaust - Inner Half - 2 Exhaust - Outer Half - 2 12 Volt Battery Axle Bushing - 2 Short Hex Bushing - 2 TABLE OF CONTENTS PARTS PICTURE... -
Page 7: Battery Charging
ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 8: E Battery Charging
Battery • Loosen the two screws holding the battery retainer to the vehicle body. • Remove the screws and the battery retainer. Set the battery retainer and screws aside. Do not throw out the battery retainer or screws. You will use them when installing your battery (see page 24). -
Page 9: F Assembly
WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. -
Page 10: Left Side View
Slots Left Side View • Fit the tabs on the left footboard into the slots in the left side of the vehicle frame. Make sure both tabs are in the slots. Hint: You may need to squeeze the left footboard in order to align the tabs with the slots. -
Page 11: Rear Wheel
Right Exhaust Pipe - Outer Half • Fit the outer half of the right exhaust pipe (R) to the inner half of the right exhaust pipe. Right Exhaust Pipe • With the holes aligned, insert six #8 x halves of the right exhaust pipe. Tighten the screws. •... -
Page 12: Back View
Axle Bushing Groove Rear Fork Wheel (with Hex Bushings) Back View • Position the vehicle assembly so that the back is facing you. • While holding the hex bushings in place, position the wheel between the rear fork arms of the vehicle frame. •... - Page 13 Headlight Lens Headlight Housing • Fit the headlight lens onto the headlight housing. • Insert three #8 x " screws into the headlight lens and tighten. Front Fork Lower Hole Front Fork Cover • Fit the front fork into the front fork cover. •...
- Page 14 Right Handlebar • Locate the right handlebar. The right handlebar has an additional hole in the grip area. • Fit the switch to the right handlebar, making sure the screw hole in the switch aligns with the screw hole in the right handlebar. Mirror Lens Right Mirror Back View...
- Page 15 Handlebar Harness Fork Cover Plug Upper Hole • Position the front fork so that it is upright and facing you. • Insert the handlebar harness plug through the upper hole in the front fork. Do not insert the plug through the lower hole in the front fork.
- Page 16 Handlebar Harness • Align the screw holes in each handlebar with the screw holes in the front fork. • First, insert two #8 x ¾" screws through the lower holes in the front fork and into each lower hole in each handlebar hand tighten.
- Page 17 Neck of Vehicle Body Handlebar Steering Assembly Stop • First, fit the tab on the steering stop into the curved slot in the lower steering bushing • Hold the steering stop in place. • Then, slide the handlebar assembly on the vehicle frame neck and over the steering stop .354"...
- Page 18 Tank Tabs • Balance the sound box on the vehicle body. (The speaker should face down.) • Fit the tabs at the bottom of the tank under the front end of the vehicle body. • Lower the tank on the vehicle frame, making sure that the two small square openings in the tank fit over the buttons on the sound box.
- Page 19 Fork Cover • Fit the tachometer to the fork cover. • Insert two #8 x ¾" screws into the tachometer and tighten. Front Fork Tabs Handlebar Fender • Slide the fender onto the ends of the handlebars. Make sure the pegs on the fender slide over the tabs on the front fork.
-
Page 20: Front Wheel
Wheel Guide Guide Front Wheel • Before applying labels to the front wheel, wipe the wheel with a clean, dry cloth to remove any dust or oils. • Apply labels to both sides of the front wheel as shown in the illustration. - Page 21 Tighten Screws • Now, completely tighten the four screws in the front handlebar assembly to secure the handlebars. Left Mirror Mirror Clamp Handlebar • Fit the left mirror to the left handlebar. • Fit and hold the mirror clamp to the left mirror. •...
-
Page 22: Rear View
Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •... -
Page 23: Right Side
DECORATION RIGHT SIDE ® LEFT SIDE M0412a-0920... -
Page 24: Battery Installation
IMPORTANT! Use only a Power Wheels rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels charger before operating your vehicle for the first time. Charge the battery for at least 14 hours after each use of the vehicle. -
Page 25: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. -
Page 26: Safe Driving Rules
RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, steep inclines, cars, roads and alleys. -
Page 27: Vehicle Operation
IMPORTANT! Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. Beginner Use - Low Speed Drive IMPORTANT! As assembled, your vehicle is ready to roll in low speed (2 mph, maximum). -
Page 28: Lvehicle Care
VEHICLE CARE • Check all screws, cap nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover. -
Page 29: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels (EST) Monday through Friday or 11 AM and 5 PM (EST) Saturday. Or, contact your local Power Wheels For the location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751. - Page 30 PROBLEMS AND SOLUTIONS GUIDE PROBLEM Vehicle was running but suddenly stopped Short run time (Less than 1 - 3 hours per charge) POSSIBLE CAUSE Loose wires or loose connectors Tripped thermal fuse Undercharged battery Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse SOLUTION...
- Page 31 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE Vehicle runs sluggishly Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Vehicle runs in low speed but High speed hook-up does not run in high speed not connected Note: The vehicle is designed...
- Page 32 Authorized Service Center. For the location nearest you, visit us on-line at www.powerwheels.com. Harley-Davidson and the Harley-Davidson Bar & Shield logo are registered trademarks of H-D Michigan, Inc. used under license. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
