Please read this manual and save it with your original sales receipt.

Tool needed for assembly: Phillips Screwdriver (not included).

Use only with a Power Wheels

Rechargeable Battery and Built-in Thermal Fuse and a Power

Wheels ® ® 6 Volt (4.0 Amp/Hr.) Charger (both included).

Wheels

Action sounds box requires three alkaline "AAA" (LR03)

batteries for sound operation (batteries not included).

Product features may vary from the picture above.

and all related titles, logos and characters are trademarks of Viacom International, Inc.

Owner's Manual

with Assembly Instructions

For Model M5130

® ®

6 Volt (4.0 Amp/Hr.)

6 Volt (4.0 Amp/Hr.) Charger (both included).

Table of Contents

Need help?

Do you have a question about the KART M5130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fisher-Price KART M5130

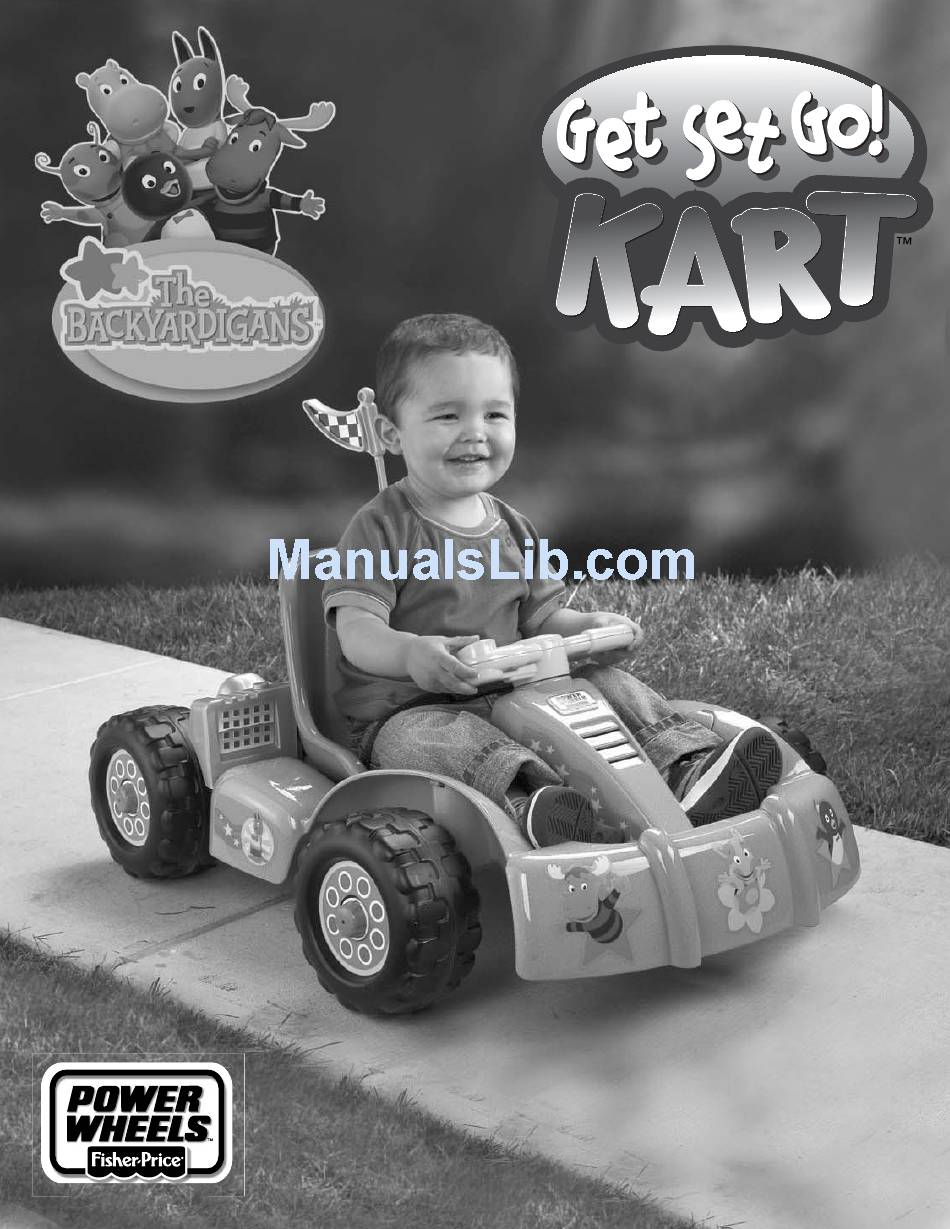

Page 1 Please read this manual and save it with your original sales receipt. Please read this manual and save it with your original sales receipt. Tool needed for assembly: Phillips Screwdriver (not included). Tool needed for assembly: Phillips Screwdriver (not included). Use only with a Power Wheels Use only with a Power Wheels Rechargeable Battery and Built-in Thermal Fuse and a Power...
Page 2: Table Of Contents
12 - 36 months of age. • Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price not be responsible for damage to the floor if the vehicle is used indoors.
Page 3: B Warnings And Cautions
WARNINGS AND CAUTIONS ELECTRICAL HAZARD • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.
Page 4: C Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
Page 5 6 Volt Charger 6 Volt (4.0 Amp/Hr.) Battery (Located in storage area in rear bumper) Part Not Shown: Label Sheet - 2 M5130pr-0920 TABLE OF CONTENTS PARTS Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws. For your convenience, we have included extra fasteners! All Fasteners Shown Actual Size Sounds...
Page 6: Parts Picture
Rear Bumper Cover - 2 6 Volt (4.0 Amp/Hr.) Charger 6 Volt (4.0 Amp/Hr.) Battery Vehicle Frame Steering Wheel Cap Steering Wheel Action Sounds Box Cover TABLE OF CONTENTS PARTS PICTURE Sounds Knob Key Knob Action Sounds Box Flag Seat Seat Belt - 2 Steering Column .354 Cap Nut...
Page 7: Battery Charging
ELECTRICAL HAZARD ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.
Page 8 IMPORTANT! The battery must be removed from your vehicle for the initial charge in order to complete assembly. After assembly is complete, you do not need to remove the battery from your vehicle to recharge it. Bumper Cover (Battery Retainer) •...
Page 9: Bottom View
WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
Page 10 • Fit and "snap" the steering wheel cover into the center of the steering wheel. Sounds Knob Knob Tabs • Position the actions sounds cover so that the two tabs are down. • Fit the key knob into the right hole in the action sounds box cover, as shown.
Page 11 Action Sounds Box Cover Wrap Flap • Fit the action sounds box to the action sounds box cover • Wrap the cover flaps around the action sounds box, as shown Action Sounds Box Tabs Tabs • Insert the bottom tabs on the action sounds box into the slots in the inside of the front end of the vehicle •...
Page 12 • Fit the motor harness into the groove in the vehicle floorboard, as shown. Seat • Place the seat onto the vehicle floorboard, as shown. • Insert two #8 x " screws through the seat and into the floor- board. Tighten the screws. ASSEMBLY Motor Harness...
Page 13: Right Rear View
DECORATION Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...
Page 14: Front Left Side
DECORATION FRONT LEFT SIDE M5130pr-0920 M5130pr-0920...
Page 15: Battery Installation
IMPORTANT! Use only a Power Wheels battery and built-in thermal fuse. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels (4.0 Amp/Hr.) charger before operating your vehicle for the first time.
Page 16: Ibattery Care And Disposal
BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.
Page 17: Safe Driving Rules
RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - Away from swimming pools and other bodies of water to prevent drownings - Generally level to prevent tipovers - Away from steps, cars, steep inclines, roads and alleys.
Page 18: Kvehicle Operation
VEHICLE OPERATION IMPORTANT! Use this vehicle ONLY outdoors. Most interior floor-ing can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. Drive Forward Press and hold this button to move forward.
Page 19: Limited Warranty
LIMITED WARRANTY Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 6 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ride-on vehicle (purchased from Power ®...
Page 20: Oproblems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels (EST) Monday through Friday and 11 AM to 5 PM (EST) Saturday. Or, contact your local Power Wheels For the location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751.
Page 21 PROBLEMS AND SOLUTIONS GUIDE PROBLEM Vehicle was running but suddenly stopped Short run time (Less than 1 - 3 hours per charge) M5130pr-0920 POSSIBLE CAUSE Loose wires or loose connectors Tripped thermal fuse Undercharged battery Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse SOLUTION...
Page 22 PROBLEMS AND SOLUTIONS GUIDE PROBLEM Vehicle runs sluggishly Sometimes the vehicle doesn’t run, but other times it does J4030pr-0920 POSSIBLE CAUSE Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Loose wire or connector Motor or electrical switch damage SOLUTION...
Page 23 PROBLEMS AND SOLUTIONS GUIDE PROBLEM When the button is pressed, the vehicle won’t run without a push Battery’s thermal fuse constantly "trips", but the vehicle is not overloaded nor the driving conditions too severe Loud clacking or grinding noise from a motor-gearbox Charger gets warm during use Battery makes a sizzling or gurgling noise when charging...
Page 24 ® Power Wheels Authorized Service Center. For the location nearest you, visit us on-line at www.powerwheels.com. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2007 Mattel, Inc. All Rights Reserved. PRINTED IN MEXICO M5130pr-0920 PRINTED IN CHINA...
