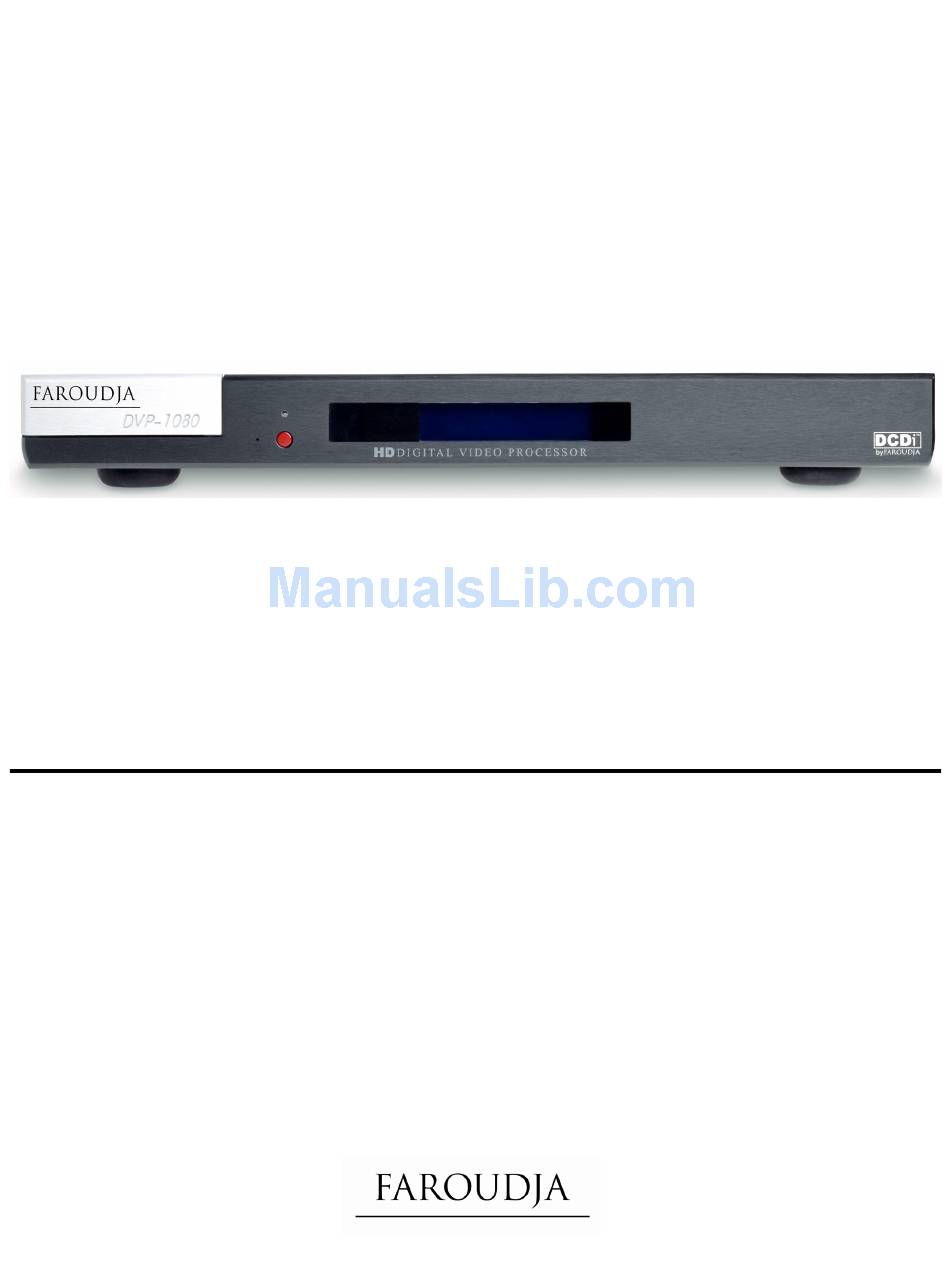

  • Page 1 DVP1080 HD Digital Video Processor Frequently Asked Questions...
  • Page 2 PREFACE The following FAQ’s are provided to resolve common system installation questions, which may occur during setup and operation of the DVP1080 processor. Please review the DVP-1080 Installation and Operation Manual completely, as it contains solutions to most issues. The DVP-1080 Digital Video Processor is merely one piece of equipment within a complex Video/Audio system.
  • Page 3 D. Processor Operation Questions 1. How do I discretely select the DVI INPUT, or RGB INPUT, using the IR Remote? 2. The LCD display is displaying an OVERHEAT WARNING. 3. How do I Store a Profile? 4. When I select 4:3 on the IR remote, the image is not centered. 5.

  • Page 4: Connecting The Processor To The Display

    A. Connecting the Processor to the Display A.1. Which output scanrate should I choose for my display? The appropriate output scanrate selection is usually determined by the actual native pixel density of a digital display device, or the physical CRT size of an analog display device (7”, 8” or 9” CRT). Each display device will specify their individual video/computer input capabilities.
  • Page 5 encrypted signals to make an alternate connection, you should then check the display’s Operations Manual to verify HDCP compliance. Note: A DVI signal that is HDCP encrypted will deactivate the ANALOG OUTPUTS. Main Menu A.5. Which type of DVI cable should I use from the processor to the display? It is recommended to install a DVI-D, Single-Link cable connection.
  • Page 6 A.8. There is “Dark Banding/Streaking” while the video image is changing; how do I fix this? The video image is either positioned (Phased) too far to the left/right, or the image is too wide. Though the image may be “filling” the viewable screen area, the display is having difficulty finding the actual Clamp Pulse (sync signal).
  • Page 7 • Press the [MENU] button to return to the USER MENU Note: ONLY select either 1920x540p or 1280x720p scanrates if the display device does not have an available 5-wire RGBh/v or D-15 VGA input connection. • If you are connecting the DVP-1080 and display device via RGBh/v, and your picture is MAGENTA, you will then need to change the displays input format from COMP (Component) to RGB or PC.
  • Page 8 B. Connecting the to Sources to the Processor B.1. Can the DVP-1080 process computer signals sent to the DVI INPUT or PASS-THRU input? No. The DVP-1080 will only route a digital or analog computer signal directly to the pass-through circuitry. Analog (VGA): When an analog computer source is connected to the PASS-THRU input, you must connect an RGBh/v cable to the display device.
  • Page 9 C. Processor Setup Questions C.1. I changed the output scanrate, but the processor did not register the scanrate selection. Changing the output scanrate requires confirmation of the new output scanrate selection. Do not select an output scanrate which exceeds display device capabilities (refer to display device User’s Manual). •...
  • Page 10 C.4. My connection to the display device is Analog, which SET: ACTIVE OUTPUT format should I choose, RGB or YPrPb? SET: ACTIVE OUTPUT / ANALOG RGB + DVI and SET: ACTIVE OUTPUT / ANALOG RGB When DVI is not available, the preferred analog output selection from the DVP-1080 is always RGB, intimating RGBh/v.
  • Page 11 D. Processor Operation Questions D.1. How do I discretely select the DVI INPUT, or RGB INPUT, using the IR remote? Discrete IR access to the DVI INPUT, or RGB INPUT, is available utilizing the IR remote and performing a two (2) button sequence. Implementation of this two-step button sequence can be issued a macro, for use with advanced programmable IR remotes.
  • Page 12 • Adjust all applicable changes required for the intended PROFILE • Under the menu tab INPUT, use the [▼] arrow button to highlight PROFILE • Press the value [►] button to select numeric PROFILE • Press the [STORE] button • Press the [MENU] button to exit the On-Screen Display...
  • Page 13 E. RS-232 Control Questions E.1. Where can I locate the RS-232 command protocols? • Refer to the DVP-1080 Installation and Operation Manual. • RS-232c Instructions and Commands are located within Pages 17 through 19 in the DVP-1080 Installation and Operation Manual. This manual also is available for download, via www.faroudja.com. Main Menu E.2.
  • Page 14 E.4. How do I change the default RS-232 communication Baud Rate? The DVP-1080 allows the ability to change the default 19200 baud rate from within the SETUP MENU. • Enter the SETUP MENU by pressing the [MENU] button on the IR remote for seven (7) seconds •...
  • Page 15 180 Baytech Drive, Suite 110 • San Jose, CA 95143 Phone: (408) 635-4200 • Fax: (408) 957-0364 www.faroudja.com A division of Genesis Microchip Inc. DVP-1080 FAQ’s REV 06.20.05 Pearcision...
