Faroudja Native Rate Series Installation And Operation Manual

Faroudja laboratories digital video processor operations manual
Hide thumbs Also See for Native Rate Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
Native Rate Series
Native Rate Series Plus
Digital Video Processor
Installation and
Operations Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Native Rate Series and is the answer not in the manual?

Questions and answers

Related Manuals for Faroudja Native Rate Series

Summary of Contents for Faroudja Native Rate Series

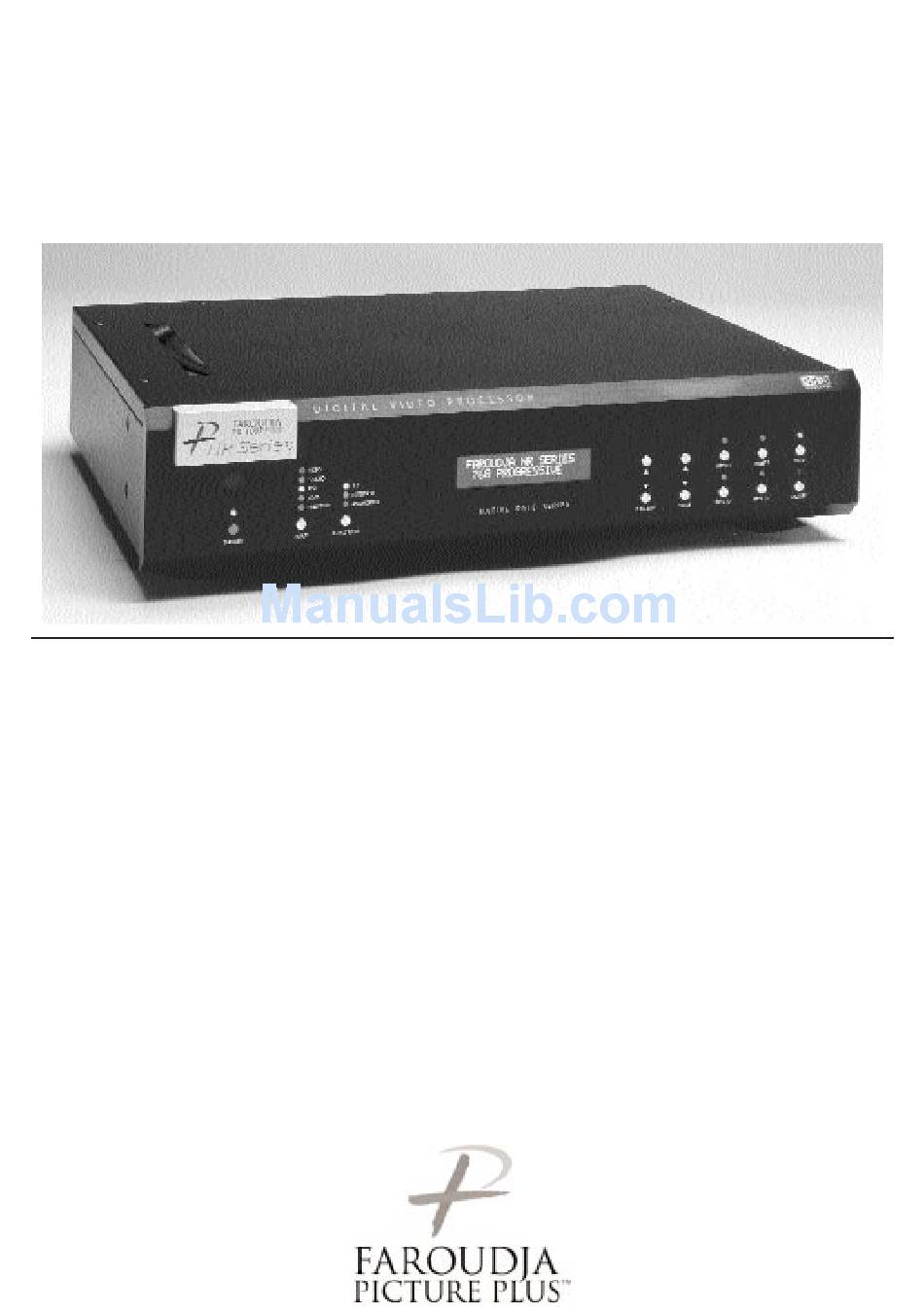

  • Page 1 Native Rate Series Native Rate Series Plus Digital Video Processor Installation and Operations Manual...

  • Page 3: Table Of Contents

    Inventory List / Unpacking............2 Installation .

  • Page 4: Installation

    INSTALLATION UNPACKING Remove the NR Series unit from the shipping con- tainer and examine it for any signs of shipping damage or missing items (check inventory list below). All shipping materials should be saved if the unit is to be moved or returned for service. INSTALLATION The processor can be either placed on a table or rack mounted.

  • Page 5: Source Inputs

    CONNECTIONS Because of the high performance of the NR Series unit it is very important to use the highest quality cables possible, for both input and output signals. Both the RGB BNC and the D15 Monitor output connections are active at all times and can run two displays simultaneously.

  • Page 6: Front Panel Control

    SETUP 1 2 3 FRONT PANEL CONTROL 1. Power/Standby: Press to turn the unit On (LED turns Green) or to Standby (Red) 2. Infrared Sensor/Flasher window 3. CPU Reset: push a small paper clip into this opening to reset the unit’s CPU. Note: Do not activate the CPU Reset without first contacting Faroudja technical support or your installer.

  • Page 7: System Menu

    SYSTEM SETTINGS AND SETUP Setup offers functions that must be done when the unit is initially installed. Some user features are not available with a few of the Setup selections so this must be done first. To prevent accidental alteration of the setup parameters, some setup functions can only be done from the front panel or with the RS232 interface.
  • Page 8 SETUP 0-255(0=Top) This sets the position of the single line adjustment OSD OSD Timer 4-255 seconds (10 Default) HDTV Ext. Format 480p/720p/1080i This option is visible and only needs to be set if the transcode option is selected for the pass-thru. HDTV External Input Pass-thru YPrPb to RGB...
  • Page 9 These are the controls that are used most often. Noise Reduction 0-15, Factory 8 Detail 0-31, Factory 8 Tint 0-255, Factory 128 Color 0-255, Factory 128 Contrast 0-155, Factory 128 Brightness 0-170, Factory 128 Advanced Color System Factory/DVD Animation For some DVDs with computer animation, the Faroudja patented chroma edge processing cir- cuits can be turned off.
  • Page 10 RS232 NOTE: When using a Wide Angle screen a 4:3 source will have black bars on the left and right of the image. If filling the entire screen is desired, select Letterbox. The image will fill the screen but the top and bottom 1/3 of the image will be cut off. Note: Anamorphic on a 4:3 screen is not avail- able on units with scan rates below 720p.

  • Page 11: Specifications

    NTSC: 31.5KHz, 37.7KHz, 45KHz, or 48KHz- depending on model NTSC: 63KHz - Native Rate Series Plus only PAL: 31.2KHz, 37KHz, 40KHz - depending on model PAL: 53KHz - Native Rate Series Plus only 4.0 vpp TTL 60Hz/50Hz, 4.0 vpp TTL 4.0 vpp TTL 13D X 17.25W X 4.24H (with feet) (Depth includes rear BNC)

  • Page 12: Appendix A - Rs232 Codes

    APPENDIX A – RS232 CODES COMMAND HELP FUNCTION COMMAND Display Help Menu Power ON Power OFF INPUTS Video Input S-Video Input YCrCb RGBS Pass-Thru Input IMAGE CONTROL Brightness (0-255) (Factory 128) Contrast (0-255) (Factory 128) Tint (0-255) (Factory 128) Color (0-255) (Factory 128) Detail (0-15) (Factory 8)

  • Page 13: Appendix B - Ir Setup Commands

    IR REMOTE TEACHING FUNCTIONS Use the Function key to locate IR Setup Menu-Press Enter. Use the Value key to select the different commands. Each time the Enter button is pressed it “flashes” the commands out through the IR receiver window on the front panel. The Number of Samples choice defines how many time the NRS will send the sample IR command.

  • Page 14: Warranty

    LIMITED WARRANTY Faroudja Laboratories, Inc. (“Faroudja”) warranties that its products will be free of defects in workmanship and material and conform substantially to published speci- fications under normal use and service. This warranty is made to the first purchaser of the products and extends for twelve (12) months from the date of sale. The war- ranty does not apply to products damaged as a result of accident, misuse, neglect, alteration, improper installation, unusual physical or electrical stress or unauthorized repair.
