Summary of Contents for Sirius Satellite Radio SDVK1

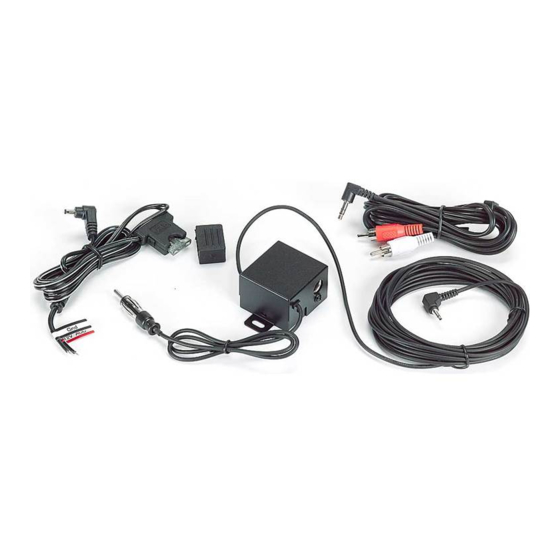

- Page 1 SDVK1 Plug-&-Play Direct Connect Kit Installation Guide...
- Page 2 For the latest information about this and other SIRIUS products, visit http://www.sirius.com. If anything is missing or damaged, or if any component of the SDVK1 Plug-&-Play Direct Connect Kit fails to operate, notify your SIRIUS dealer immediately. It is recommended that you keep the original packaging in case you need to return or ship the SDVK1 Plug-&-Play Direct Connect Kit in the future.
- Page 3 • The installation and use suggestions contained in this manual are subject to any restrictions or limitations that may be imposed by applicable law. The purchaser should check applicable law for any restrictions or limitations before installing and/or operating SDVK1 Plug-&-Play Direct Connect Installation Guide...
- Page 4 Professional installation of this product is recommended by SIRIUS. The SDVK1 Plug-&-Play Direct Connect Kit will not work with any SIRIUS Receiver that requires other than 12 volts to operate. Consult the specifications section of the user guide which accompanied your Sirius Satellite Plug and Play product to verify compatibility.
- Page 5 Run position. Once the black/white power wire is connected to the accessory wire, the SDVK1 Plug-7-Play can be powered on with the vehicle running or with the key in the Accessory position. Connecting the FM Relay Switch The FM Relay Switch is used to route sound output of the receiver through the FM tuner of your radio. It is used when the radio in the vehicle does not have an auxiliary input that can accept RCA-type audio cable connections.
-
Page 6: Wiring Diagram
POWER CABLE AUDIO SYSTEM TO SWITCHED AUXlLIARY INPUT IGNITION +12V JACKS L/R (BLACK/WHITE) TO GROUND -12V (BLACK) *Note: Use the FM Relay Switch if your vehicle’s radio is not equipped with a auxiliary input. SDVK1 Plug-&-Play Direct Connect Installation Guide... -
Page 7: Month Limited Warranty
12 MONTH LIMITED WARRANTY Sirius Satellite Radio Inc. (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for parts... - Page 8 SIRIUS Customer Service: 1-800-869-5590 customercare@sirius-radio.com SIRIUS Satellite Radio Inc. 1221 Avenue of the Americas New York, NY 10020 1-888-539-7474 www.sirius.com © 2005 SIRIUS Satellite Radio. “SIRIUS” and the SIRIUS dog logo are registered trademarks of Sirius Satellite Radio Inc. SDVK1 (092705a)
