Shop-Vac 92L550A Specification

92L Series
3
4
6
23
11
8
16
15
24
20
23
22
* Replacement parts may differ from original equipment.
1
2
5
7
9
10
12
13
STANDARD ACCESSORIES
• 8' x 2-1/2" Hose
• (2) 2-1/2" Extension wands
14
• 14" Floor nozzle
• Concentrator nozzle
17
FOUR-YEAR HOME USE WARRANTY
Your Shop-Vac
User Manual, against original defects in material and workmanship for a period of four years
from date of purchase. Should this product be used for commercial or rental use, a 90 day limited
warranty will apply.
operating condition, by repair or parts replacement, during the warranty period, without charge.
This warranty does not cover accessories. Use of non-recommended filters and/or accessories may
void the manufacturer's warranty.
For product service contact Shop-Vac Corporation, Customer Service, at (570) 326-3557 or e-mail
service@shopvac.com. Shop-Vac assumes no responsibility for damage or faulty performance
caused by misuse or careless handling, or where repairs or modifications have been made or
attempted by others. Proof of purchase date is required. This warranty gives you specific legal
rights, and you may also have other rights, which vary from state to state. This warranty is void
outside of the United States.
18
21
19

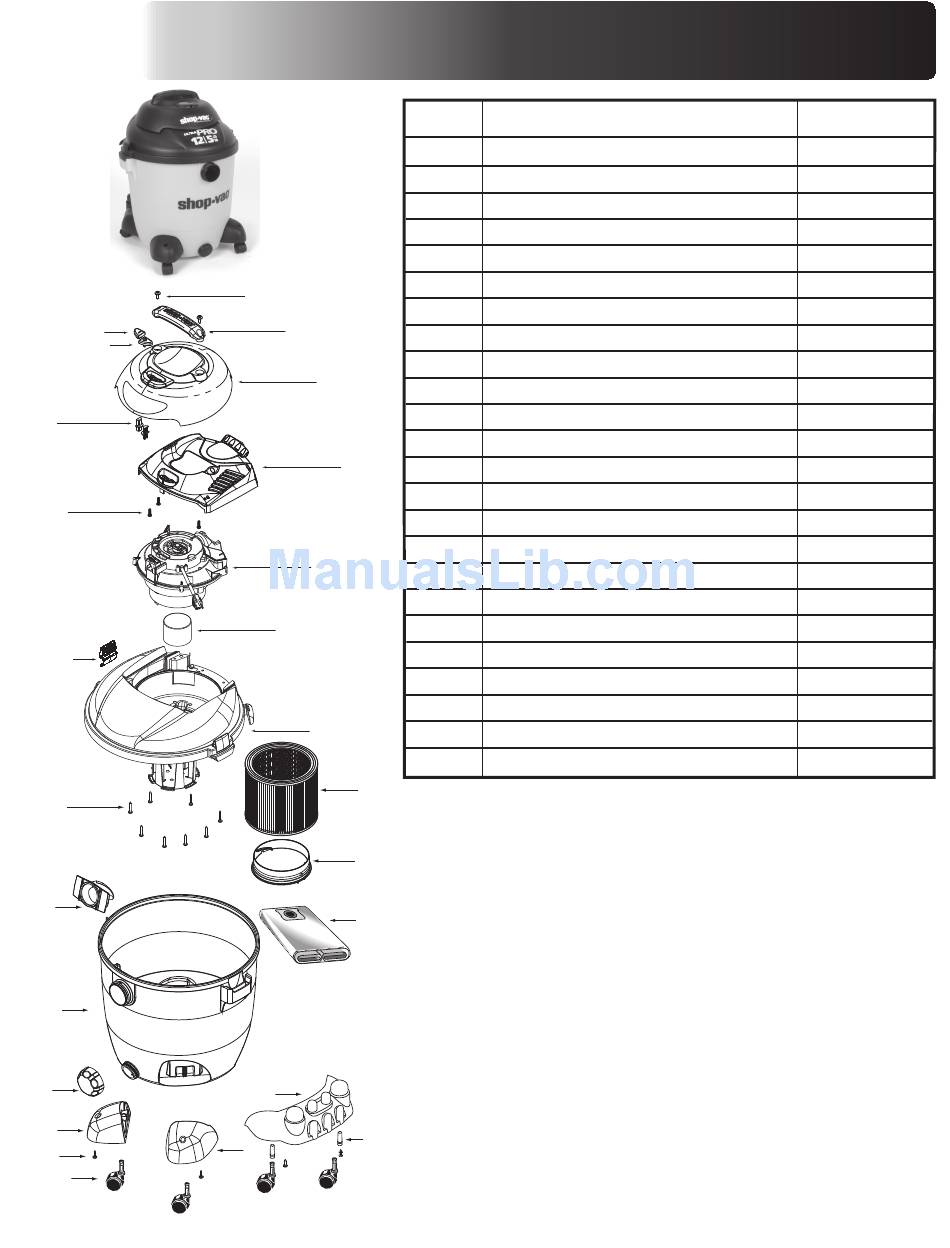

Model 92L550A
ITEM DESCRIPTION
1 Screw 1/4 x 3/4 Trilobe T30 HD
2
3 Switch Button - I
4 Switch Button - O
5 Outer Motor Cover Assembly
6 Switch Button Extension
7 Inner Motor Cover
8 Screw 10 - 3/4" Trilobe T25 HD
9 Power Unit Assembly
10
11 Lid Latch
12 Lid Cage & Latch Assembly
13 Cartridge Filter
14
Filter Retainer
15 Tank Assembly
16 Inlet Deflector
17 Collection Bag
18 Rear Caster Dolly
19 Casterfoot A
20 Casterfoot B
21
22
23 Screw 10 x 3/4" SL Hex Head
24 Drain Cover
® vacuum cleaner is warranted in normal household use, in accordance with the
Shop-Vac Corporation warrants placing this vacuum cleaner in correct
Handle
Float
Retainer
Caster
• 2-1/2" Crevice tool
• 8" Utility nozzle
• Elbow grip
PART NO.
1516499
7444400
7414200
7414210
1944142
7414250
3743052
1516599
8130697
3545000
7444500
1944143
9030462
3008000
1027397
7413100
9066262
7431135
8568000
8568010
8565500
6774200
1503999
1062502
87536-01
