2. Press Add on the remote when you see a message reminding you to add an RF Wireless
Extender to your network.
3. Press Connect on the RF Wireless Extender. By pressing Connect you will add the extender to
your Z-Wave network.
Anytime you update the RF Wireless Extender you must add the extender to your Z-Wave network again.
To manually add the extender to your Z-Wave network:
1. Take your remote to the RF Wireless Extender you updated. Make sure the extender is plugged
into a power outlet.
2. Press the display button next to System Options on the remote's display.
3. Press Z-Wave Setup.
4. Press Connect to RF Extender.
5. Press Connect on the RF Wireless Extender and follow the instructions on the remote.

Assigning Devices to the Harmony Remote and the RF Wireless Extender

You can assign either the Harmony Remote of the RF Wireless Extender to control your devices.
Controlling a Device With the RF Wireless Extender:

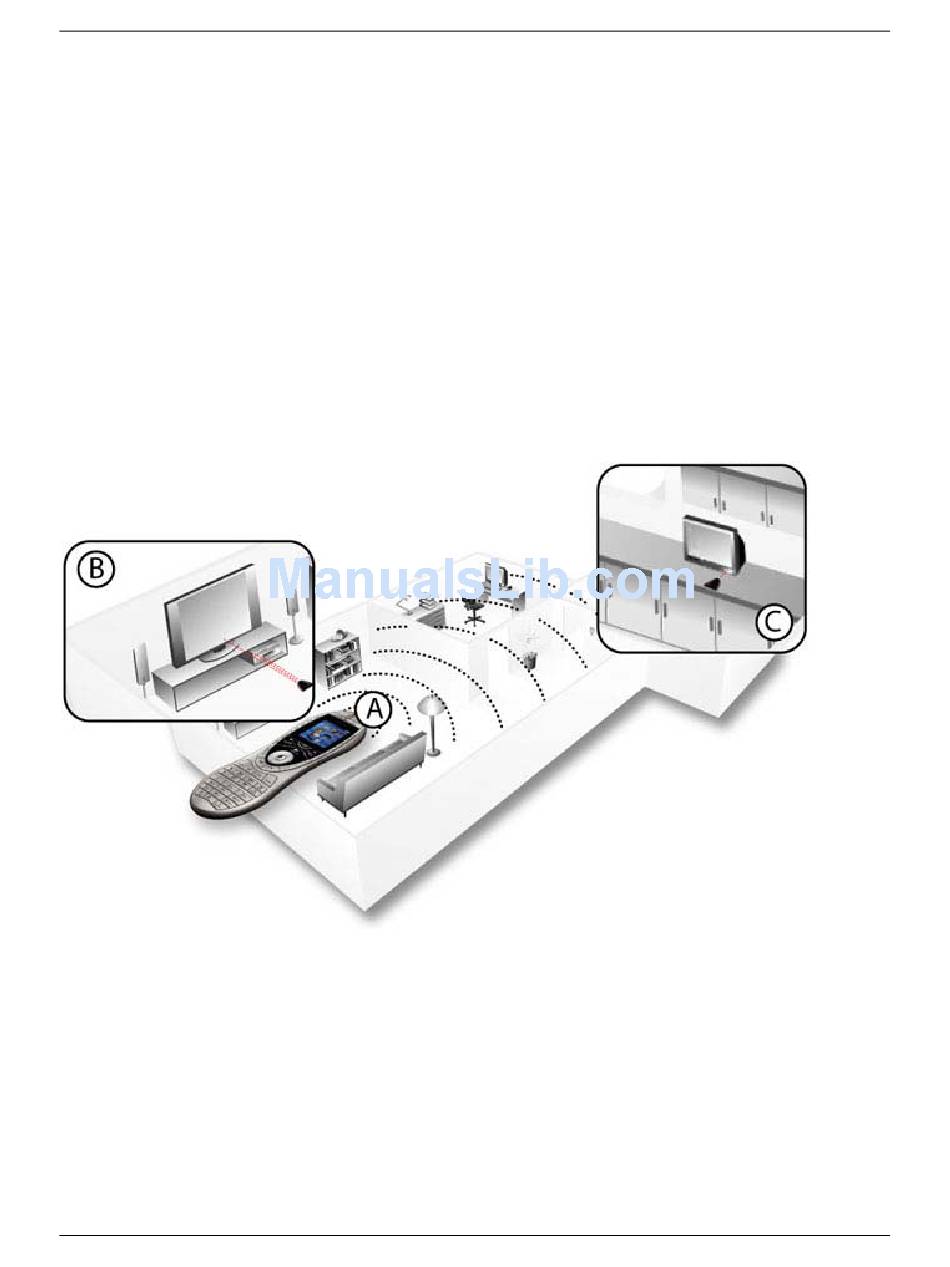

If you have set the RF Wireless Extender to control a device, the remote will send RF (radio frequency)
signals (see A) to the RF Extender, which will then convert the signals to IR and send the signals to the
device. Controlling devices using the RF Extender means you can control the devices even if they are
behind closed doors (e.g. a cabinet) or in a different room (see B and C).
Controlling a Device With the Remote:
If you have set the remote to control a device, the remote will use IR (infrared) signals to control the
device. In order for the remote to control the device, there must be a direct line of sight between the
signal sent by the remote and the device receiving the signal (see A).
