3.4

Drive mounting

You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting holes. See Figure 5 on page 25 for drive mounting dimensions. Follow these important
mounting precautions when mounting the drive:
• Allow a minimum clearance of 0.030 inches (0.76 mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.150 inch (3.81 mm) into the bottom or side mounting holes.
• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).
.138
(3.505)

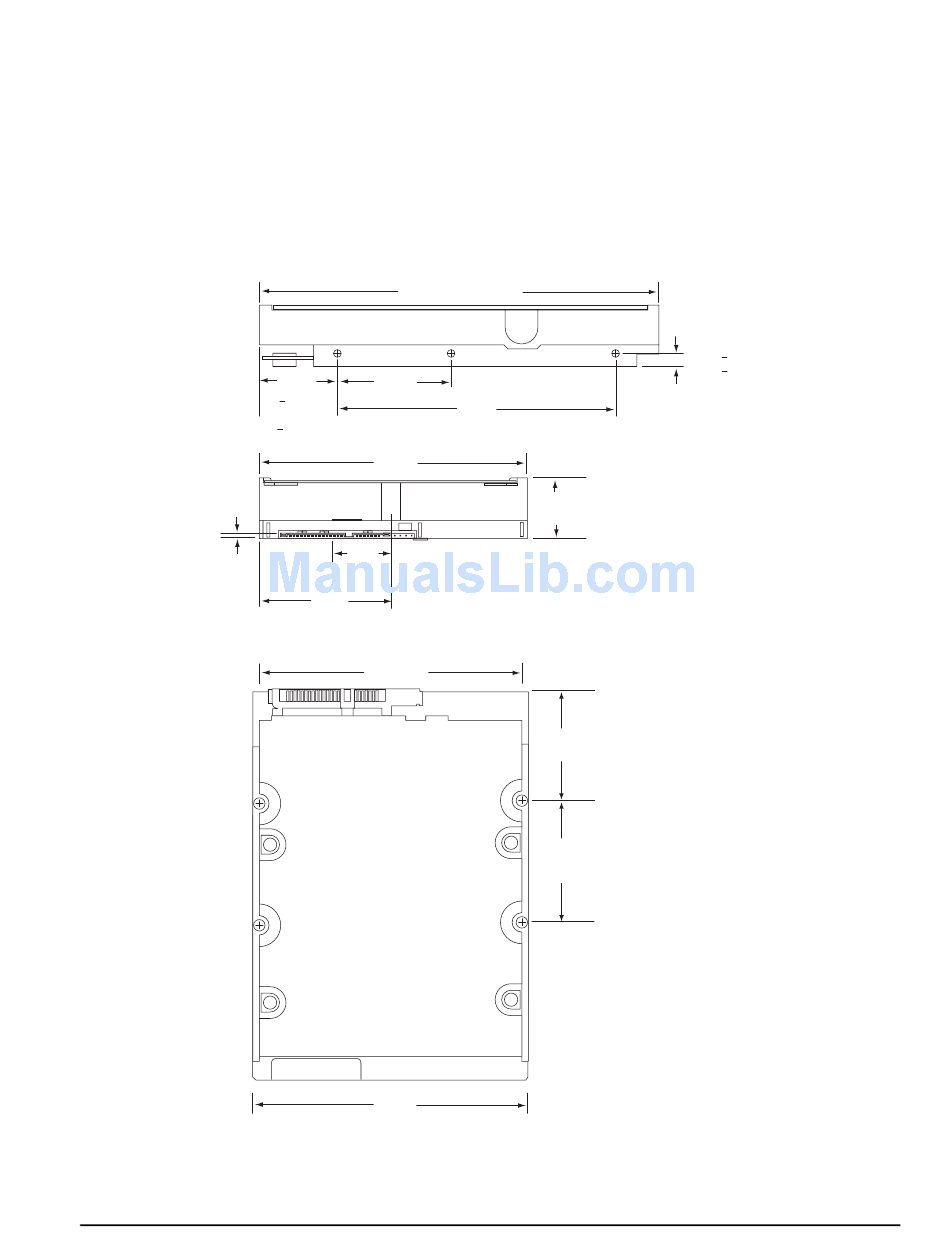

Figure 5. Mounting dimensions—top, side and end view
Barracuda 7200.8 Serial ATA Product Manual, Rev. F
[1]
5.787 (146.9898) max.
1.638
1.122
(41.605) [1]
+ .020
(28.499
+ .508)
[1]
[1]
4.000
(101.6)
.814
(20.676)
C L of conn. Datum B
2.00
(50.80)
C L of drive
[1]
2 x 3.750
(2 x 95.25)
4.000
(101.6)
[1]
4.000
(101.6)
1.028 max
[1]
(26.111 max)
Notes:
Dimensions are shown in inches (mm).
[1] Dimensions per SFF-8301 specification
2 x 1.625
(2 x 41.28) [1]
2 x 1.750
[1]
(2 x 44.45)
.250 + .015
(6.35 + .381)
(3x both sides)
25
