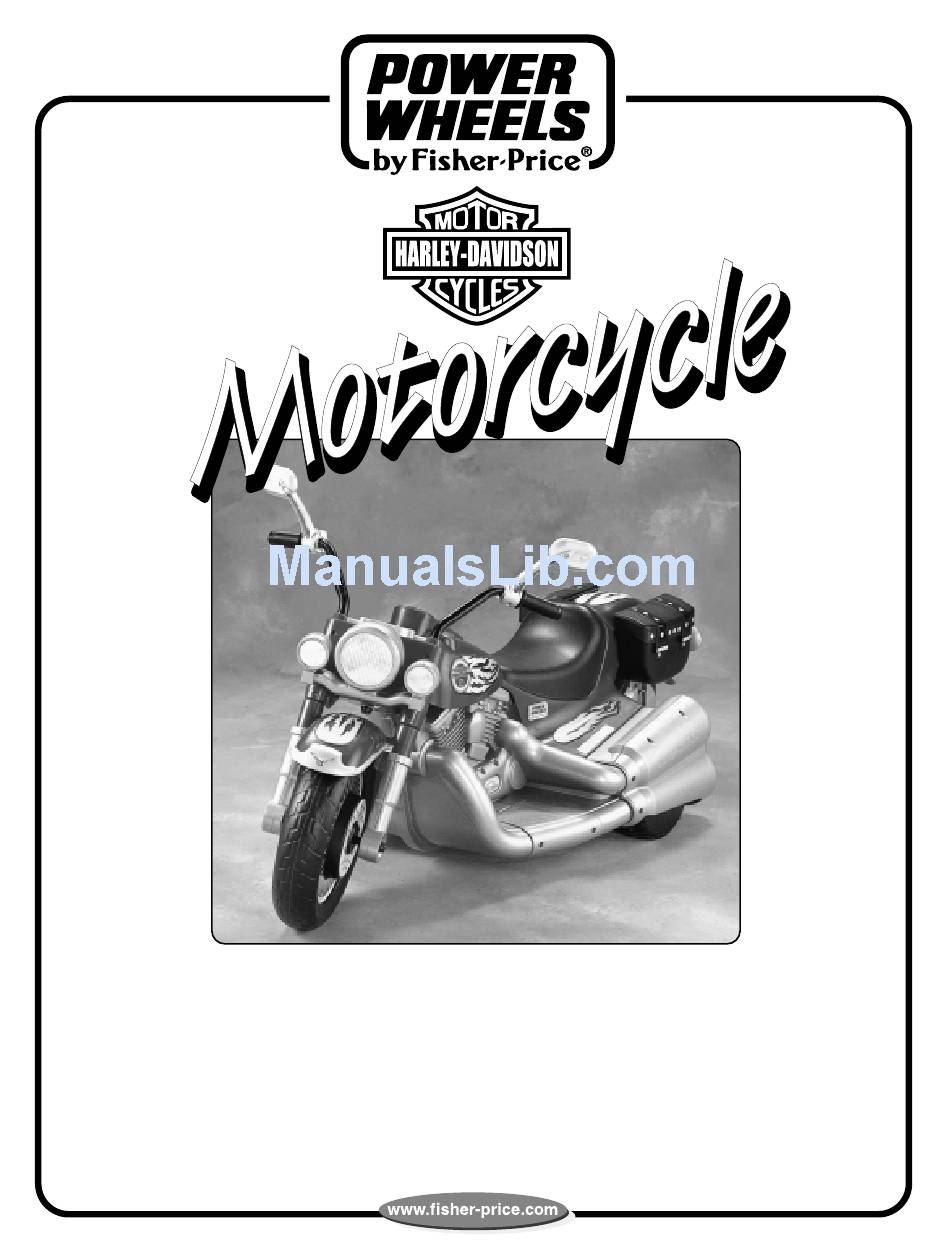

Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 73210
Tools needed for assembly: Phillips Screwdriver, Hammer and Safety Scissors (not included).
Use only with two Power Wheels
6 Volt Rechargeable Batteries with A-Style Connectors and Built-in Thermal Fuses,
®
and a Power Wheels
®
12 Volt Charger (all included).
Requires three "AA" (LR6) alkaline batteries (not included) in Sound Box.
