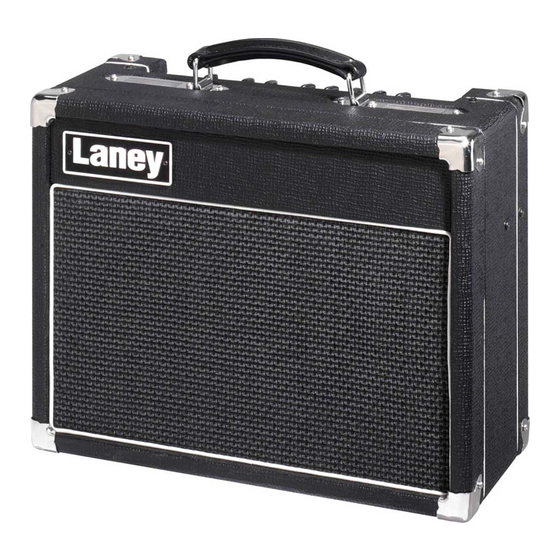

Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions safe. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. - Page 3 INSTRUCTIONS IMPORTANTES DE SECURITE - FRANÇAIS ATTENTION: L’utilisation de tout appareil électrique doit être soumise aux precautions d’usage incluant: 1. Lire ces instructions 2. Gardez ce manuel pour de futures références. 3. Prétez attention aux messages de précautions de ce manuel. 4.
- Page 4 WICHTIGE SICHERHEITSHINWEISE - DEUSCH ACHTUNG: Beim Einsatz von Elektrogeräten müssen u.a. grundlegende Vorsichtsmaßnahmen befolgt werden: 1. Lesen Sie sich diese Anweisungen durch. 2. Bewahren Sie diese Anweisungen auf. 3. Beachten Sie alle Warnungen. 4. Befolgen Sie alle Anweisungen. 5. Setzen Sie dieses Gerät nicht in der Nähe von Wasser ein. 6.
- Page 5 INSTRUCCIONES IMPORTANTES PARA SU SEGURIDAD - ESPAÑOL CUIDADO: Cuando use productos electrónicos, debe tomar precauciones básicas, incluyendo las siguientes: 1. Lea estas instrucciones. 2. Guarde estas instrucciones. 3. Haga caso de todos los consejos. 4. Siga todas las instrucciones. 5. No usar este aparato cerca del agua. 6.
- Page 6 EARTH or GROUND GREEN/YELLOW NEUTRAL - BLUE LIVE - BROWN...
- Page 7 SPECIFICATIONS Supply Voltage ~100V, ~120V, ~220V, ~ 230V, 50/60Hz Factory Option Mains Fuse (~220V, ~230V, ~240V = T250mA L 250V) (~100>120V = T500mA L 250V) HT Fuse T100mA L 250V Power Consumption Output Power Rating Loudspeaker 10” Jensen C10Q8 Loudspeaker outputs Extension speaker socket (Disconnects Internal speaker) (Minimum 8 Ohm Impedance) Features...
- Page 8 Laney endorsees that includes some of the world’s most famous and respected musicians. At the same time we believe we have not lost sight of the reason Laney was founded in the first place - a dedication to building great sounding amplification for working musicians.
- Page 9 – making it ideal for any style of playing. Perfect for studio and practice use, but also equally at home or on stage plugged into a Laney extension cabinet, the sound will blow you away.
- Page 10 FRONT PANEL CONTROLS HI INPUT: ‘Hi’ stands for high gain. This input is designed for the connection of low output level guitars making it well suited for guitars with single coiled or low gain humbucker type pickups. Use of high gain pickups in this input may drive the preamp too hard causing a "mushy"...
- Page 11 “retro” style sound. DRIVE LED: This led will illuminate when the Drive channel is activated with the Drive switch (8) or an optional Laney FS2 remote footswitch. DRIVE SWITCH: Switch in to enable the 'Drive' channel.
- Page 12 REAR PANEL CONTROLS Spare power fuse included in the tray. L Z B 1 2 3 4 SUPPLY VOLTAGE & FUSE RATING ~100V T500mA L 250V ~120V T500mA L 250V ~220V/~230V T250mA L 250V POWER INLET SOCKET. Connect to your power source. Make sure the specified voltage is correct for your country! POWER FUSE: This drawer contains the main safety fuse for the unit.
- Page 13 EXTENSION CABINET: Use to connect an 8-16 ohm extension cabinet. Please note mismatched impedance will reduce the amplifiers performance and in some cases may cause damage to your amplifier. Try the VC15-110 into a Laney extension cabinet - you will be amazed what this little baby cranks out. Note: When an external speaker cabinet is connected it disconnects the onboard loudspeaker SERIAL NO: Displays the model and serial number of the unit.
- Page 14 QUICK START SETTINGS - suggestions only, experiment! CLEAN BLUES BLUES SOLO ROCK...
- Page 15 USER SETTINGS - Store your own cool sounds...
- Page 16 Exact replacement preamp tubes and matched sets of output tubes are available from Laney via your dealer. • To change a tube; switch off the unit and unplug from the mains supply. Wait for the tubes to cool down. Lay amplifier down on its front face and remove the protective grille held in place with four screws.
-
Page 17: Block Diagram
your loudspeakers. Wait until all system parts have stabilised; usually a couple of seconds. Similarly when turning off your system always turn down the Volume controls on your guitar amplifier and then turn off its power before turning off other equipment. - Page 18 VC15-110 SAMPLE SYSTEMS L Z B 1 2 3 4 L Z B 1 2 3 4 SUPPLY VOLTAGE & FUSE RATING ~100V T500mA L 250V ~120V T500mA L 250V ~220V/~230V T250mA L 250V FX Controller L Z B 1 2 3 4 SUPPLY VOLTAGE &...
- Page 19 NOTES...
- Page 20 In the interest of continued product development, Laney reserves the right to amend product specification without prior notification.
