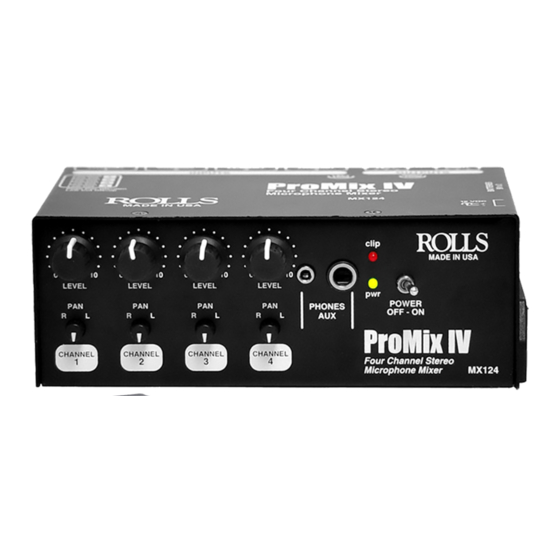

Rolls PROMIX IV MX124 Quick Start Manual

SETTING THE LOW CUT AND PHANTOM POWER SWITCHES

On the left side are the Phantom Power and Low-Cut switches.
As shown here, under each number is a P indicating Phantom Power, and an L which
indicates Low-Cut.When the P switch is DOWN, the phantom power is ON, when it is UP
the phantom power is OFF. When the L switch is UP , the low-cut is ON, when it is DOWN,
the low-cut is OFF.
Phantom
Low Cut
Phantom
Low Cut
Phantom
Low Cut
Phantom
Low Cut
Phan Pwr ON=dwn
Low Cut ON=up
,

SPECIFICATIONS

Input Impedance:
Output Impedance:
THD + Noise:
S/N Ratio:
Frequency Response:
Max Output Level:
Max Input Level:
Max Gain:
Low Cut:
Current Draw:
Phantom Power:
Connectors:
Size:
ROLLS CORPORATION
SALT LAKE CITY, UTAH
Weight:
10/05
MX124
ProMix IV
600 Ohms
XLR 600 Ohms, 1/4" and 1/8" 10 Ohms
.02%
84 dB
25 Hz - 16 kHz (+0 / -3 dB)
+ 14 dB
-14 dB
+55 dB
-3 dB @ 100 Hz
30 mA
+18 VDC
4 Female XLR, 2 Male XLR, 1 1/4" TRS, 1: 1/8" (3.5mm)
DC Power Jack (5.5 X 2.1 mm tip negative)
6.3"w x 3.7"d x 2.3" h

Quick Start Guide

1.5 lbs.
