Rolls RM65b HEXMIX Quick Start Manual

Professional audio mixer

Download this manual

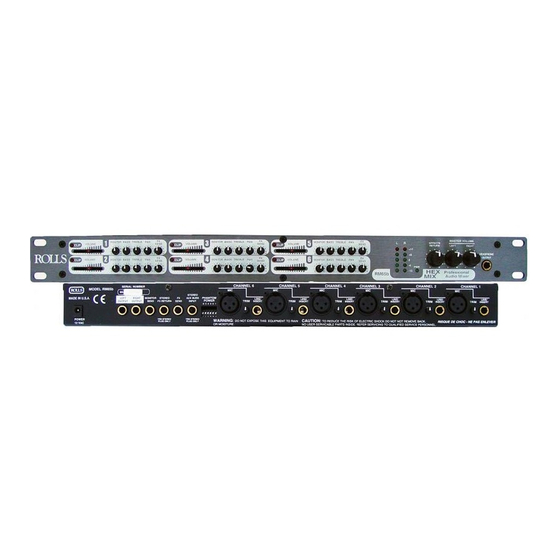

RM65b HEXMIX

Professional Audio Mixer

FEATURES

• 6 XLR and 1/4" Inputs

• 1/4" Inputs may be confi gured as Insert jacks

• Individual 36 V Phantom Power

• Clip LEDs on each channel

• Input Trim, Monitor, FX Send and Pan on each channel

• Treble & Bass control on each channel

• Mono send, stereo return eff ects loop

• Stereo Aux Bus Input

MADE IN THE USA

• Headphone Output

ROLLS CORPORATION

SALT LAKE CITY, UTAH

Quick Start Guide

2/15

Do you have a question about the RM65b HEXMIX and is the answer not in the manual?

Page 1: Quick Start Guide
RM65b HEXMIX Professional Audio Mixer FEATURES • 6 XLR and 1/4” Inputs • 1/4” Inputs may be confi gured as Insert jacks • Individual 36 V Phantom Power • Clip LEDs on each channel • Input Trim, Monitor, FX Send and Pan on each channel •...
Page 2 INTRODUCTION SCHEMATIC Thank you for your purchase of the Rolls RM65b HexMix Professional Audio Mixer. This unit is a breakthrough in size/performance for an audio mixer. It’s a full-function 6 channel mic/line mixer in a single space 19” rack chassis. It is in- tended for sound reinforcement, studio, choir, and other applications where high channel to size ratio is desired.
Page 3: Specifications
60 dB bal/unbal (Monitor): 55 dB POWER: Connects to the Rolls PS12 12VAC, 300mA power adapter. Tone controls: 12 dB treb, bass cut/boost, 1K Hz center 1 - 6 CHANNEL MIC INPUTS: XLR input connectors for mic or line level signals.
Page 4 OPERATION The RM65b is ideal for small combo groups where a small number of instruments and The RM65b may also be used for recording. Connect microphones, instruments, and microphones need to be mixed together. Refer to Figure 2 for an example of how to con- eff ects to the inputs as described above - the connect the Right and Left outputs to your nect the inputs and outputs of your RM65b.
