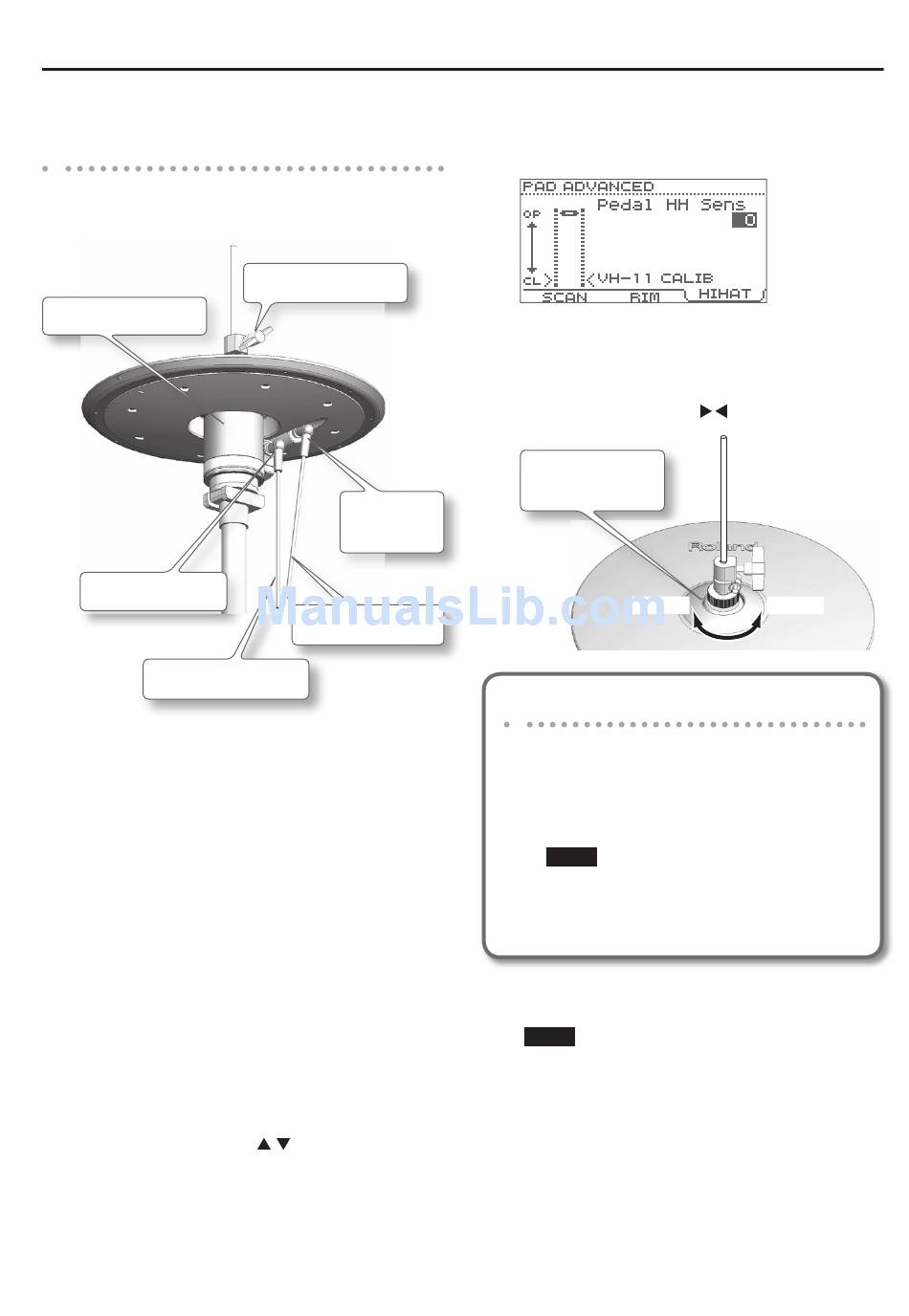

Connecting the VH-11 and making
settings on the TD
Connections
Motion sensor unit
CONTROL OUT jack
Connect the HHC cable
Settings
1.
Make sure that the VH-11 is correctly connected
to the TD .
2.
Set up the hi-hat, take your foot off the pedal,
and power-on the TD .
* It will be impossible to make the adjustment correctly
if the hi-hat is touching the motion sensor when you
turn on the power.
3.
Loosen the clutch screw, and allow the hi-hat to
rest naturally on top of the motion sensor unit .
4.
Proceed up through step 5 of the basic
procedure (p . 34) to access the PAD SETTINGS
screen .
5.
Press the [F1] (TYPE) button .
6.
Use the cursor buttons ( / ) to select "HH . "
7.
Use the value dial to select "VH-11 . "
Clutch screw
TRIGGER OUT
jack
Connect the HH cable
Settings for the Entire TD (SYSTEM)
8.
Press the [F3] (ADVNCD) button, and then press
the [F3] (HIHAT) button .
The following screen will appear.
9.
While you watch the meter that's displayed in
the left side of the screen, turn the VH-11's VH
offset adjustment screw to adjust it .
Adjust the screw so that the appears in the meter.
VH Offset
Adjustment Screw
OPEN
VH Offset Adjustment Points
If the closed hi-hat sound is difficult to attain,
rotate the VH offset adjustment screw towards
"CLOSE. "
If the open hi-hat sound is difficult to attain,
rotate the screw towards "OPEN. "
NOTE
If the sound cuts off when you strike the hi-hat
forcefully, rotate the VH Offset adjustment
screw towards "OPEN. "
10.
Adjust other parameters as needed .
NOTE
If you don't set up the VH-11 correctly, it may not
operate correctly.
CLOSE
