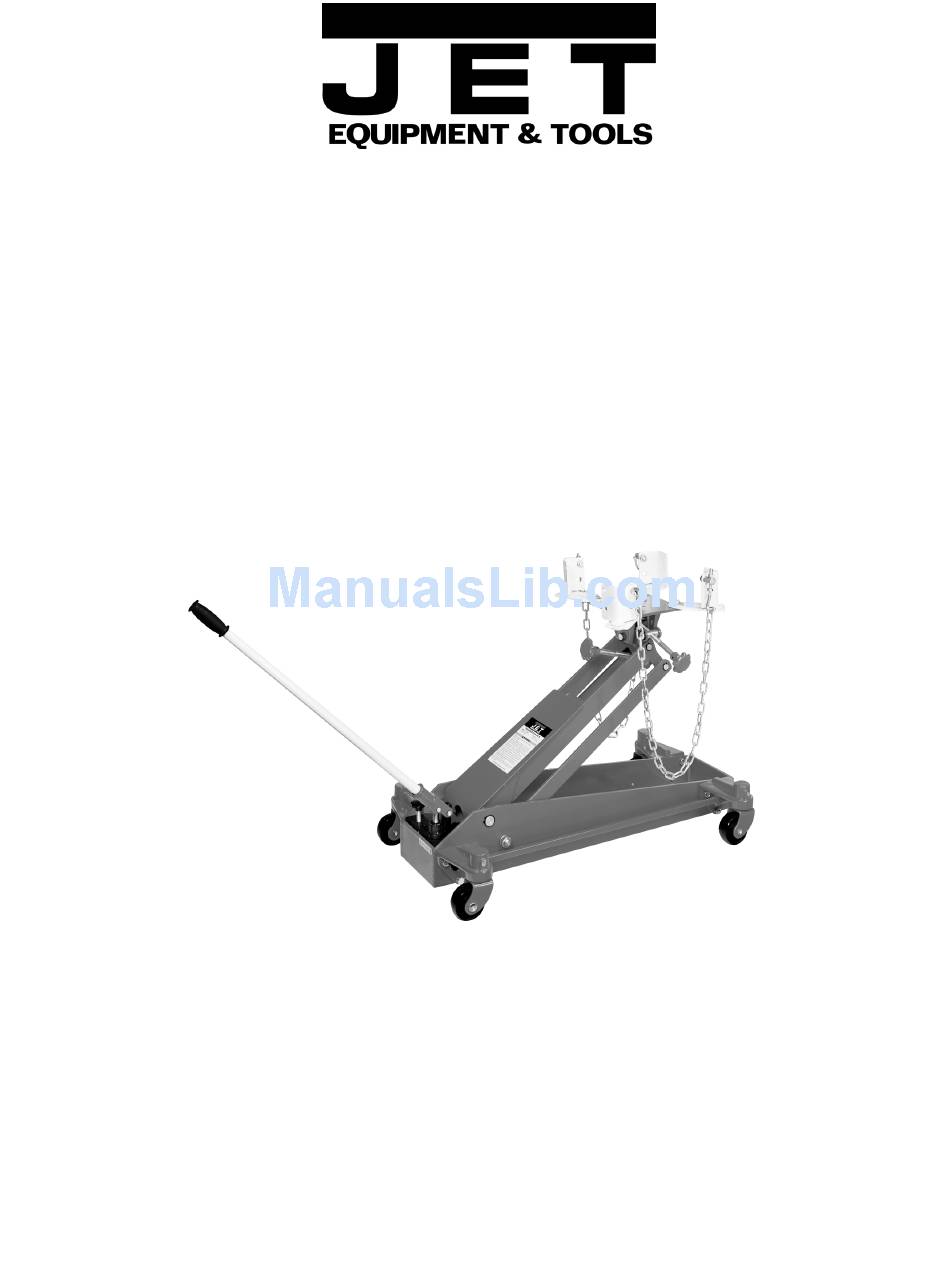

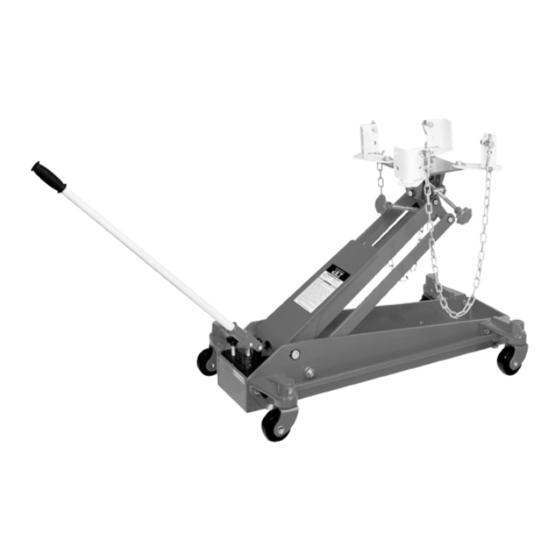

- Page 1 OWNER'S MANUAL TJ-2000X Transmission Jack JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com M-450077 12/01...
- Page 2 Important Information 1-YEAR JET offers a one-year limited warranty on this product LIMITED WARRANTY REPLACEMENT PARTS Replacement parts for this tool are available directly form JET Equipment & Tools. To place an order, call 1-800-274-6848. Please have the following information ready: 1.
- Page 3 WARNING • Read and understand all operating instructions before use. • The vehicle must be properly supported and blocked before starting repairs. • Use a transmission jack of the proper size and capacity to handle the anticipated load. This jack is rated for a maximum load of 2,000 lbs. Do not overload beyond the jack’s rated capacity.
-
Page 4: Specifications
Specifications: TJ-2000X Stock Number..........................450077 Capacity .............................2,000 lbs. Minimum Height ..........................8-1/2” Maximum Height ..........................30-1/2" Sideways Adjustment L/R ......................30°/30° Forward/Backward Tilt ........................60°/17° Saddle Size .........................7-3/4” x 7-3/4” Base Size (LxW).......................... 35" x 19” Net Weight ............................175 lbs. Shipping Weight ..........................184 lbs. - Page 5 Assembly All numbers in parenthesis () refer to the index number from the parts breakdown. 1. Mount the four angle brackets (100) to the saddle (94) using four hex cap screws (102), and four washers (101). 2. Insert four hook guides (91) into the angle bracket holes and tighten using four washers (96) and four hex nuts (95).
- Page 6 JET TJ-2000X Parts Breakdown...
- Page 7 Parts List for JET TJ-2000X Index Part Description Size Quantity 1..TJ2000X-1 ....Handle Grip ..................1 2..TJ2000X-2 ....Pump Handle..................1 3..TJ2000X-3 ....Pin............10x30........1 4..TJ2000X-4 ....Pin............10x30........1 5..TJ2000X-5 ....Socket ....................1 6..TJ2000X-6 ....Snap Ring..........9 ..........1 7..TJ2000X-7 ....
- Page 8 Index Part Description Size Quantity 54 ..TJ2000X-54 ....Wiper * ..........46x6........1 55 ..TJ2000X-55 ....Split Pin..........5x45........1 56 ..TJ2000X-56 ....Link Rod ....................1 57 ..TJ2000X-57 ....Side Plate..................... 1 58 ..TJ2000X-58RF..... Caster Seat Right Front ................ 1 ....TJ2000X-58RR ....
- Page 9 Index Part Description Size Quantity 107 ..TJ2000X-107....Hex Nut ....................1 108 ..TJ2000X-108....Washer....................1 ....TJ2000X-109....Piston Packing Set (incls. 40-48) ................TJ2000X-PA....Pump Assembly (incls. 7-35, 37-54) ..............TJ2000X-PRK ....Pump Repair Kit (incls. 8-10, 18, 27, 38, 40-42, 45, 49, 51, 53, 54) .....* indicates included in pump repair kit...
- Page 10 JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com...
