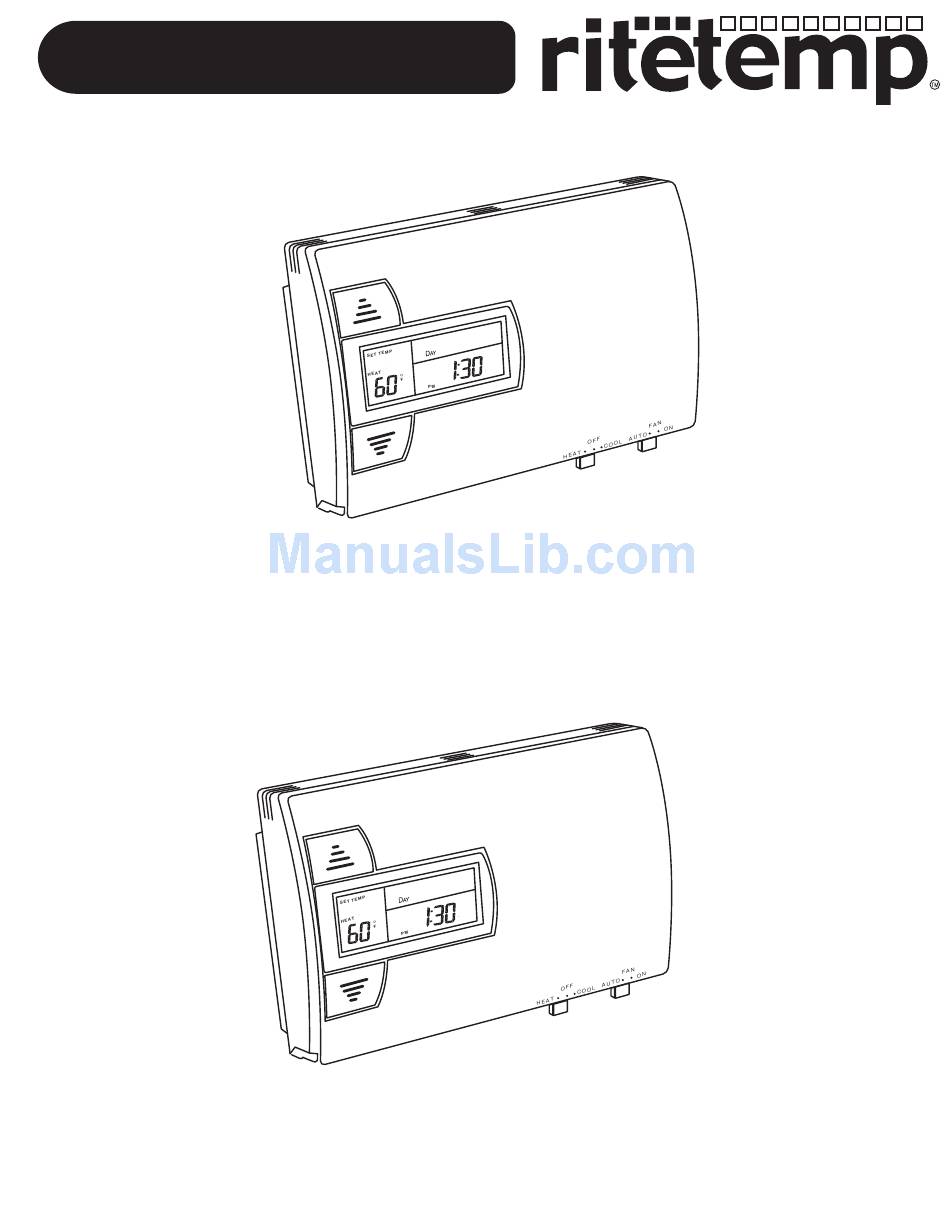

- Page 1 Install guide 8022C Customer Support: 888-515-2585 or 401-014 Visit our website www.ritetemp-thermostats.com...
- Page 2 Install guide 8022C To avoid electrical shock and to prevent damage to the furnace, air conditioner, Caution and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker, or at the appliance. You will need #1 Phillips screwdriver (small) and Tools Drill with 3/16-in.
- Page 3 Fill wall opening with non-combustible insulation to prevent drafts. 3 Mount the 8022C Separate front from back of unit. Press up on the catch on bottom of thermostat and swing the body away from the base, lift up to remove the body from the base.
- Page 4 C wire and this will extend battery life. If you have zoned heating/cooling systems with multiple thermostats. Please refer to the website at www.ritetemp-thermostats.com for installation details or call 1-888-515-2585 for assistance. a c e...
- Page 5 5 Install Batteries The 8022C requires batteries to operate your furnace and retain its programming in memory. Switch MODE switch to OFF and the FAN switch to AUTO.
- Page 6 OPERATING Guide to initialize the new thermostat. 7 Power Options 1) The 8022C can run on batteries only. (2AA Alkaline) 24VAC and MV The batteries will last well over 1 year. If the batteries are not replaced the thermostat will stop working.
- Page 7 a c e F ro m F u rn 2 WIRE Heating STEP 1 - Connect the R (or RH) wire to (GAS MILLIVOLT or 24vac the RH terminal on the thermostat. Thermostat This connects the Heater Power to the thermostat.
- Page 8 a c e F ro m F u rn STEP 1 - Connect the Y wire to the 4 WIRE a n d A C u n Y terminal on the thermostat. This Thermostat connects to the Cooler compressor. STEP 2 - Connect the RH or R wire to the RH terminal on the thermostat.
-
Page 9: Single Stage Heat Pump

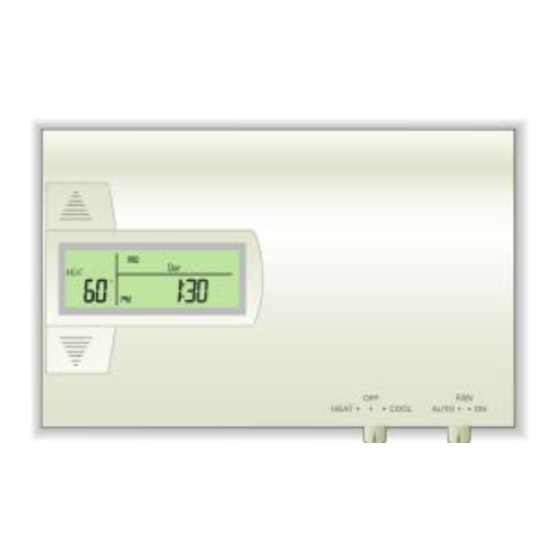

NOTE: Wires marked with the dotted line are optional. 8022C Features The 8022C can be used with most 24 volt gas, oil or electric heating and air conditioning systems, single- stage heat pumps or gas millivolt heating systems. It cannot be used with 120 volt heating systems or multistage heat pumps.
