LED Operation

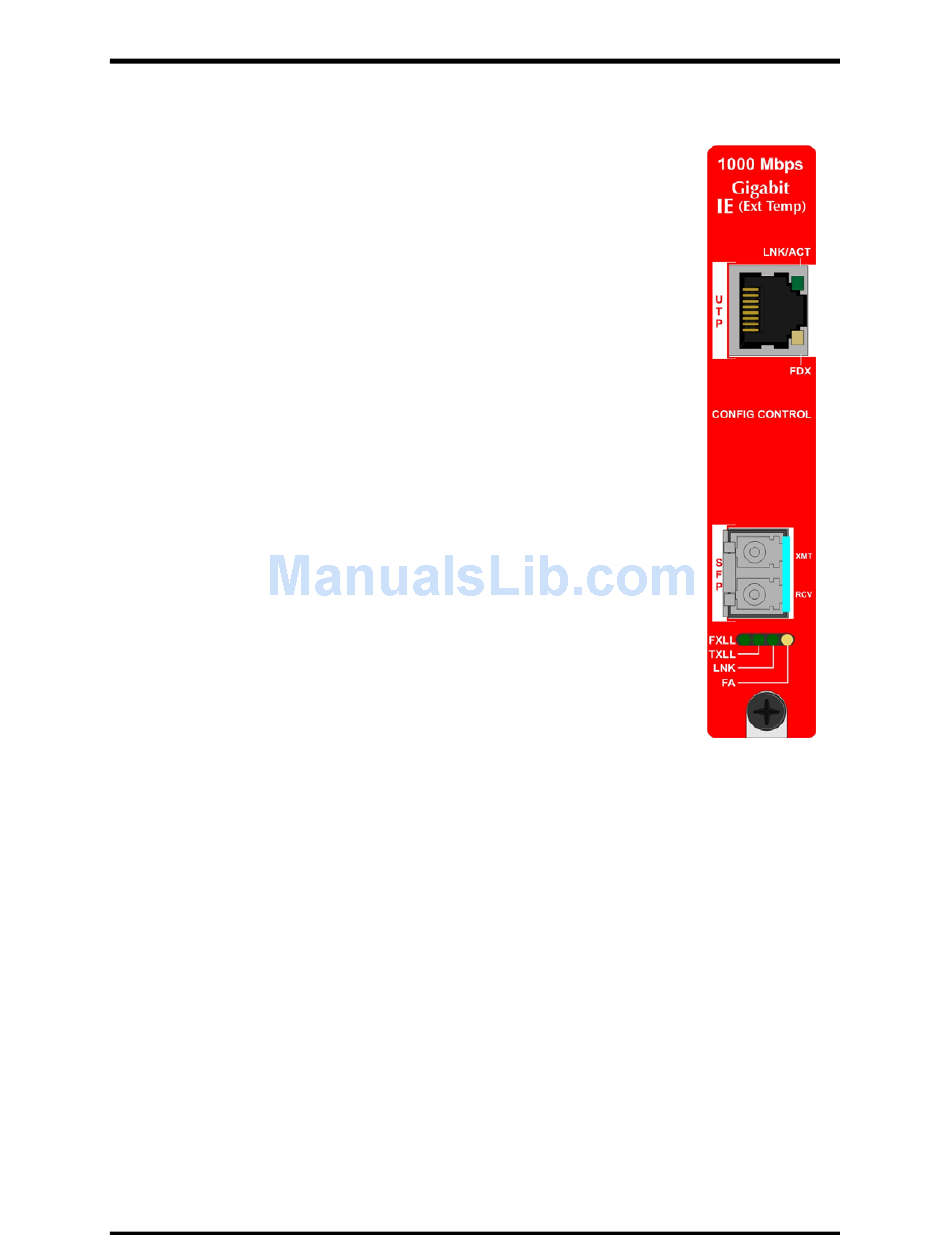

Each IE-iMcV-Gigabit Module features diagnostic LEDs that provide information on
features and ports.
LNK/ACT Glows green when a twisted pair link is established.
Blinks green when activity is detected. Located on RJ-
45 connector.
FDX Glows amber when port is operating in Full-Duplex
Mode on the RJ-45 connector.
FXLL Glows green when FX LinkLoss is enabled on the port.
Blinks when a fault occurs on the fiber port and
actively disables the copper port.
TXLL Glows green when TX LinkLoss is enabled on the port.
Blinks when a fault occurs on the copper port and
actively disables the fiber port.
LNK Glows green when fiber link is established.
FA Glows amber when FiberAlert is enabled.
Blinks when a fault occurs on the RCV fiber line and
actively disables the XMT fiber line.
