Ï ´ º ó ´ ¦ À í

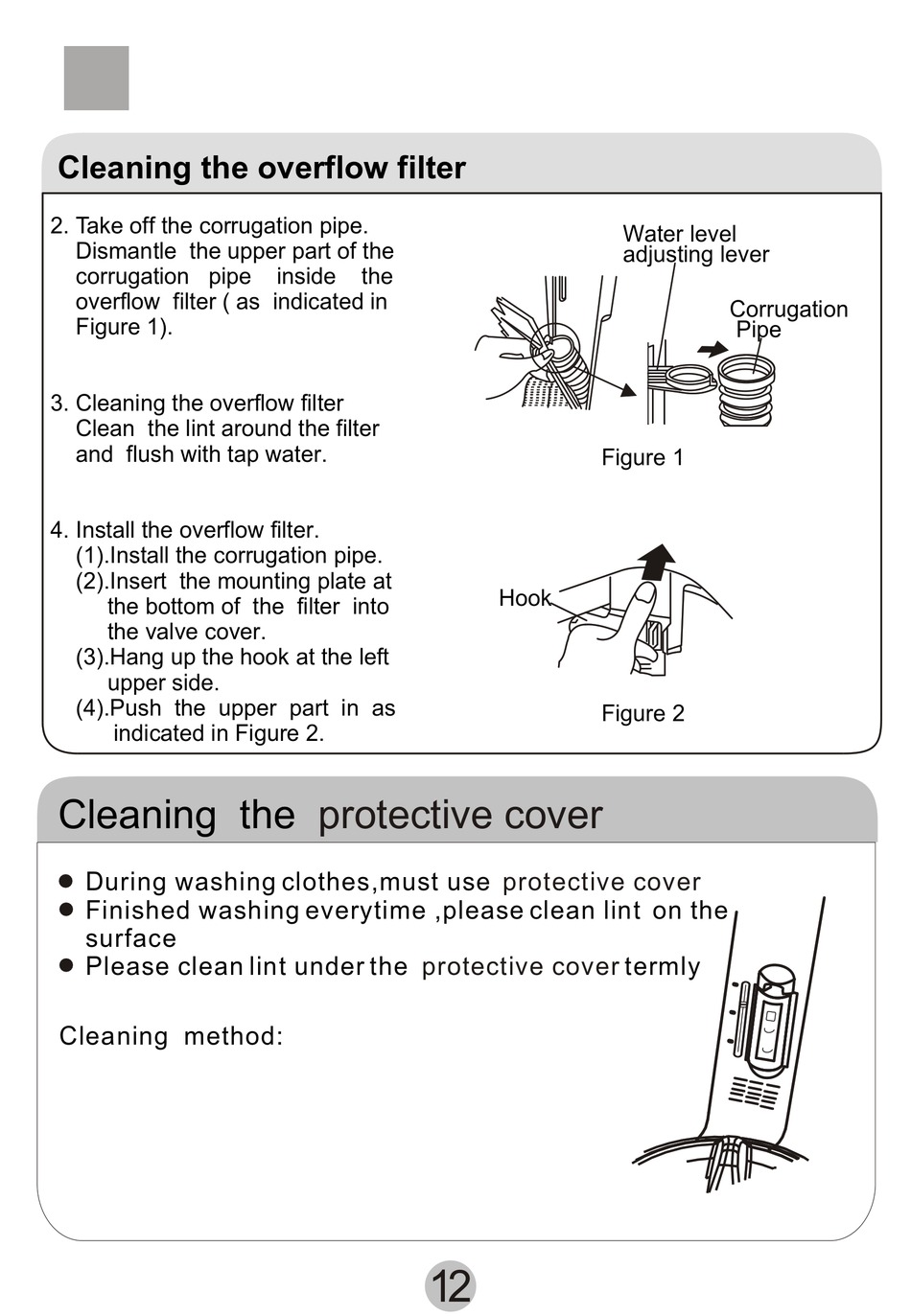

Cleaning the overflow filter

2. Take off the corrugation pipe.
Dismantle the upper part of the
corrugation pipe
overflow filter ( as indicated in
Figure 1).
3. Cleaning the overflow filter
Clean the lint around the filter
and flush with tap water.
4. Install the overflow filter.
(1).Install the corrugation pipe.
(2).Insert the mounting plate at
the bottom of the filter into
the valve cover.
(3).Hang up the hook at the left
upper side.
(4).Push the upper part in as
Ï ´ º ó ´ ¦ À í
indicated in Figure 2.
Cleaning the
During washing clothes,must use
Finished washing everytime ,please clean lint on the
surface
Please clean lint under the
Cleaning method:
inside
the
protective cover
protective cover
12
Water level
adjusting lever
Figure 1
Hook
Figure 2
protective cover
termly
Corrugation
Pipe
