Page 1: Operation Manual

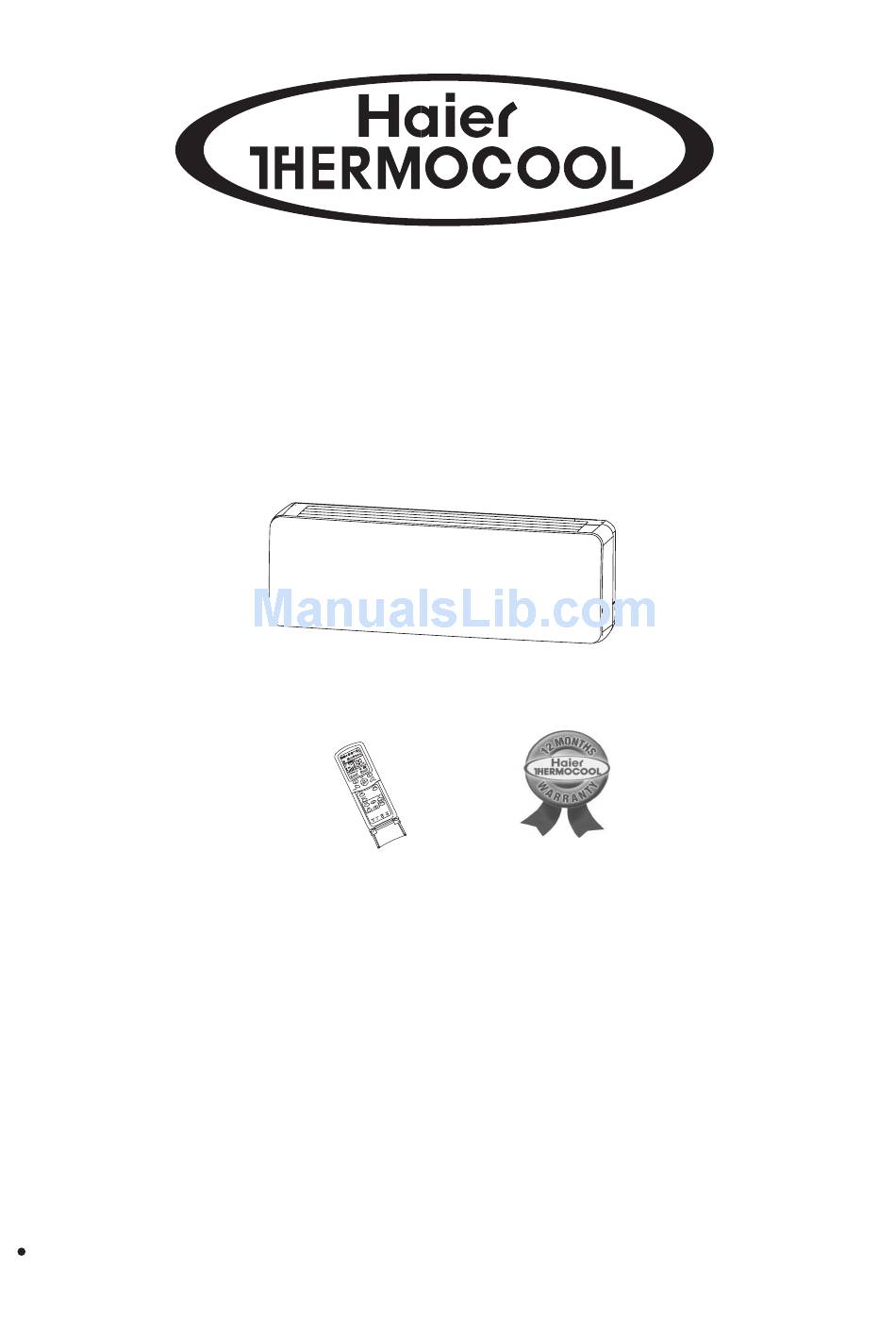

OPERATION MANUAL HSU-12HQA03/R2(DB) Please read this operation manual before using the air conditioner 0010538206... -
Page 3: Table Of Contents
Contents Parts and functions Operation Maintenance Cautions Trouble shooting... -
Page 4: Parts And Functions
Parts and Functions Indoor Unit Remote controller 9. ON/OFF button 10. TIMER ON display Air Purifying Inlet 11. FAN SPEED display Filter Anion generator (inside) Inlet AUTO grille 12. LOCK display 13. SWING display Vertical blade 14. SLEEP display (adjust left and Nano-Aquo 15. -
Page 5: Operation
Operation Base Operation Emergency operation and test operation Emergency Operation: Use this operation only when the remote controller Remote controller is defective or lost. When the emergency operation switch is pressed,the" Pi "sound is heard once, which emergency operation means the start of this operation. -
Page 6: Sleep Operation
Operation Sleep Operation In AUTO mode The unit operaters in corresponding sleep mode Before going to bed,you can simply press the SLEEP adapted to the automatically selected operation button and unit will operate in SLEEP mode and bring mode. you a sound sleep. 4. -
Page 7: Healthy Airflow Operation
Operation Timer On/Off On-Off Operation Healthy airflow Operation 1.Press ON/OFF to starting Set clock correctly before starting TIMER operation. Setting the comfort work conditions. 1.After unit starts, select your desired operation mode. 2.The setting of healthy airflow function 2.Press TIMER button to change TIMER mode. Every 1).Press the button of healthy airflow , appears on the time the button is pressed, display changes as follows:... -
Page 8: Maintenance
Maintenance For Smart Use of The Air Conditioner Indoor Body Remote Controller Setting of proper room Do not block the air inlet temperature or outlet wipe the air conditioner by using a Proper temperature soft and dry cloth.For serious stains, use a neutral detergent diluted with Do not usewater,wipe the controller water.Wring the water out of the... -
Page 9: Cautions
Cautions WARNING Please call Sales/Service Shop for the Installation. Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage. WARNING Check proper When abnormality such as burnt-small found, Use an exclusive immediately stop the operation button and installation of the power source... -
Page 10: Trouble Shooting
Trouble shooting Cautions Before asking for service, check the following Do not obstruct or cover the ventilation grille of the air first. conditoner.Do not put fingers or any other things into the inlet/outlet and swing louver. Do not allow children to play with the air conditioner .In no Phenomenon Cause or check points... -
Page 11: Specifications
Builtt o withstand Voltage F lunctuations Anti Electric Shock CLASS I Tropicalised Electrostatics F i l ter Bacteria killing UV ray Note: All capacities are gross. HAIER-THERMOCOOL reserves the right to change specifications as part of its policy of continuous improvement. -
Page 12: Electrical Diagram
Electrical Diagram 12k wiring diagram of split unit indoor LEFT STEP MOTOR RIGHT STEP MOTOR LEFT PANEL MOTOR RIGHT PANEL MOTOR UP-DOWN STEP MOTOR INDOOR FAN MOTOR WATER ION GENERATOR DISPLAY BOARD EMERGENCY SWITCH WIRELESS NET MODULE TO BILATERAL FRESH AIR MOTOR HP1 B HP2 W NET APPLIANCE MODULE... - Page 13 Electrical Diagram 12k wiring diagram of split unit indoor WARNING MODULE BOARD CAUTION CN9 CN8 DON'T TOUCH CAPACITOR, EVEN AFTER PLUG-OFF ( DANGER OF ELECTRIC SHOCK) AC-N AC-L The capacitor retains high CN11 CN10 voltage even after the plug-off. W V U For your safety, be sure to wait at least 5 minutes.
- Page 16 With 3 years warranty on all air- conditioner compressors, you have peace of mind from the date of purchase NATIONWIDE SALES AND SERVICES MINNA,ILORIN,OSHOGBO,LOKOJA, AKURE,SOKOTO,YOLA,MAKURDI,GUSAU, sales office 2719790...
