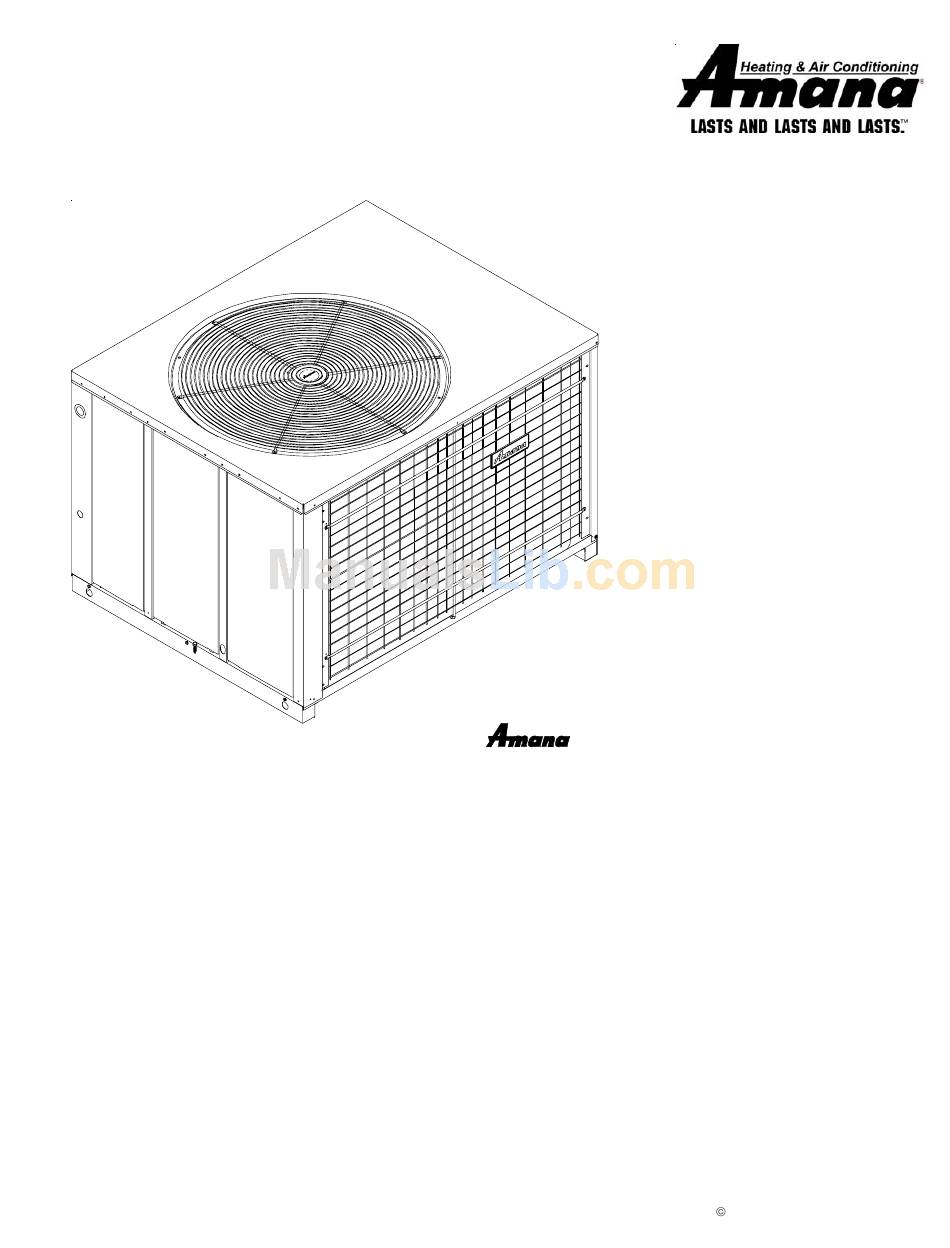

- Page 1 Goodman Company, L.P. All rights reserved. *NOTE: Please contact your distributor or our website for the applicable product data book referred to in this Goodman Company, L.P. www.amana-hac.com is a trademark of Maytag Corporation and is used under ® 2000-2004 Goodman Company, L.P.
- Page 2 ECOGNIZE AFETY YMBOLS ORDS The following symbols and labels are used throughout this manual to indicate immediate or potential safety hazards. It is the owner’s and installer’s responsibility to read and comply with all safety information and instructions accompanying these symbols. Failure to heed safety information increases the risk of personal injury, property damage, and/or product damage.
- Page 3 ADEQUATE CABLE SLING. IMPORTANT: If using bottom discharge with roof curb, ductwork should be attached to the curb prior to installing the unit. Ductwork dimensions are shown in Amana tions. Refer to the Roof Curb Installation Instructions for proper curb in- stallation.
- Page 4 Fork Lift From Back Of Unit Rigging DUCT CONNECTIONS ORIZONTAL IRFLOW NSTALLATIONS (24, 30, 36, 42 PHB48 M ODELS Two three-inch collar connections and two square flanges are shipped with the unit. The collar connections are located in the return air opening of the unit.
- Page 5 Low Voltage Terminal Strip Low Voltage Connection Heater Kit Control Box Low Voltage Connection Unit Control Box GND-75 THERMOSTAT SEQUENCER #1 10KW Field Connection Refer to the unit wiring diagram (see back of manual) for electrical connections. When installed, the unit must be electrically grounded in accordance with local codes or in the absence of local codes, with the National Electrical Code, ANSI/NFPA No.
- Page 6 Remove Loosen Duct Removal 3. Remove the clamp securing the blower assembly to the bottom of the unit. Discard clamp and screws. Clamp Removal 5. Rotate the blower assembly 90° clockwise, setting the blower assembly outlet on the panel removed from bottom of the unit.
- Page 7 The outlet duct should be provided with an access panel. For vertical airflow, the ductwork should be attached to the roof curb prior to installing the unit. Ductwork dimensions are shown in the Amana ® PRC roof curb installation manual.
- Page 8 LOW RETURN AIR TERMPERATURES AND EXPOSURE TO CORROSIVE OR VERY DIRTY ATMOSPHERES. OMPRESSOR ROTECTION EVICES This package heat pump unit compressor includes components which are designed to protect the compressor against abnormal operating conditions. PERATING 1. Turn ON the electrical power supply to the unit.
- Page 9 ACCESSORIES Horizontal Duct Covers (CHK001A) Single Point Power Connections (SPK**A) Roof Curb - Heat Pump (PRC06A1) Roof Curb - Universal (PRC08A1) Over-Under to Side by Side (PDTROU4A) Over-Under to Side by Side (PDTROU6A) Additional accessories, as described above, can be purchased to fit specific application needs.
- Page 10 PHB[24-36]C02* XFMR R XFMR C...
- Page 11 PHB[42-48]C02** XFMR R XFMR C...
- Page 12 PHB60 / PHD48C02** Y/Y2 EM/W2 (OPTIONAL) INDUCTOR...
- Page 13 PHD[24-36]C02** XFMR R XFMR C...
- Page 14 PHD42C02** Y/Y2 EM/W2 Y/Y2 EM/W2...
- Page 15 PHD60C02** Y/Y2 EM/W2 (OPTIONAL) INDUCTOR...
- Page 16 PHB[24-36]CC2**...
- Page 17 PHD[24-36]CC2**...
- Page 18 CLEARANCES WARNING O AVOID PROPERTY DAMAGE DUE TO FIRE CLEARANCES TO COMBUSTIBLE SURFACES LISTED AS SHOWN MUST BE OBSERVED PERSONAL INJURY OR DEATH 24" Clearance (Condenser End) Minimum 9" Clearance to Combustibles 36" Clearance for Service Required 36" Maximum Overhang 48"...
- Page 20 2000-2004 Goodman Company, L.P. Effective: July 2004...
