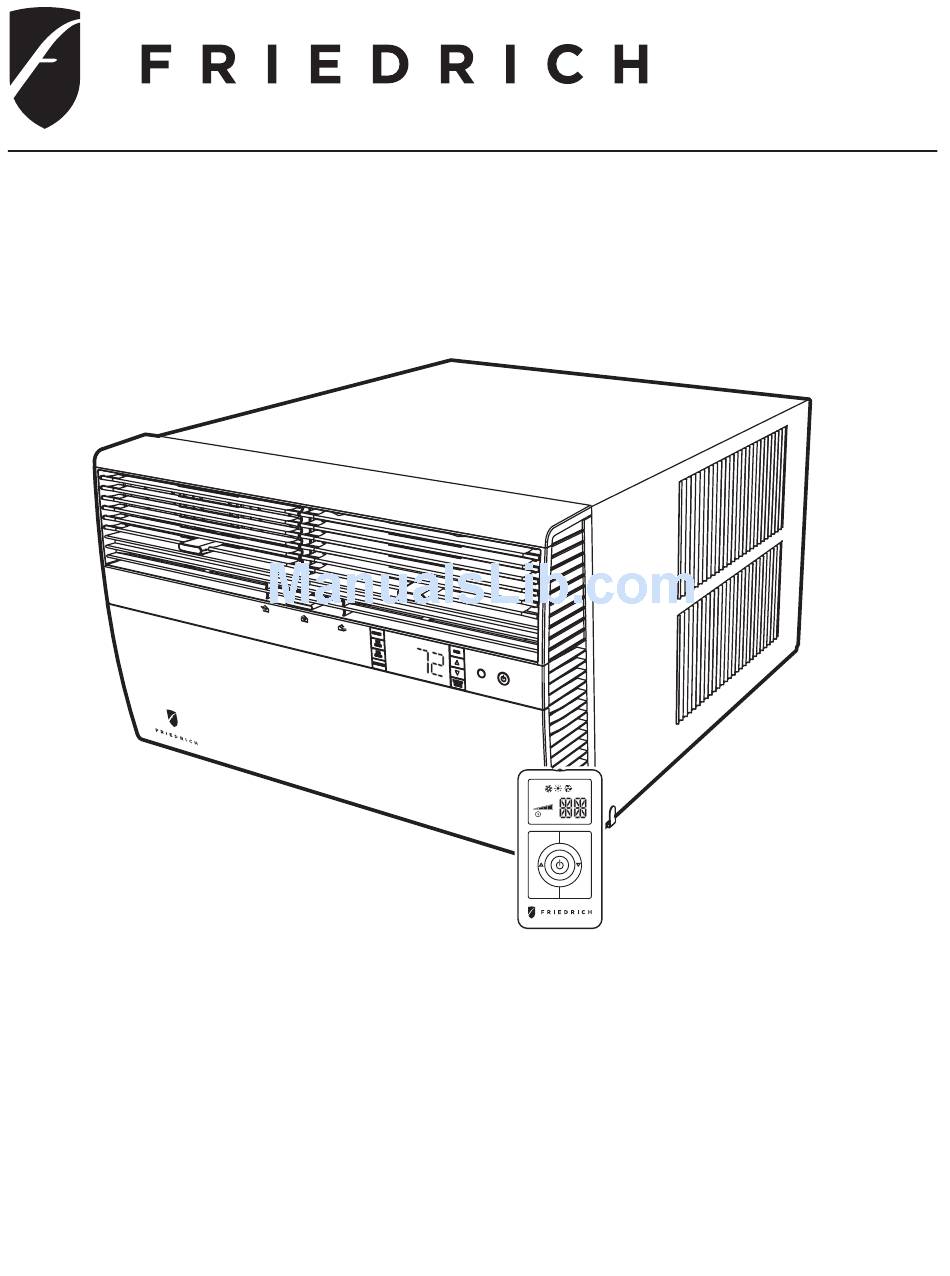

- Page 1 2010 Room Air Condi t ione r Parts Manual – R-410 A Model s AUTO °F °C AUTO CONTINUOUS AUTO SYSTEM FAN MODE SCHEDULE FAN SPEED Kühl + XStar ® Kühl Parts (2-11)
-
Page 2: Table Of Contents
Table of Contents Unit Identification ........... XStar Unit Exploded Diagram ......® XStar Sleeve Exploded Diagram ......® XStar Parts List ..........® Kühl Unit Exploded Diagram ........Kühl Sleeve Exploded Diagram ......Kühl Small Chassis Parts List ......9-10 Kühl Medium Chassis Parts List ..... -
Page 3: Unit Identification
Unit identification Model Number Code S S 08 M 1 0 A 8th Digit – Engineering Major change 1st Digit – Function S = Straight Cool, Value Series Y = Heat Pump E = Electric Heat 7th Digit – Options 0 = Straight Cool &... -
Page 4: Xstar ® Unit Exploded Diagram
XStar Unit exploded diagram ®... -
Page 5: Xstar ® Sleeve Exploded Diagram
XStar Sleeve exploded diagram ®... -
Page 6: Xstar ® Parts List
XStar ® Parts List REF NO. PART NO. DESCRIPTION 61896026 CONDENSER COIL 61600271 EVAPORATOR COIL 62050024 EVAPORATOR COIL 62050026 EVAPORATOR COIL 61717103 COMPRESSOR KIT 61717101 COMPRESSOR KIT 61717102 COMPRESSOR KIT 61717105 COMPRESSOR KIT 61717104 COMPRESSOR KIT 61717154 COMPRESSOR KIT 03760502 CAPILLARY TUBE 03760545 CAPILLARY TUBE... -
Page 7: Xstar ® Parts List
CONTROL DECORATIVE PLATE/PANEL 25066200 WIRE INSULATOR STR-LG 61900500 HOLDER T-STAT SENSOR 61925001 HOLDER, THERMISTOR 61031040 GASKET 60169120 SCRIPT FRIEDRICH 2010 "FESTOON" 91002900 SPEEDNUT PUSH TYPE 61031049 GASKET,FOAM PLSTC PRESS/SENS 61778700 BAG ASY PLSTC SQ-KQ-XQ 61778701 BAG ASY PLSTC YQ & EQ08 60073300... -
Page 8: Kühl Unit Exploded Diagram
Kühl Unit exploded diagram... -
Page 9: Kühl Sleeve Exploded Diagram
Kühl Sleeve exploded diagram... -
Page 10: Kühl Small Chassis Parts List
Kühl Small chassis Parts List REF NO. PART NO. DESCRIPTION 61850323 CONDENSER COIL 61850340 CONDENSER COIL 62050304 CONDENSER COIL 61850110 EVAPORATOR COIL 61850117 EVAPORATOR COIL 61850118 EVAPORATOR COIL 61850123 EVAPORATOR COIL 62050032 EVAPORATOR COIL 61717102 COMPRESSOR KIT 61717115 COMPRESSOR KIT 61717120 COMPRESSOR KIT 61717116... -
Page 11: Kühl Small Chassis Parts List
OUTER SHELL ASY SMALL PKWIKS WINDOW INSTALLATION KIT 61611700 REAR GRILLE MOUNTING BRACKET 61818520 PAINTED REAR GRILLE 60169120 SCRIPT FRIEDRICH FOR REAR GRILLE 91002900 PUSH NUT FOR FRIEDRICH SCRIPT 61818900 HEATER MOUNTING BRACKET 61812900 SHIELD BOTTOM S/M 3R 61812901 SHIELD BOTTOM S/M 4R... -
Page 12: Kühl Medium Chassis Parts List
Kühl Medium chassis Parts List REF NO. PART NO. DESCRIPTION 61850227 CONDENSER COIL 61850228 CONDENSER COIL 61850108 EVAPORATOR COIL 62050030 EVAPORATOR COIL 62050034 EVAPORATOR COIL 61717118 COMPRESSOR KIT 61717119 COMPRESSOR KIT 61717131 COMPRESSOR KIT 61717121 COMPRESSOR KIT 25022032 REVERSING VALVE + SOLENOID KIT 61824405 CHECK VALVE 03760500... -
Page 13: Kühl Medium Chassis Parts List
LEFT SIDE PANEL PKWIKM WINDOW INSTALLATION KIT 61611701 REAR GRILLE MOUNTING BRACKET 61818521 PAINTED REAR GRILLE 60169120 SCRIPT FRIEDRICH FOR REAR GRILLE 91002900 PUSH NUT FOR FRIEDRICH SCRIPT 61818900 HEATER MOUNTING BRACKET 61812900 SHIELD BOTTOM S/M 3R 61812901 SHIELD BOTTOM S/M 4R... -
Page 14: Kühl Large Chassis Parts List
Kühl Large Chassis Parts List REF NO. PART NO. DESCRIPTION 61850235 CONDENSER COIL 61850238 CONDENSER COIL 62050221 CONDENSER COIL 61896305 EVAPORATOR COIL 62050004 EVAPORATOR COIL 62050031 EVAPORATOR COIL 61717131 COMPRESSOR KIT 61717130 COMPRESSOR KIT 61717132 COMPRESSOR KIT 25022032 REVERSING VALVE + SOLENOID KIT 61824405 CHECK VALVE 03760511... -
Page 15: Kühl Large Chassis Parts List
LEFT SIDE PANEL PKWIKL WINDOW INSTALLATION KIT 61611702 REAR GRILLE MOUNTING BRACKET 61818522 PAINTED REAR GRILLE 60169120 SCRIPT FRIEDRICH FOR REAR GRILLE 91002900 PUSH NUT FOR FRIEDRICH SCRIPT 61818900 HEATER MOUNTING BRACKET 61813501 SHIELD BOTTOM LRG 4R 61821900 SHIELD HEAT LRG... - Page 16 TECHNICAL SUPPORT CONTACT INFORMATION FRIEDRICH AIR CONDITIONING CO. 10001 Reunion Place, Suite 500 San Antonio, Texas 78216 (210) 546-0500 · 877-599-5665 · FAX (210) 546-0731 Email: tac@friedrich.com www.friedrich.com Printed in the U.S.A. Printed in the U.S.A. Kühl Parts (2-11)
