4. Configure a HUI controller for each Artist media controller in your network
(up to four).
5. Select HUI from the Type drop-down box for each controller to configure.
6. Configure each controller to have the input and output MIDI ports set for Pro
Tools in the Euphonix Preferences Pane. Click on the Receive From and Send
To drop-down menus, hover over Predefined, then select from the Euphonix
MIDI ports.
For example, if you set Pro Tools to use MIDI ports 1–4, your first HUI con-
troller's receive and transmit ports should be set to EphMIDIEP1.

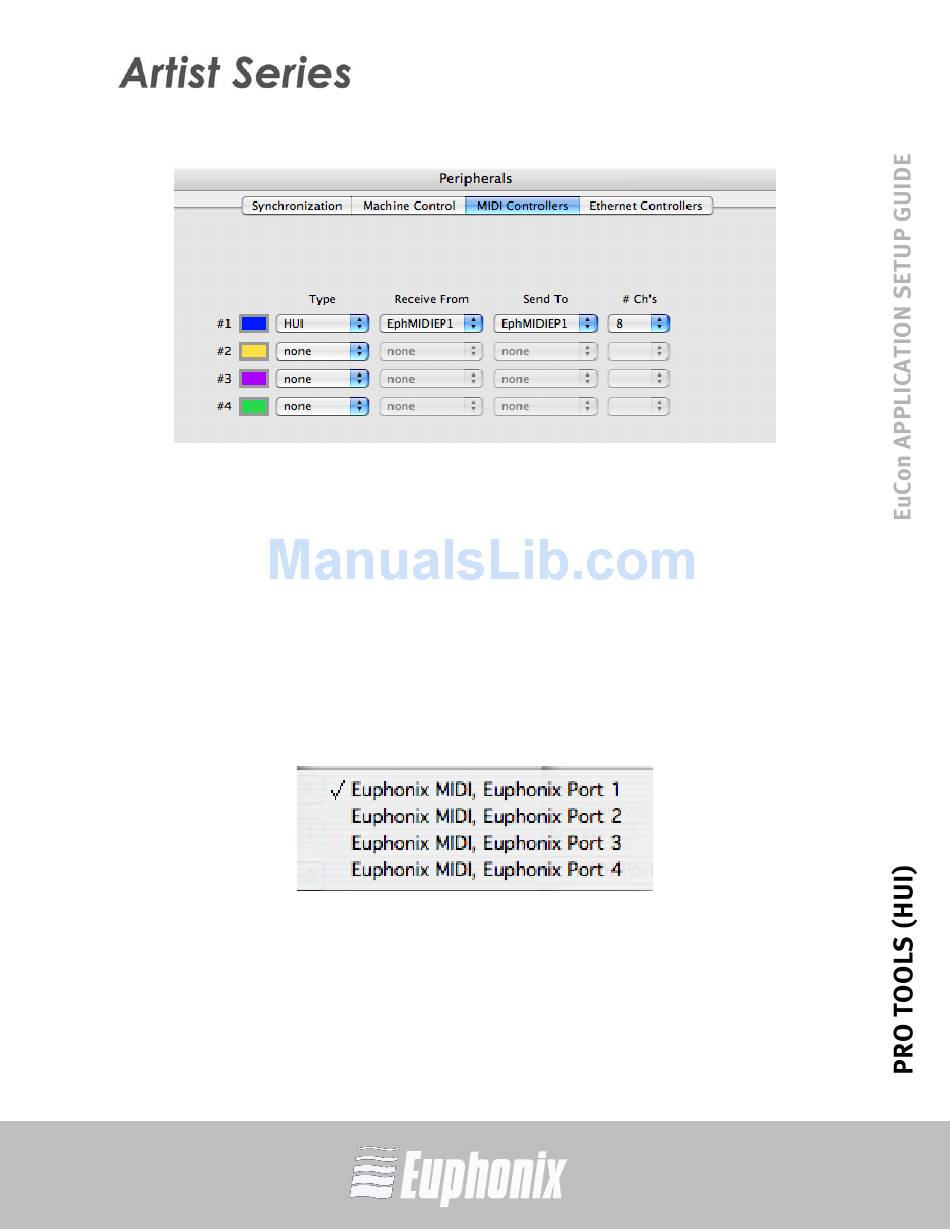

Figure 9-4 Pro Tools Peripherals dialog
Figure 9-5 Excerpt from Pro Tools MIDI menu
