TM
Product features may vary from the picture above.
™
Camp BARBIE
Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 74780
Tools needed for assembly: Phillips Screwdriver, Hammer, Slotted Screwdriver, and Safety Scissors.
Use only with a Power Wheels
®
Type H 6 Volt (6.0 Amp/hr.) Battery, a Power Wheels
®
25 Amp Fuse
and a Power Wheels
®
Type H 6 Volt Charger (all included).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Power Wheels CAMP BARBIE 74780
Summary of Contents for Power Wheels CAMP BARBIE 74780

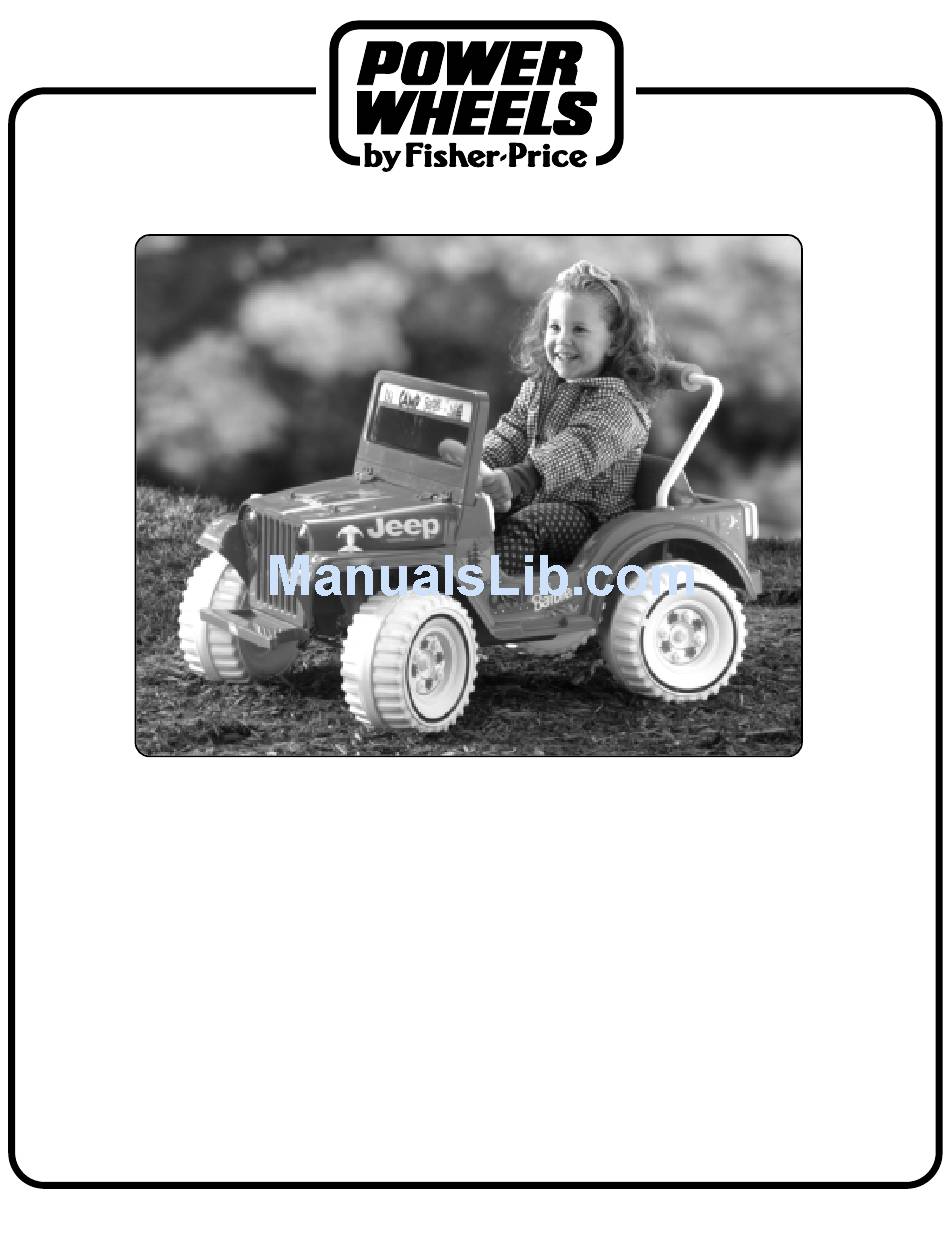

- Page 1 Product features may vary from the picture above. ™ Camp BARBIE Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt. For Model 74780 Tools needed for assembly: Phillips Screwdriver, Hammer, Slotted Screwdriver, and Safety Scissors. Use only with a Power Wheels ®...
-
Page 2: Table Of Contents
Important Information ..............2 Warnings . -
Page 3: Warnings
• Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. -
Page 4: Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 5 Parts Grille Sport Bar Taillight Lens Set Sport Bar Cover Set Spark Plug Wires Taillight Housing Set Steering Column Headlight Lens - 2 Traction Band - 4 Radiator Sheet Gas Cap Assembly...
- Page 6 Parts Key Assembly Small Parts Bag 6-Volt Charger Microphone Radio Dial 25 Amp Fuse - 2* Shifter 6 Volt Battery Steering Wheel Cap Radio Knob - 2 Not Shown: Label Sheet, Literature Bag #8 x 1" Screw (blunt) – 12 #6 x "...
-
Page 7: Parts Diagram
Vehicle Body Steering Column Grille Sport Bar Sport Bar Cover Set Taillight Lens - 2 Taillight Housing - 2 Headlight Lens - 2 Radiator Sheet Spark Plug Wires Traction Band - 4 6 Volt Charger Gas Cap Assembly Pretend Engine Cover Parts Diagram Windshield Windshield Frame... -
Page 8: Battery Charging
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury. • Never allow children to charge the battery. Battery charging must be done by adults only. A child could be injured by the electricity involved in charging the battery. -
Page 9: Battery Charging
• Your new battery must be charged for at least 18 hours before you use it in your vehicle for the first time. • We recommend that you start charging your battery before beginning assembly of your new vehicle. • The battery must be upright while charging. •... -
Page 10: Assembly
Do not omit any steps. Please set aside at least Vehicle Body Dash • Insert two #8 x 1” screws through the holes in the dash and into the vehicle body. • Tighten the screws with a Phillips screwdriver. Do not over-tighten. - Page 11 Steering Wheel • Fit the steering wheel cap into the center of the steering wheel with the screw holes aligned. • Insert two #8 x 1” screws into the holes in the steering wheel cap. • Tighten the screws with a Phillips screwdriver. Do not over-tighten.
- Page 12 Microphone Plastic Hole • Bend the plastic tip at the end of the microphone cord to form a “T”. • Insert the plastic tip into the small hole in the left side of the vehicle body. Pull gently on the cord to make sure it is secure in the dash.
- Page 13 Grille • Raise the hood. • Fit the tabs at the bottom of the grille into the slots in the vehicle body. • Press near the top of the grille to snap it into the vehicle body. Vehicle Body • Slide the radiator sheet behind the grille. •...
- Page 14 Screw Tips Sport-Bar • Align the tips of the screws with the holes in the other half of the sport bar cover and fit the two sport bar cover halves together. • Tighten the screws with a Phillips screwdriver. Do not over-tighten.
- Page 15 Ridge Wheel Bottom View • Turn the vehicle on its side. • Fit a traction band around a wheel. • Slide a slotted screwdriver under the traction band to push the traction band onto the ridge in the center of the wheel.
-
Page 16: Battery Installation/Pretend Engine Assembly
Battery Installation/Pretend Engine Assembly Hood • Lift the hood. • Place the battery in the battery compartment. Make sure that the battery connector extends toward the motor har- ness connector. Motor Harness Connector • Squeeze the tabs on each side of the motor harness connector. -
Page 17: Battery Care And Disposal
Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. If acid is internally ingested, give water, milk of magne- sia or egg whites immediately. -
Page 18: Rules For Safe Driving
WARNING • Adult supervision is required. Children do not have the judgement necessary to avoid many accidents. Be sure that children operating this vehicle can do so safely and that they are supervised at all times. • Never use near steps, driveways, steep inclines, roadways, alleys, swimming pool areas or other bodies of water. -
Page 19: How To Operate Your Vehicle
How to Operate Your Vehicle To Drive • Push the top button (FWD) on the FORWARD/REVERSE switch to set the vehicle to drive forward • Press down on the foot pedal forward at a maximum of 2 • Help your child practice steering to learn how far and how quickly to turn the steering wheel when driving forward. -
Page 20: Problems And Solutions Guide
Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels the Authorized Service Center list beginning on page 24. -
Page 21: Problem Possible Cause
Problems and Solutions Guide Problem Vehicle was running but Loose wire or loose connectors suddenly stopped Wrong type or improperly installed fuse Blown fuse Vehicle is overloaded Driving conditions are too stressful Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge... - Page 22 Problems and Solutions Guide Problem Vehicle runs sluggishly Undercharged battery Battery needs charging Wrong type or improperly installed fuse Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Sometimes the vehicle doesn’t Loose wire or loose connectors run but other times it does Motor or electrical switch damage...
- Page 23 Problems and Solutions Guide Problem Vehicle constantly blows fuses Wrong type of fuse used Child is switching between FORWARD and REVERSE without stopping. Loud clacking or grinding Broken gears noise from a motor-gearbox Charger gets warm during use It is normal for some chargers to get warm during use and is not reason for concern.
-
Page 24: Statement Of Limited Warranty
Statement of Limited Warranty 90-day limited warranty for the Power Wheels Ride-On Toy Vehicle ® A 6-month battery warranty applying only to the 6 volt battery which was included by Power Wheels ® , with the Power Wheels cle when originally purchased. This limited warranty covers the Power Wheels ride-on vehicle and the 6 volt battery, purchased from Power Wheels... - Page 25 ALABAMA BIRMINGHAM - Frigid Service & Sales, 701 Graymont Ave. North, 35203, (205) 323-5831 BIRMINGHAM - Frigid Service & Sales, 1861 Centerpoint Rd., 35215, (205) 853-3952 BIRMINGHAM (HOMEWOOD) - D & R Appliance Company, 154 West Valley Ave., 35209, (205) 942-3959 DECATUR - Peddler II, 1000 B Beltline Road, 35603, (205) 350-1044 DOTHAN - Bill’s Appliance Service, 208 Bic Road,...
- Page 26 ALABAMA BIRMINGHAM - Frigid Service & Sales, 701 Graymont Ave. North, 35203, (205) 323-5831 BIRMINGHAM - Frigid Service & Sales, 1861 Centerpoint Rd., 35215, (205) 853-3952 BIRMINGHAM (HOMEWOOD) - D & R Appliance Company, 154 West Valley Ave., 35209, (205) 942-3959 DECATUR - Peddler II, 1000 B Beltline Road, 35603, (205) 350-1044 DOTHAN - Bill’s Appliance Service, 208 Bic Road,...
- Page 27 ALABAMA BIRMINGHAM - Frigid Service & Sales, 701 Graymont Ave. North, 35203, (205) 323-5831 BIRMINGHAM - Frigid Service & Sales, 1861 Centerpoint Rd., 35215, (205) 853-3952 BIRMINGHAM (HOMEWOOD) - D & R Appliance Company, 154 West Valley Ave., 35209, (205) 942-3959 DECATUR - Peddler II, 1000 B Beltline Road, 35603, (205) 350-1044 DOTHAN - Bill’s Appliance Service, 208 Bic Road,...
- Page 28 JEEP and the Jeep grille design are registered trademarks of CHRYSLER CORPORATION U.S.A. used under license. © CHRYSLER CORPORATION 1995. ©1998 Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 - All Rights Reserved Printed in the U.S.A. 74780...
